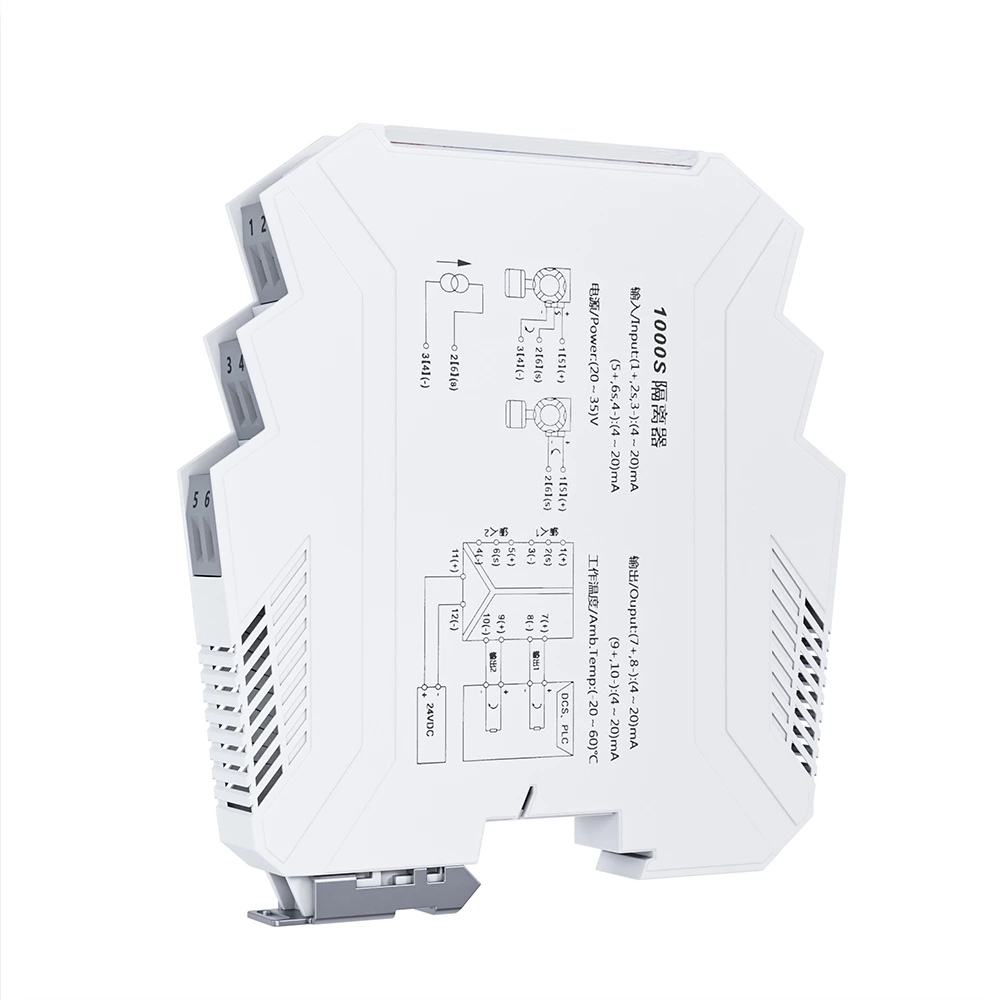

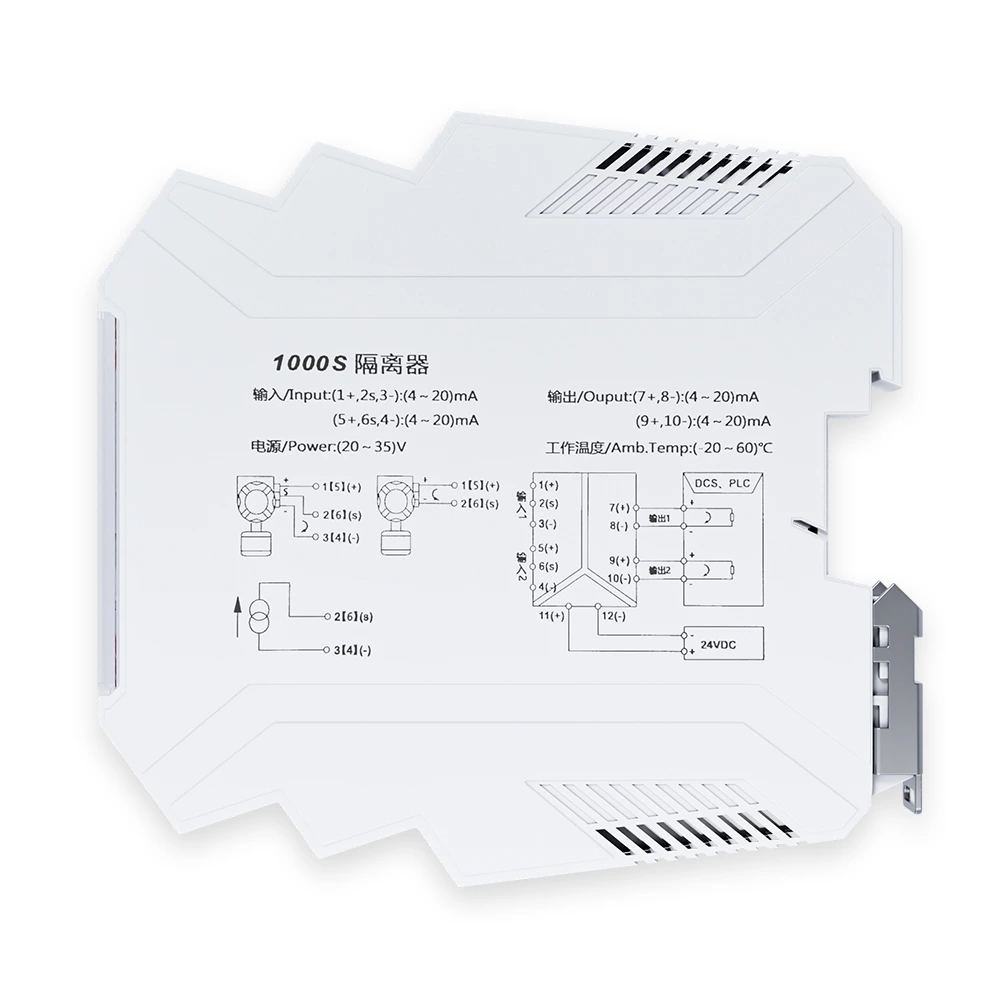

The isolator provides isolated working power to 2-wire and 3-wire transmitters, isolating and converting the current signal generated by the transmitter into signals required by other instruments. It achieves three-terminal isolation between input, output, and power, thereby improving the industrial process control system's anti-interference capability, ensuring system stability, and reliability. The isolator can be used in conjunction with various instruments, DCS, PLC, and other equipment, and has wide applications in major projects in industries such as petroleum, petrochemical, manufacturing, power, and metallurgy.
Note: This product is not allowed for use in explosion-proof environments.
-
Features
- Power Efficiency: Low power consumption with efficient heat dissipation design.
- Output Reliability: Distributive output with current-limiting protection for increased reliability and safety.
- Load Capacity: Supports a maximum load of 550Ω for current output.
- Compact Design: Ultra-thin design with a 13mm slim casing, saving installation space.
- Safety Protection: Flame-retardant casing for enhanced safety
| Input signal |
(4~20)mA、(0~20)mA |
| Distribution voltage/max current |
≥20V，20mA |
| Output signal |
(0~20)mA、(4~20)mA、
(0~5)V、(1~5)V、(0~10)V、(2~10)V |
| Output load resistance |
(4~20)mA、(0~20)mA：RL≤550Ω；
(0~5)V、(1~5)V、(0~10)V、(2~10)V：RL≥1MΩ |
| Transmission accuracy (20℃) |
0.1%FS |
| Response time |
≤400ms |
| Temperature drift |
≤50ppm |
| Power supply |
(20~35)VDC |
| Power consumption |
Single-channel output：≤1.5W
Double-channel output：≤2.6W |
| Operating temperature |
(-20~60)℃ |
| Storage temperature |
(-20~60)℃ |
| Relative humidity |
25%～85% |
