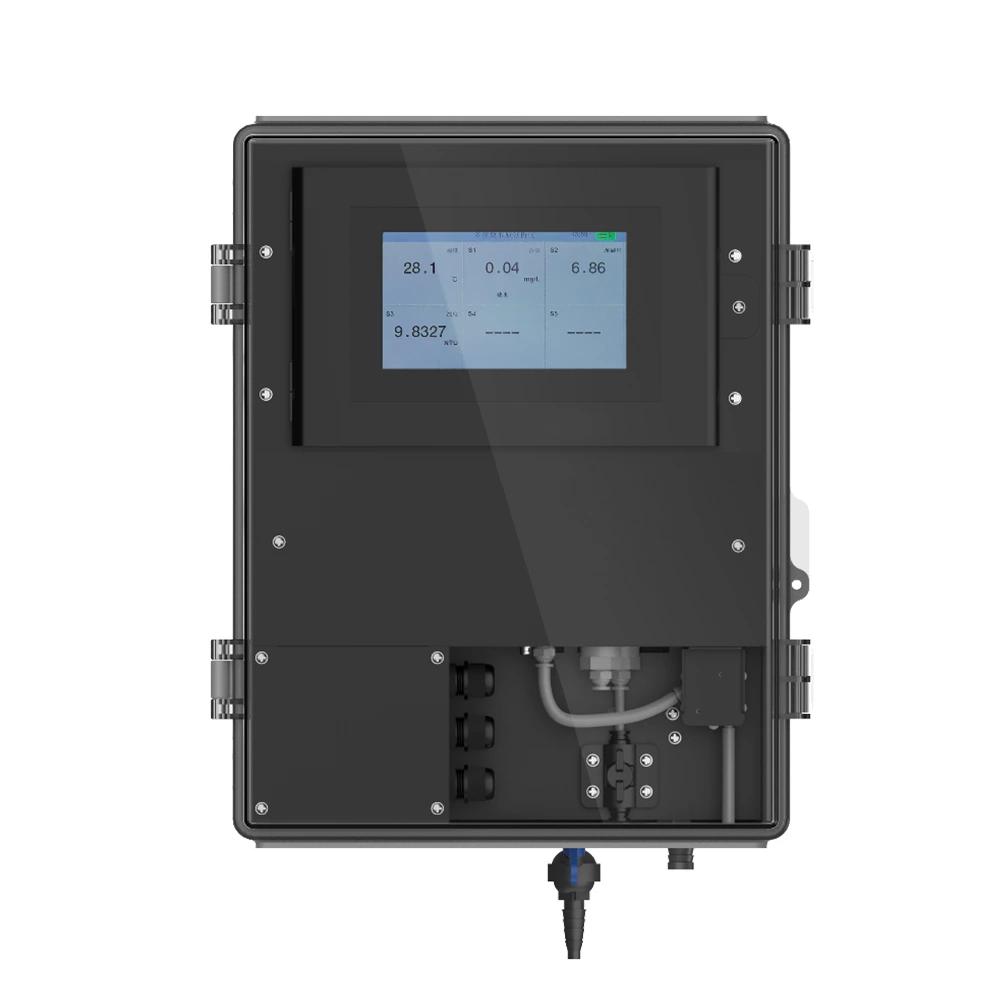

SUP-MDX100 Multi-parameter Water Quality Analyzer

This SUP-MDX100 Multi-Parameter Analyzer is a versatile instrument designed for continuous online water quality monitoring. It is widely applied in urban and rural water treatment plants, municipal tap water networks, secondary water supply systems, end-user outlets, indoor swimming pools, large-scale purification facilities, and direct drinking water systems.

As a key tool for process control, water resource management, and public health supervision, this analyzer provides real-time, accurate data to ensure safe, reliable, and efficient water supply operations.

Characteristics

Modular design: Monitor up to 6 parameters (pH, turbidity, residual chlorine (chlorine dioxide, ozone), temperature, conductivity (TDS, salinity), and ORP)

Accurate & reliable: High precision with stable repeatability

Flexible sensors: Easy to combine, install, and maintain

Reagent-free: No chemicals, no extra cost

Eco-friendly: No pollution or waste liquid

Temperature compensation: Stable readings under varying conditions

Multiple outputs: Simple integration with other systems

PH /ORP: 0-14pH, -1500 ~ 1500 mV

Turbidity: 0 ~ 100 NTU

Conductivity: 0 ~ 20,000 μS/cm

Residual chlorine/chlorine dioxide/ozone: 0-5mg/L

Temperature: 0℃ - 75℃

  • Introduction

The Multi-Parameter Water Quality Online Analyzer is a reliable solution for continuous water quality monitoring across a wide range of applications. It is commonly used in urban and rural water treatment plants, municipal water supply networks, secondary water supply systems, end-user outlets, swimming pools, large-scale purification facilities, and drinking water distribution. By delivering real-time, accurate data, it plays a key role in process control, water resource management, and public health supervision.

This analyzer can measure multiple parameters simultaneously, including pH, turbidity, residual chlorine (chlorine dioxide, ozone), temperature, conductivity (TDS, salinity), and ORP. Monitoring options can be tailored to specific project needs, allowing users to add or remove parameters as required.

  • Feature

• Compact modular design, capable of simultaneously monitoring up to 6 parameters.

• Selectable measurement parameters with high accuracy and good repeatability.

• Sensors can be freely combined, with simple wall-mounted installation and easy maintenance.

• No reagents required, no reagent consumption.

• No secondary pollution, no waste liquid.

• Temperature compensation for electrodes within a certain range.

• Multiple output options available.

SUP-MDX100 Multi-parameter Water Quality Analyzer

  • Specification

Item Index Value

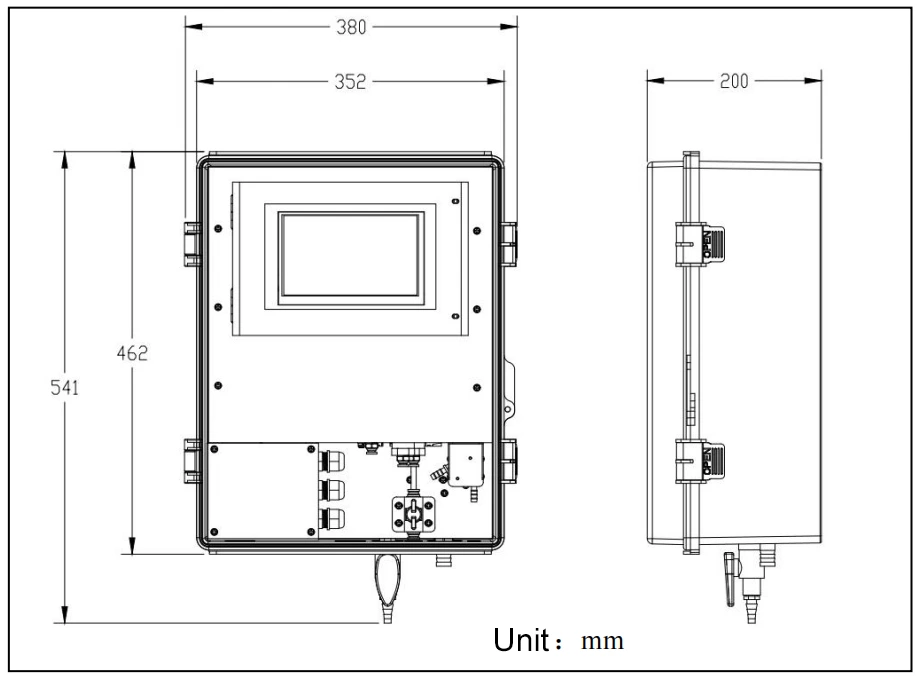

System Cabinet dimensions 380mm × 541mm × 200mm
Power supply 220VAC, <20W
24VDC, operating current <260 mA (when not cleaning),
operating current <1150 mA (when cleaning)
Transmitter output (4–20) mA, adjustable, supports up to 4 simultaneous outputs
Communication output RS-485 interface, Modbus RTU communication protocol
Response time ≤30s (residual chlorine < 2.5 min)
Operating temperature (0–55)°C
Storage temperature Instrument: (-25–55)°C
Inlet flow rate (0.6–1.5) L/min
Installation method Wall-mounted installation
Material Overall Housing: ABS
Temperature Measurement method Thermoresistance method
Measurement range (0~75)℃
Accuracy ±0.5℃
Resolution 0.1 ℃
Repeatability ±0.5℃
pH Measurement method Electrochemical method
Measurement range (0~14) pH
Accuracy ±0.1 pH
Resolution 0.01 pH
Repeatability ±0.1 pH
ORP Measurement method Electrochemical method
Measurement range (-1500 ~ 1500) mV
Accuracy ±20 mV
Resolution 1 mV
Repeatability ±10 mV
Conductivity Measurement method Two-pole graphite electrode method, four-pole graphite electrode method
Measurement range (0 ~ 20,000) μS/cm
Accuracy ±2% F.S.
Resolution 0.1 μS/cm
Repeatability ±5%
Turbidity Measurement method 90° infrared light scattering method
Measurement range (0 ~ 100) NTU
Accuracy ±5% or ±0.1 NTU (whichever is greater)
Resolution 0.001 NTU (≥10 NTU)/0.0001 NTU (<10 NTU)
Repeatability ±5% or ±0.1 NTU (whichever is greater)
Residual chlorine (chlorine dioxide, ozone) Measurement method Three-electrode constant potential method
Measurement range (0 ~ 5) mg/L
Accuracy ±0.1 mg/L or ±10% (whichever is greater)
Resolution 0.001 mg/L
Repeatability ±0.1 mg/L or ±10% (whichever is greater)
