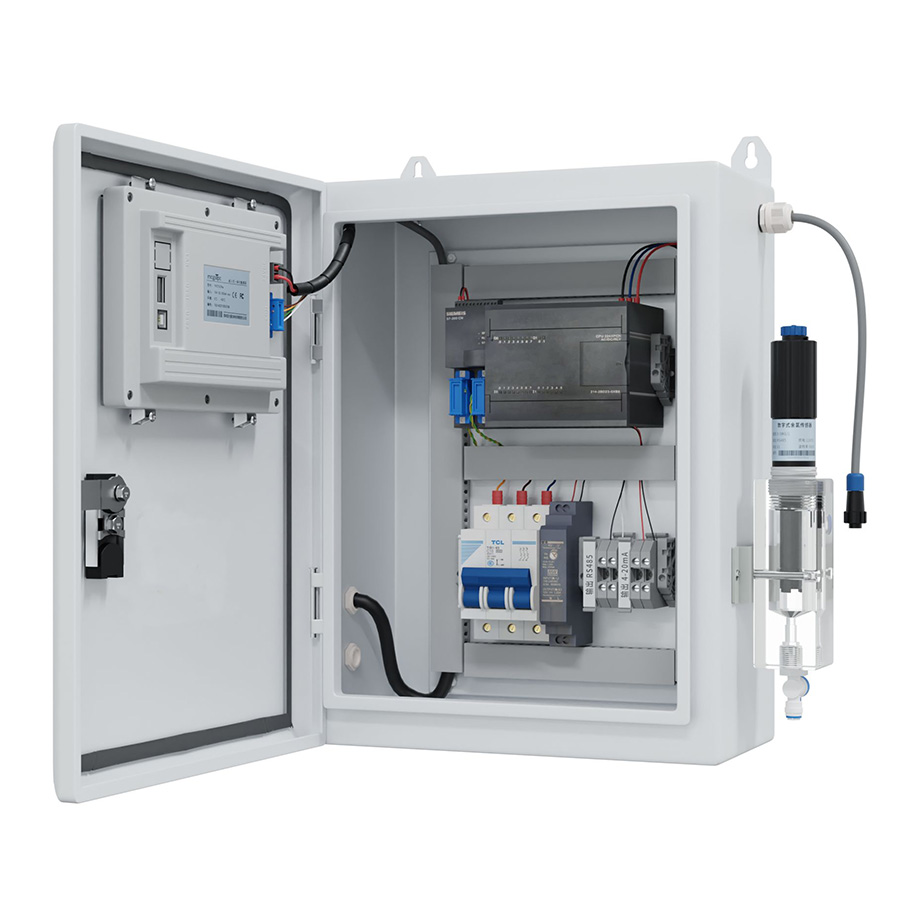

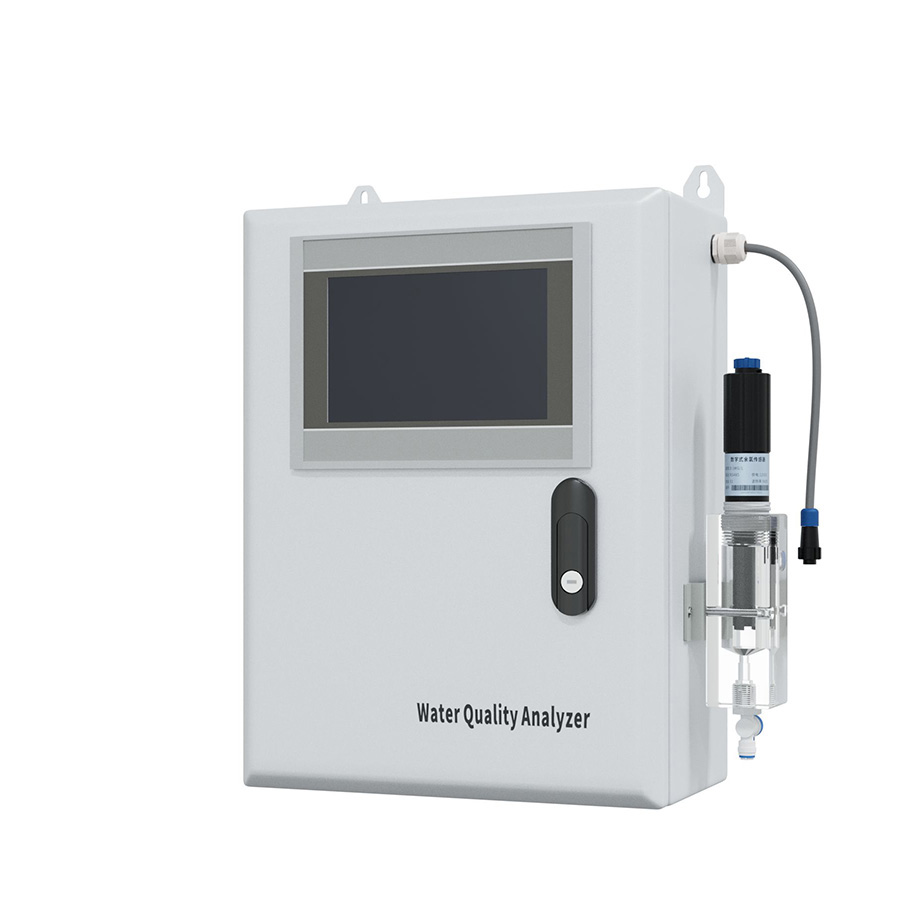

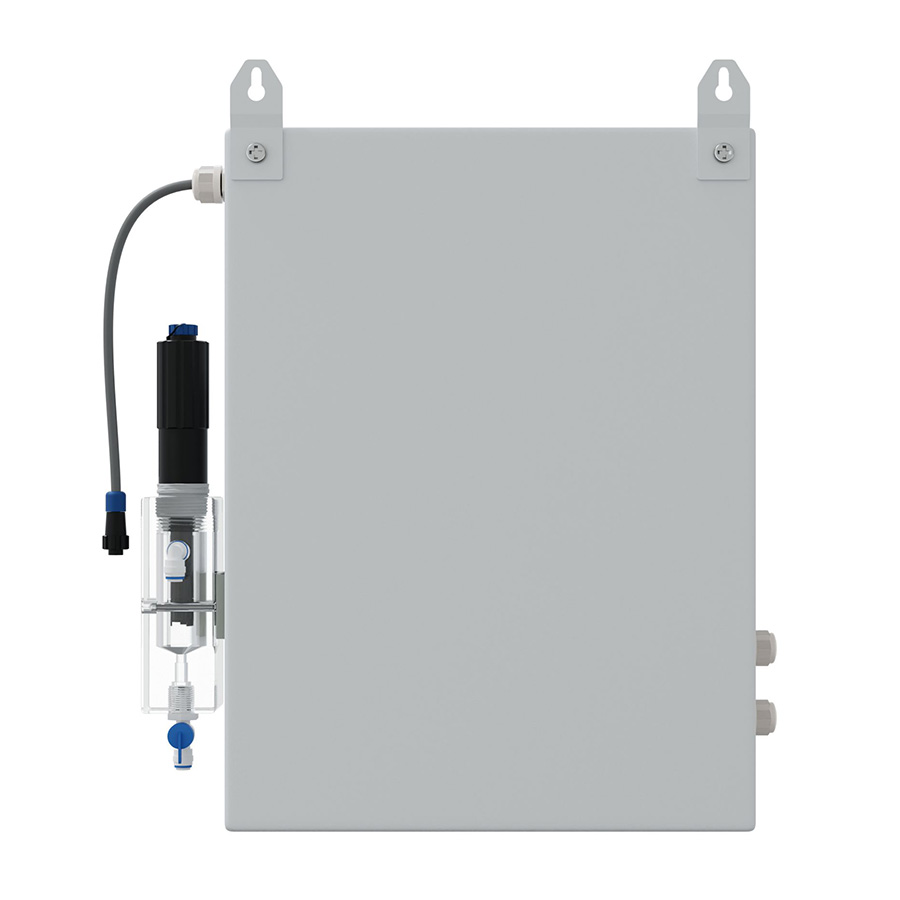

SUP-TRC 400 Residual chlorine meter
| Product |
Residual chlorine meter |
| Model |
SUP-TRC400 |
| Measure range |
Residual chlorine: (0~5) mg/L Temperature: (0.1~40.0)℃ |
| Display |
7 inch touch screen |
| Protective box size |
Dimensions : 400mm×300mm×180mm
Visual size : 155mm×87mm |
| Output signal |
(4~20)mA and RS485 |
| Load resistance |
≤750Ω |
| Environmental humidity |
≤95% no condensate |
| Power supply |
220VAC |
| Ingress protection |
IP43 |
SUP-ERC 400 Residual chlorine sensor
| Measurement content |
HCLO、CLO2 |
| Measuring system |
Microelectronics MEMS technology, special membrane structure |
| Accuracy |
When (0~0.1)mg/L,absolute error ±0.01mg/L |
| When (0.1~2)mg/L,±5% or ±0.03mg/L of measuredvalue(Whichever is greater) |
| When (2~5)mg/L,±5% of ±0.25mg/L of measuredvalue(Whichever is greater) |
| Resolution |
0.01 |
| Polarization time |
When it is used for the first time, chlorine containingwater is first supplied with water for 2 hours andthensupplied with electricity for half an hour. |
| Response time |
<30s |
| Conductivity |
>100μS/cm |
| Operating temperature |
(0.1~40) ℃ (No condensed water) |
| Temperature compensation |
Pt1000 with built-in integrated automatic compensation |
| Max pressure |
4bar |
| Recommended flow rate |
≥0.03m/s in flow cell |
| pH range |
(5~9) pH, below 5 will damage the membrane head |
| Maximum chlorine concentration |
≥5ppm |
| Power supply |
Standard 24V DC±2V; optional 12V DC±2V |
| Power consumption |
1.56W |
| Digital communication |
MODBUS RS485 |
| Cable length |
Standard 3 meters, others can be customized |
| Probe weight |
210g |
| Thread size |
NPT 3/4 |
| Connection method |
5-core waterproof aviation plug |
| Moisture-proof material |
PVC and VitonO-ring seal |
The residual chlorine meter has a built-in sensor, which has the characteristics of high measurement accuracy, fast response time and low maintenance cost. The residual chlorine meter outputs 4~20mA standard signal and RS485 signal, which can be connected to various regulators, and can be connected to two-position regulators, time proportional regulators, non-linear regulators and classic PID regulators according to requirements, which can be combined into various types. Residual chlorine control system.
-
The electrode measurement is accurate and the response speed is fast
-
LCD with backlight, easy and intuitive operation
-
With automatic temperature compensation, pH manual compensation function
-
Restore factory function to avoid data loss by misoperation
-
Isolated 4-20mA standard signal can realize signal remote transmission
-
Range can be switched manually
-
A variety of calibration methods are convenient for on-site adjustment
