Conductivity sensors (or electrodes) are specially used for conductivity measurement of pure water, water treatment, etc., and are particularly suitable for conductivity measurement in thermal power plants and water treatment industries.
Accuracy：Conductivity: ±2% F.S, Temperature: ±3℃
Protection level：IP68
Temperature compensation：Standard Pt 1000 (Pt 100, NTC10K, NTC 2.252K optional)
| Electrode type | Two-pole type (stainless steel electrode) | Four-pole | ||
| K=0.01 | K=0.1 | K=1.0 (Ambient temperature platinum black) | ||
| Application scenarios | Pure water industry | Regular water disposal | Tap water | Water disposal, seawater, acid, and alkali measurement |
Conductivity sensors (or electrodes) are specially used for conductivity measurement of pure water, water treatment, etc., and are particularly suitable for conductivity measurement in thermal power plants and water treatment industries.

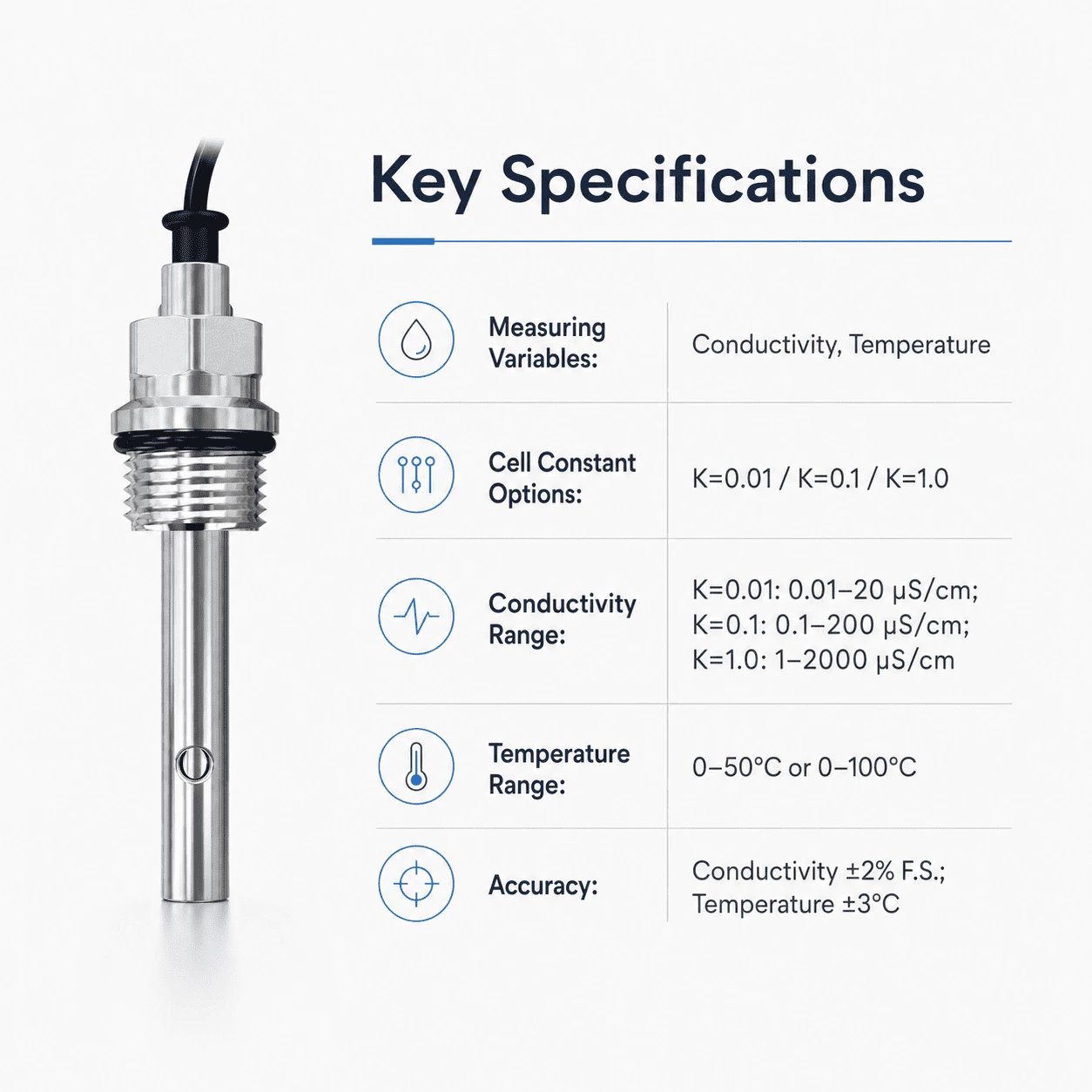

Technical parameters of the conductivity stainless steel electrodes
| Measured variables | Conductivity, temperature | |
| Measuring range and eletrode constant | Electrode constant | Conductivity measuring range |
| K=0.01 | (0.01 ~20) μS /cm | |
| K=0.1 | (0.1 ~200) μS /cm | |
| K=1.0 | (1~2000) μS/cm | |
| Temperature measuring range: (0 ~ 50)℃ or (0 ~100) ℃ | ||
| Accuracy | Conductivity: ±2% F.S | |
| Temperature: ±3℃ | ||
| Temperature compensation | Standard Pt 1000 (Pt 100, NTC10K, NTC 2.252K optional) | |
| Protection level | IP68 | |

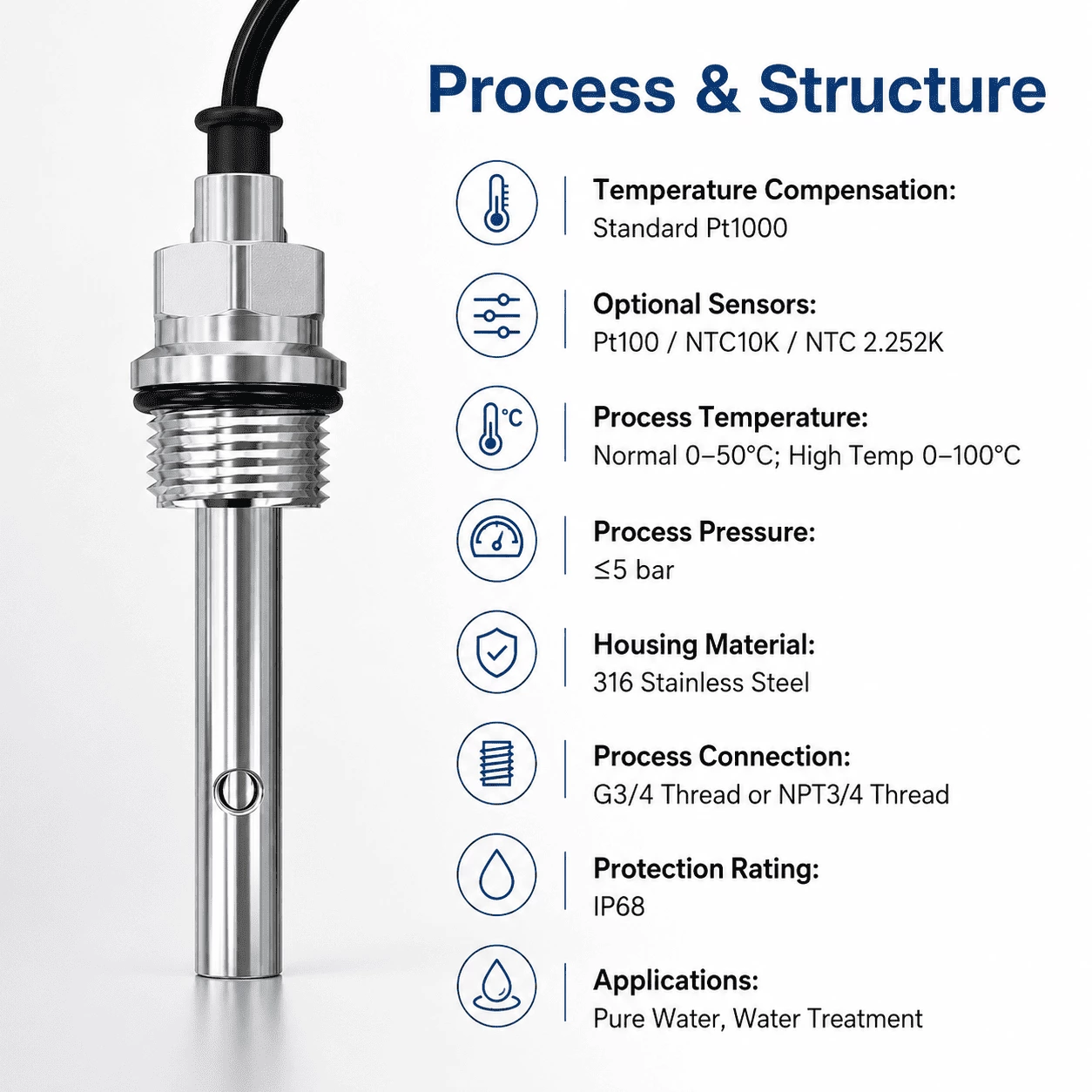

| Process conditions | ||
| Process temperature | Ambient temperature: (0~50)℃; High temperature: (0~ 100)℃ | |
| Process pressure | ≤ 5bar (electrode constant 0.01, 0.1,1.0) | |
| Mechanical structure | ||
| Housing material | 316 stainless steel | |
| Process connection | G3/4 thread or NPT3/4 thread | |
Technical parameters of the four-pole conductivity sensor
| Performance | |
| Measured variables | Conductivity, temperature |
| Electrode constant | K= 0.01/K= 0.1 /K=1.0/K=1 0 |
| Measuring range | Conductivity: 10 μS/cm~100 mS/cm |
| Temperature: (0 ~ 50) ℃ | |
| Accuracy | Conductivity: ±2%FS |
| Temperature: ±3℃ | |
| Temperature compensation | Standard Pt1000, optional Pt100, NTC10K, NTC 2.252K |
| Protection level | IP68 |
| Process conditions | |
| Process temperature | (0~50)℃ |
| Process pressure | ≤ 5bar |
| Mechanical structure | |
| Shell material | PBT |
| Process connection | NPT3/4 thread or G3/4 thread |
