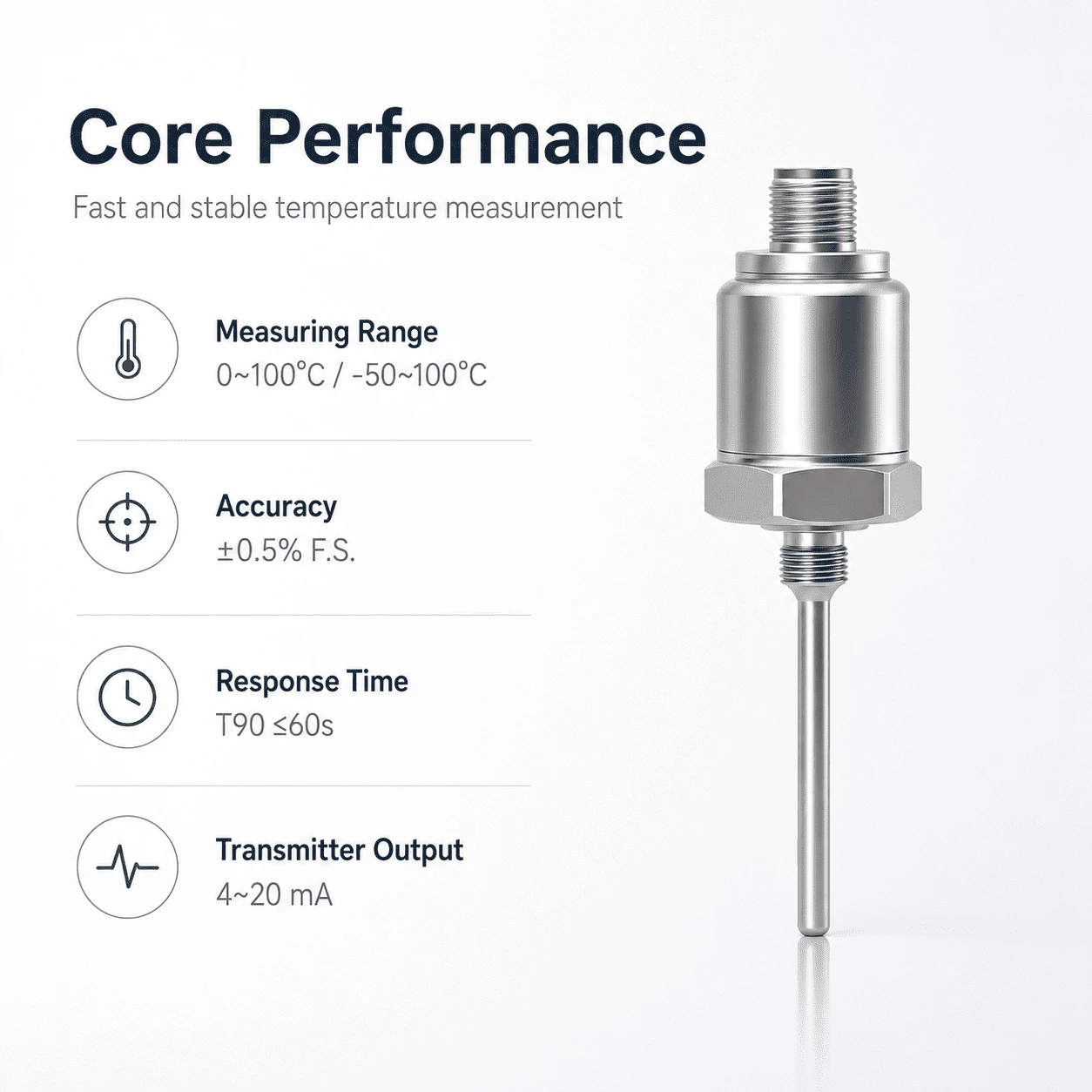

The SUP-TBY100 is a compact temperature transmitter designed for continuous liquid temperature measurement. It uses a Pt100 RTD sensor and provides stable signal output for industrial monitoring and control systems.
Pt100 temperature sensing element
Compact, easy-to-install design
±0.5% FS accuracy
Vibration and interference resistant
Stainless steel construction
Multiple connector options
| Parameter | Specification |
|---|---|
| Measured Variable | Temperature |
| Temperature Sensor | Pt100 RTD |
| Measuring Range | 32 to 212°F or −58 to 212°F (0 to 100°C or −50 to 100°C) |
| Accuracy | ±0.5% FS |
| Current Output | 4–20 mA |
| Communication | RS485, Modbus |
| Power Supply | 10–32 VDC for 4–20 mA; 8–32 VDC for RS485 |
| Response Time | T90 ≤60 seconds |
| Process Pressure | Up to 580 psi (4 MPa) |
| Housing Material | 304 or 316L stainless steel |
| Electrical Connections | Aviation, Hirschmann, Packard, or direct lead |
| Process Connections | M27×2, M20×1.5, M14×1.5, G1/8, G1/4, G1/2, NPT 1/4, or NPT 1/2 |
| Protection Rating | IP65 |
The Pt100 sensing element changes resistance as the temperature changes. The transmitter processes this change and converts it into a standard electrical signal for monitoring or control.
