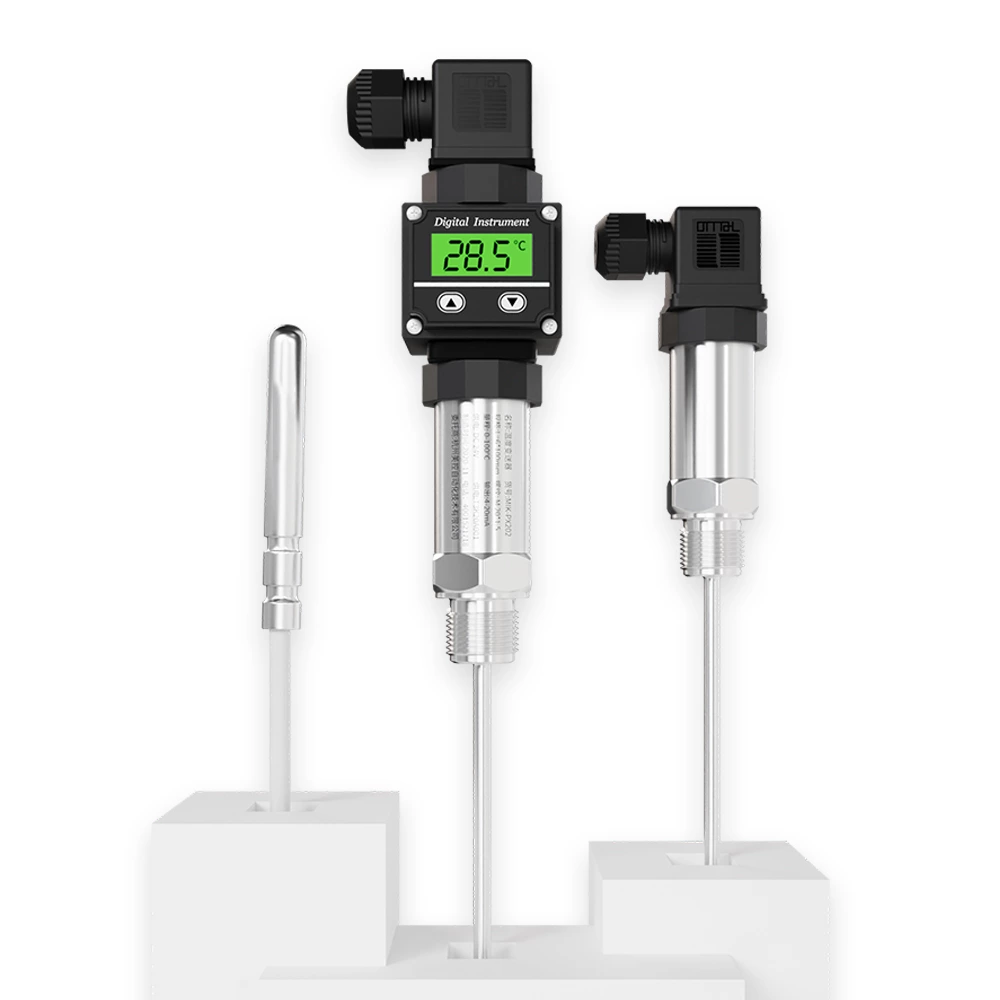

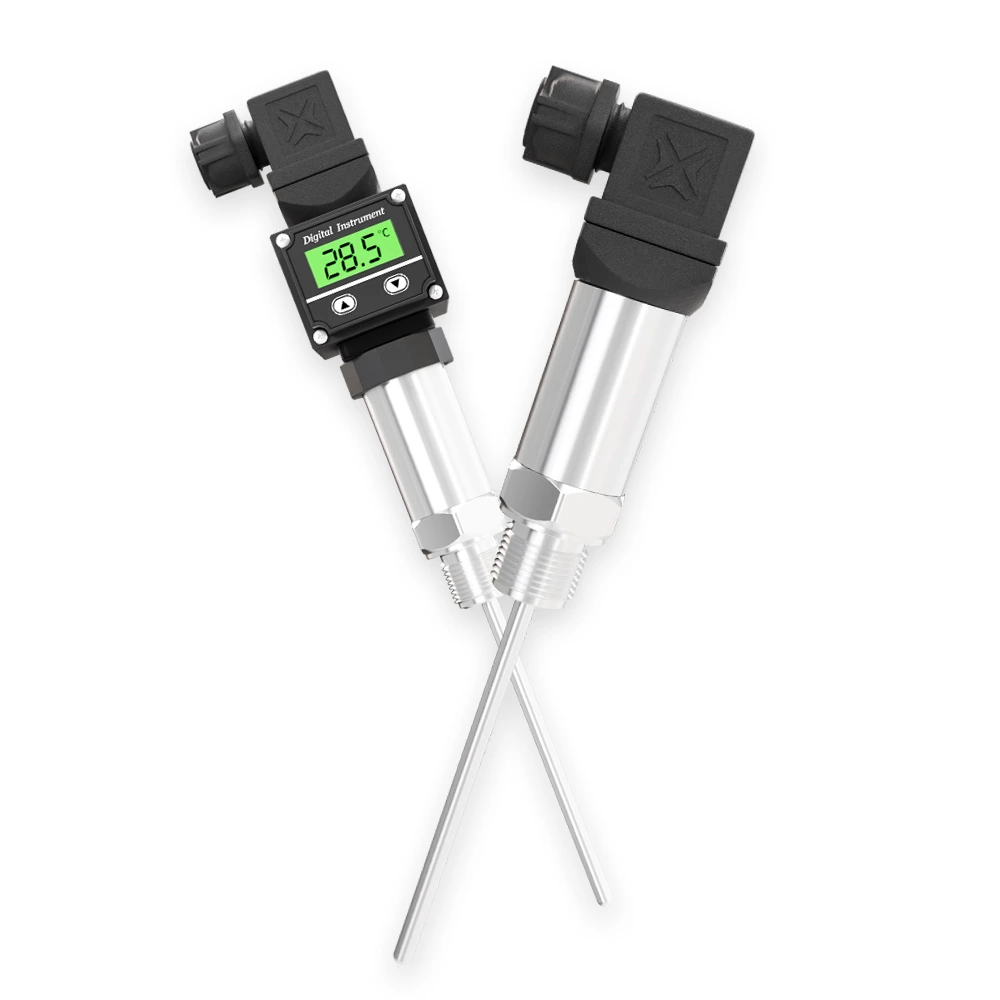

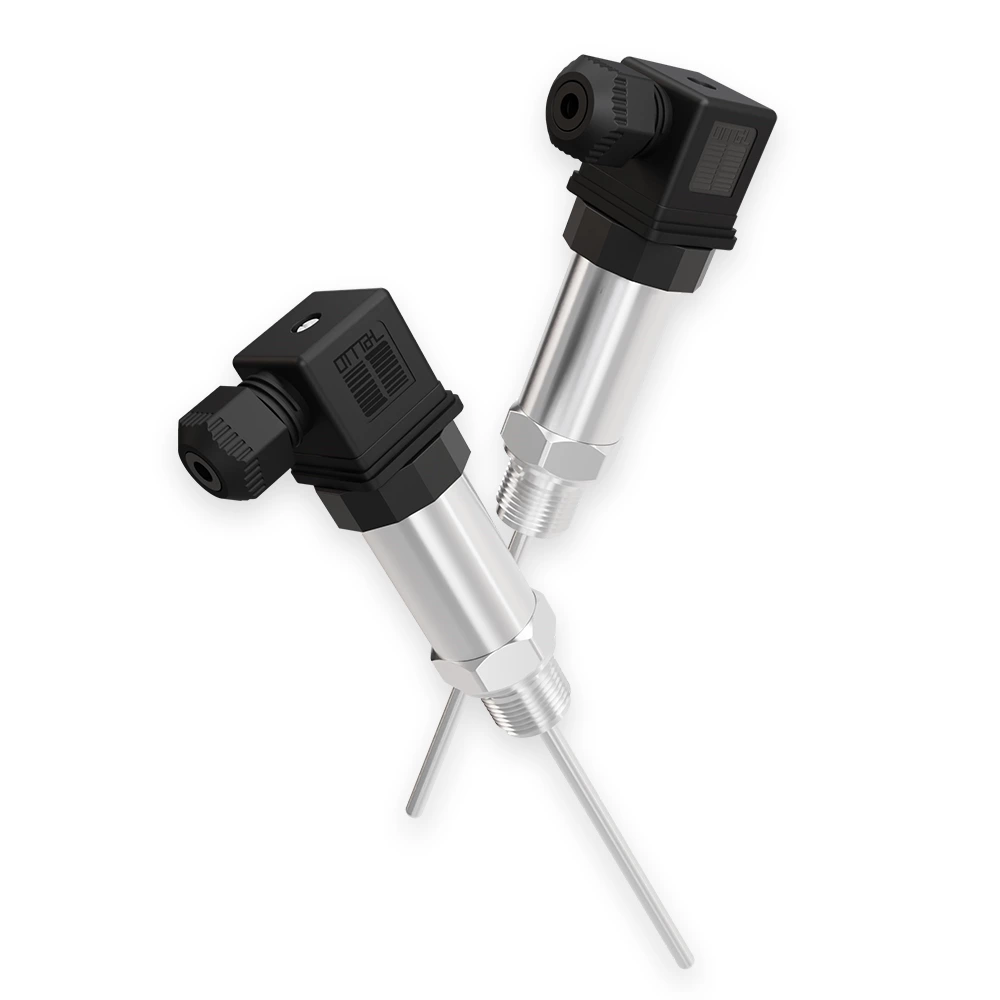

SUP-PX202/P202 Hirschmann Temperature Sensor

An RTD temperature sensor with a Hirschmann connector is a reliable and accurate device used for temperature measurement in various industries. The RTD (Resistance Temperature Detector) technology ensures high precision and stability in temperature readings. The Hirschmann connector, known for its robustness and durability, provides a secure and quick connection to the sensor.

Characteristics

Integrated structure, a variety of thread specifications to choose from M20*1.5, M14*1.5, G1/2G1/4, easy to install.
-50°C~200°C large range, accuracy up to 0.5%.

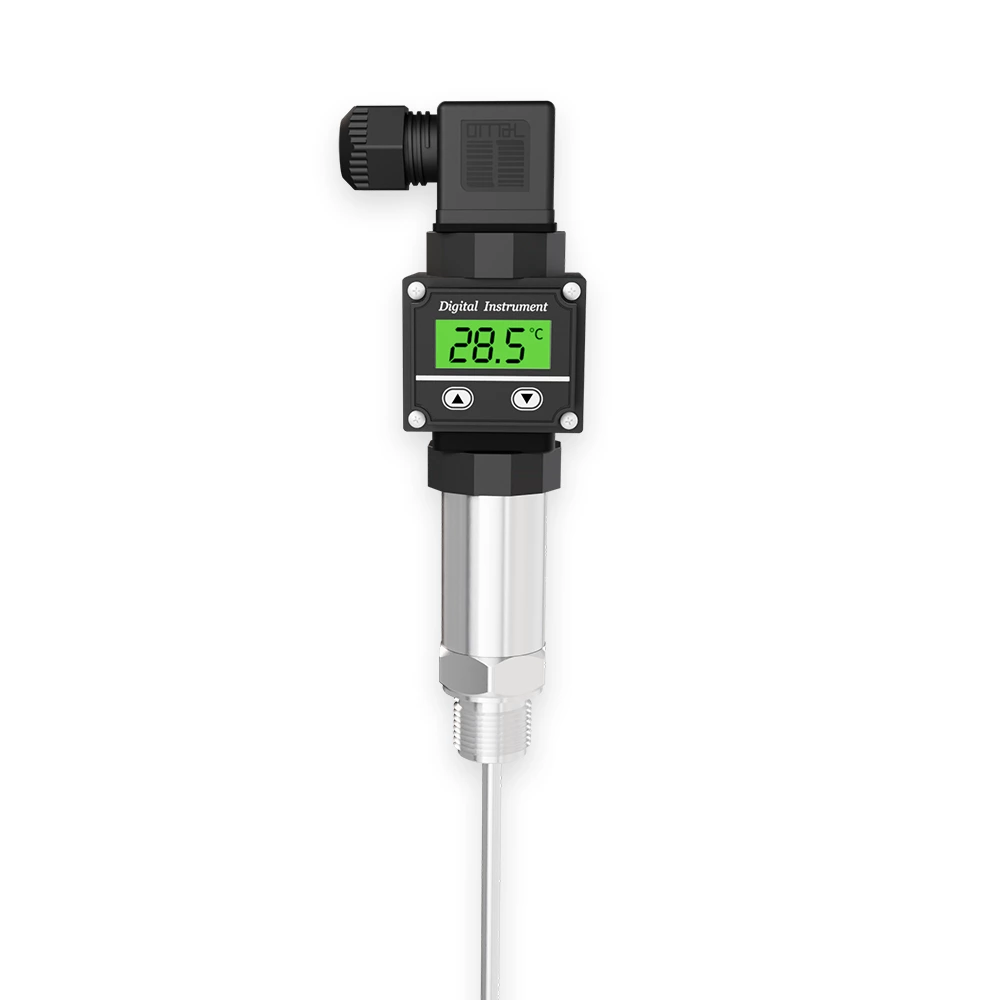

LED digital tube display. The displayed value is intuitive and easy to observe.
All stainless steel structure. The structure is stable and can prevent all kinds of general corrosive liquids and gases.

Specification

Measured variables	Temperature
Temperature sensor	Pt100
Measuring range	(-50～200)℃
Accuracy	0.5%F.S
Response time	T₉₀≤60s
Current output	(4～20)mA，load capacity =(U-9V)/0.02A U: supply voltage, unit: V
Communication output	RS485，Modbus communication protocol.
Temperature output	Pt100
Power supply	(4～20)mA output: (9~30)VDC RS485 output without display: (5~30)VDC RS485 output with display: (5~28)VDC
Power consumption	(4～20)mA output: 0.7W@24VDC RS485 output without display: 0.2W@24VDC RS485 output with display:0.4W@24VDC
Cable entries	DIN43650-A Hirschmann connector ; GX12 aviation plug
Insulation resistance	20MΩ，250VDC
Dielectric strength	500VAC
Ingress protection	IP65 ( Display part: IP50 )
Process pressure	4MPa
Ambient temperature	(-20~70)℃
Storage temperature	(-20~70)℃

Introduction

Intelligent temperature transmitter, used for thermal resistance RTD) input, 2-wire (4~20) mA analog output, RS485 output. Built-in the latest ASSIC single-chip integrated circuit, using high-precision 24-bit ADC to convert into digital signals, the product has the characteristics of accurate measurement, stable operation, long service life, etc.
