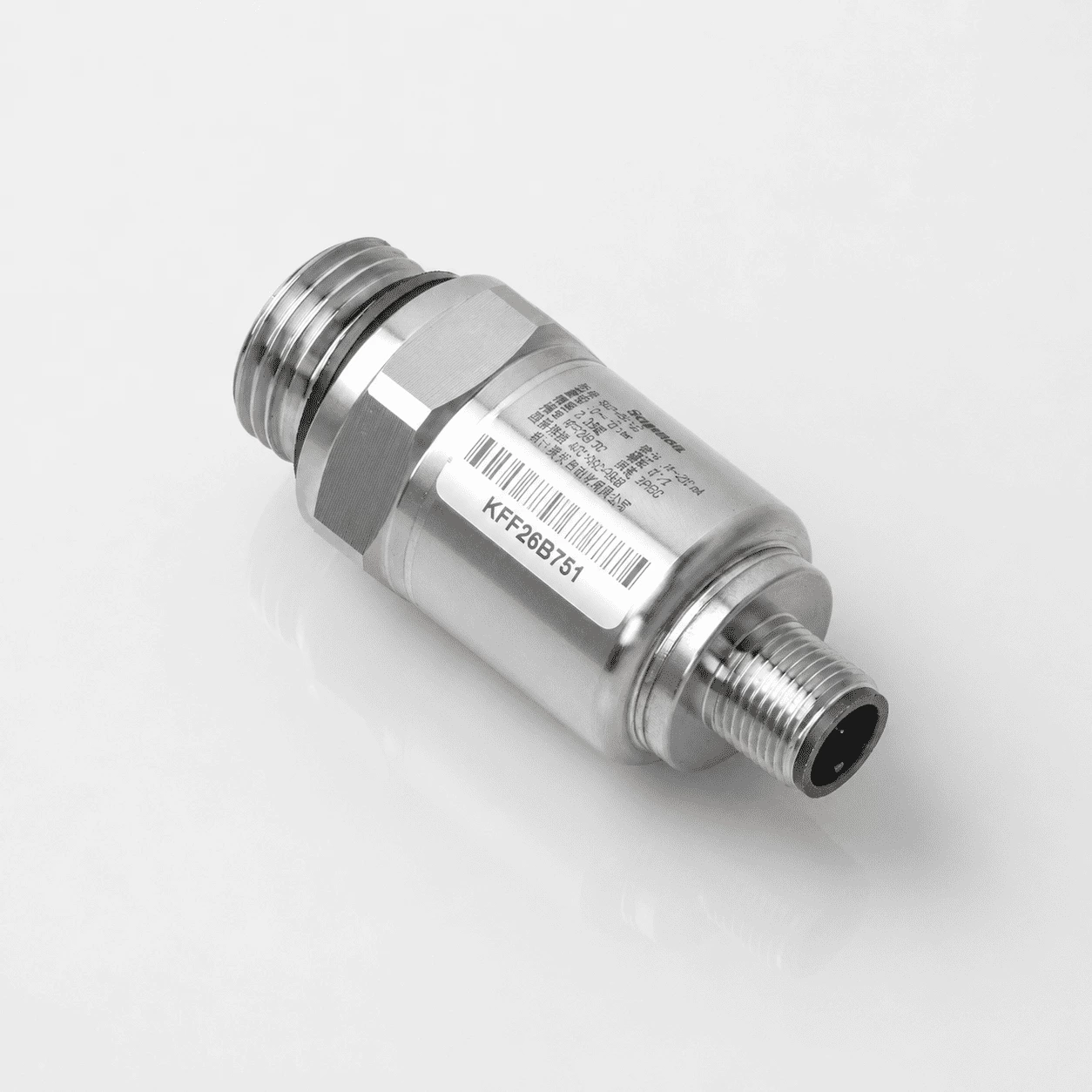

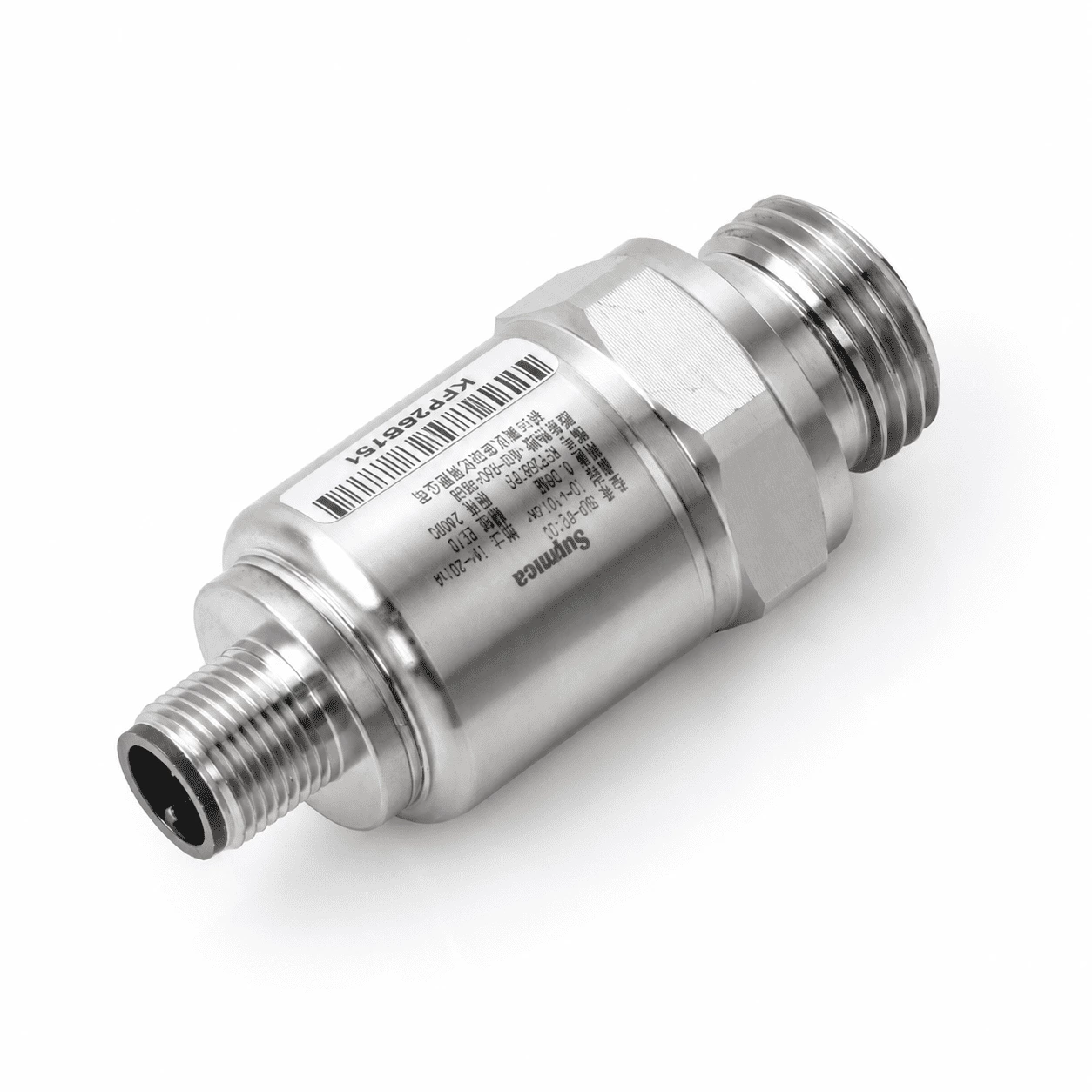

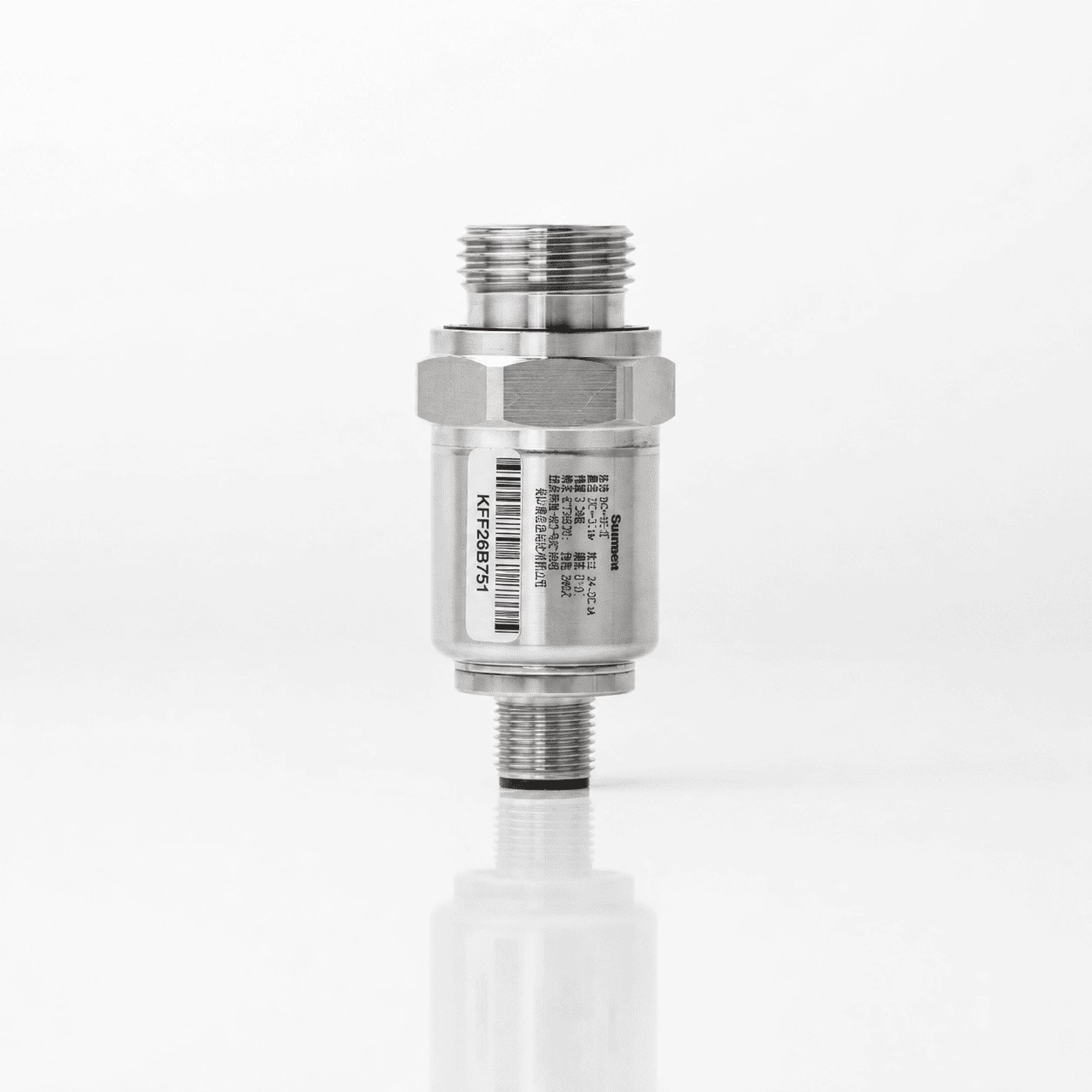

SUP-PE100 Compact Pressure Transmitter for Data Center Cooling

The SUP-PE100 Compact Pressure Transmitter is designed for pressure monitoring in data center cooling, liquid cooling, HVAC, and general industrial systems. It uses a high-stability piezoresistive silicon sensing element to provide accurate and reliable pressure measurement for water, coolant, and other compatible fluids.

Characteristics

Measuring range: From −14.5 psi to 8,702 psi (−100 kPa to 60 MPa)

Accuracy: Class 0.2, 0.25, or 0.5

Output options: 4–20 mA, multiple voltage outputs, or RS485

Pressure types: Gauge, absolute, and sealed pressure

Wetted diaphragm: 316L stainless steel

Protection rating: IP65

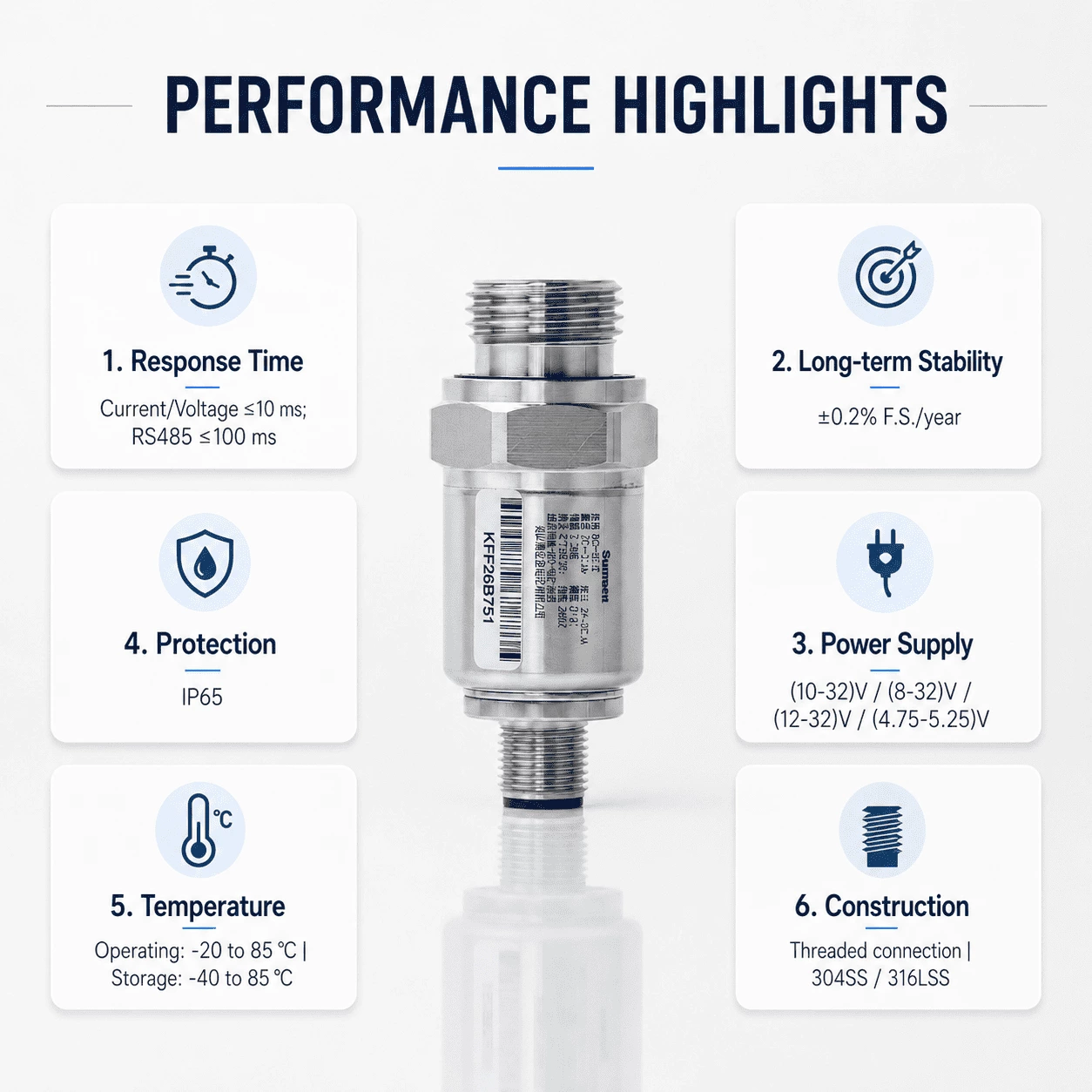

Specification

Parameter	Specification
Pressure Type	Gauge pressure, absolute pressure, or sealed pressure
Measuring Range	−100 kPa to 60 MPa (approximately −14.5 to 8,702 psi)
Accuracy	Class 0.2 / 0.25 / 0.5
Output Signal	4–20 mA; 1–5 V; 0–5 V; 0–10 V; 0.5–4.5 V
Communication	RS485, Modbus
Power Supply	10–32 VDC for 4–20 mA; 8–32 VDC for 0–5 V and 1–5 V; 12–32 VDC for 0–10 V; 4.75–5.25 VDC for 0.5–4.5 V
Response Time	T90 ≤10 ms for current and voltage outputs; T90 ≤100 ms for RS485
Long-Term Stability	±0.2% FS/year
Overload Pressure	150% FS for 0.035–10 MPa ranges; 125% FS for 10–60 MPa ranges
Burst Pressure	200% FS
Medium Temperature	−4 to 185°F (−20 to 85°C)
Wetted Diaphragm	316L stainless steel
Process Connection Material	304 or 316L stainless steel
Seal Material	EPDM; FKM optional
Electrical Connections	Hirschmann connector, M12 aviation connector, direct lead, or Packard connector
Protection Rating	IP65

SUP-PE100 Compact Pressure Transmitter for Data Center Cooling

Measurement Principle

The SUP-PE100 operates using the piezoresistive effect. Pressure from the measured medium is transmitted through an isolation diaphragm and silicone oil to the sensing diaphragm of the diffused silicon sensor.

Applied pressure causes a small displacement of the sensing diaphragm, changing the resistance of the integrated Wheatstone bridge. The internal electronic circuit detects this change and converts it into a corresponding standard current, voltage, or RS485 output signal.

Features

Compact structure for installation in space-limited equipment
High-stability diffused silicon sensing element
Advanced diaphragm and oil-filled isolation technology
Vibration-resistant construction
Resistance to radio-frequency interference
Multiple current, voltage, and RS485 output options
Suitable for integration with PLCs, BMS platforms, and equipment control systems
