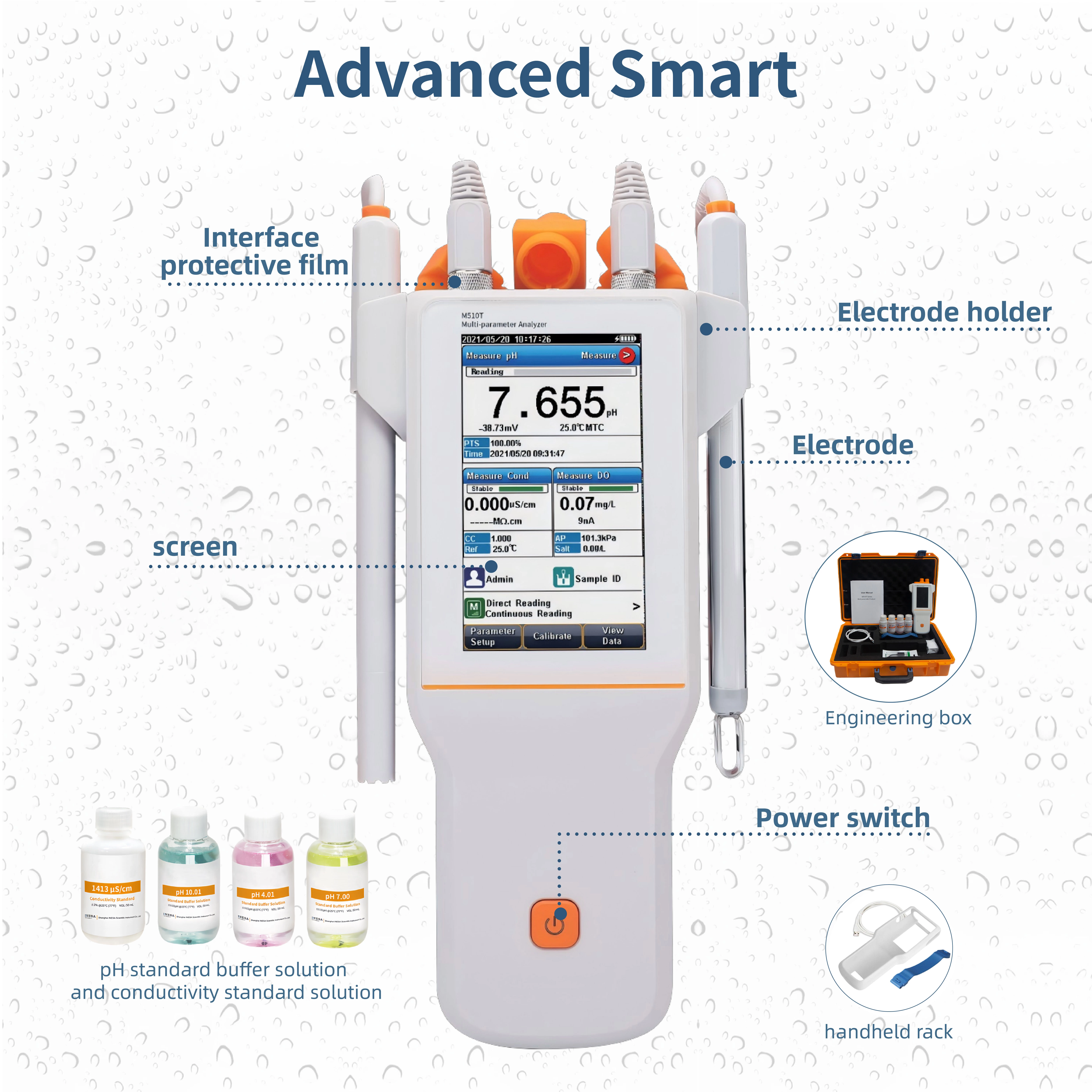

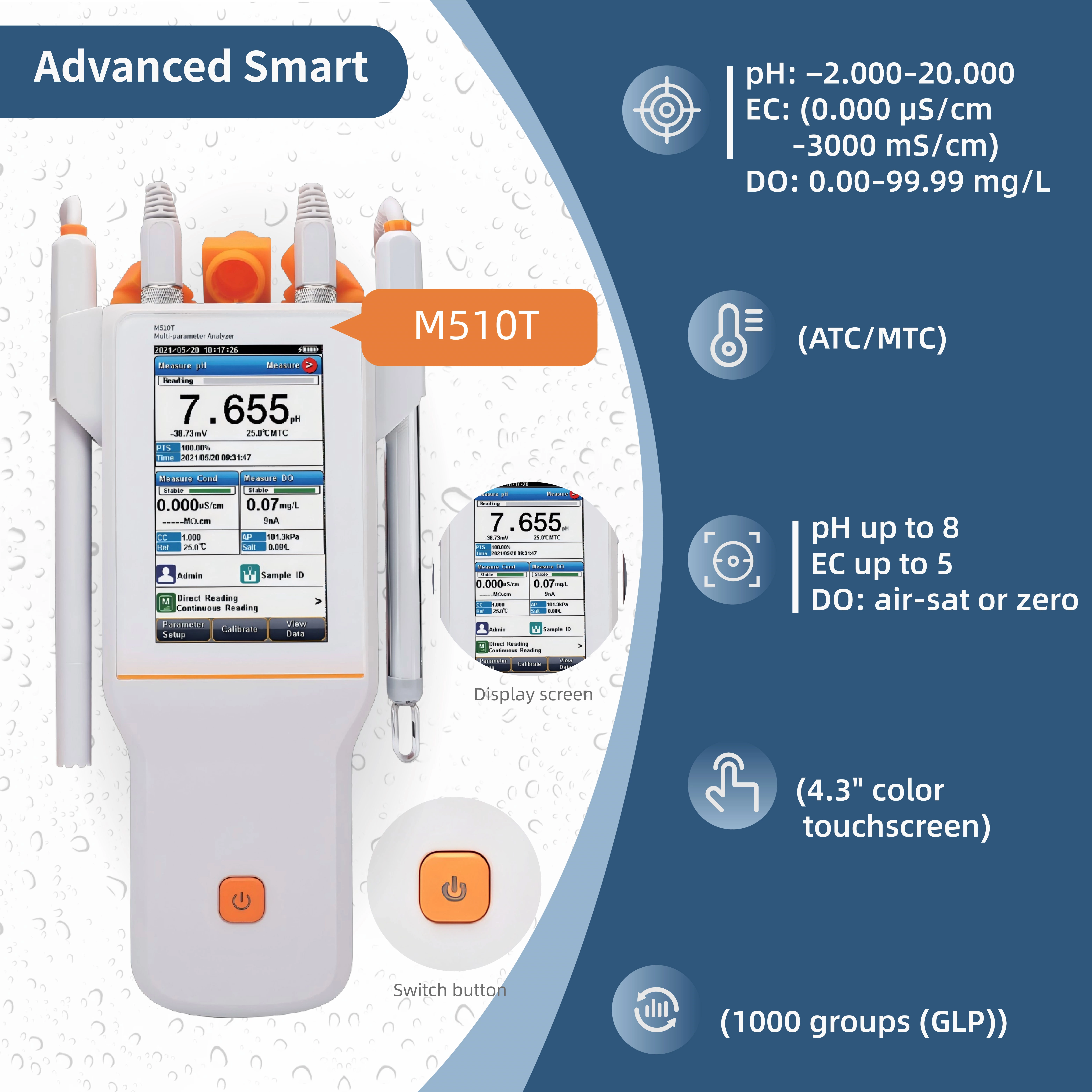

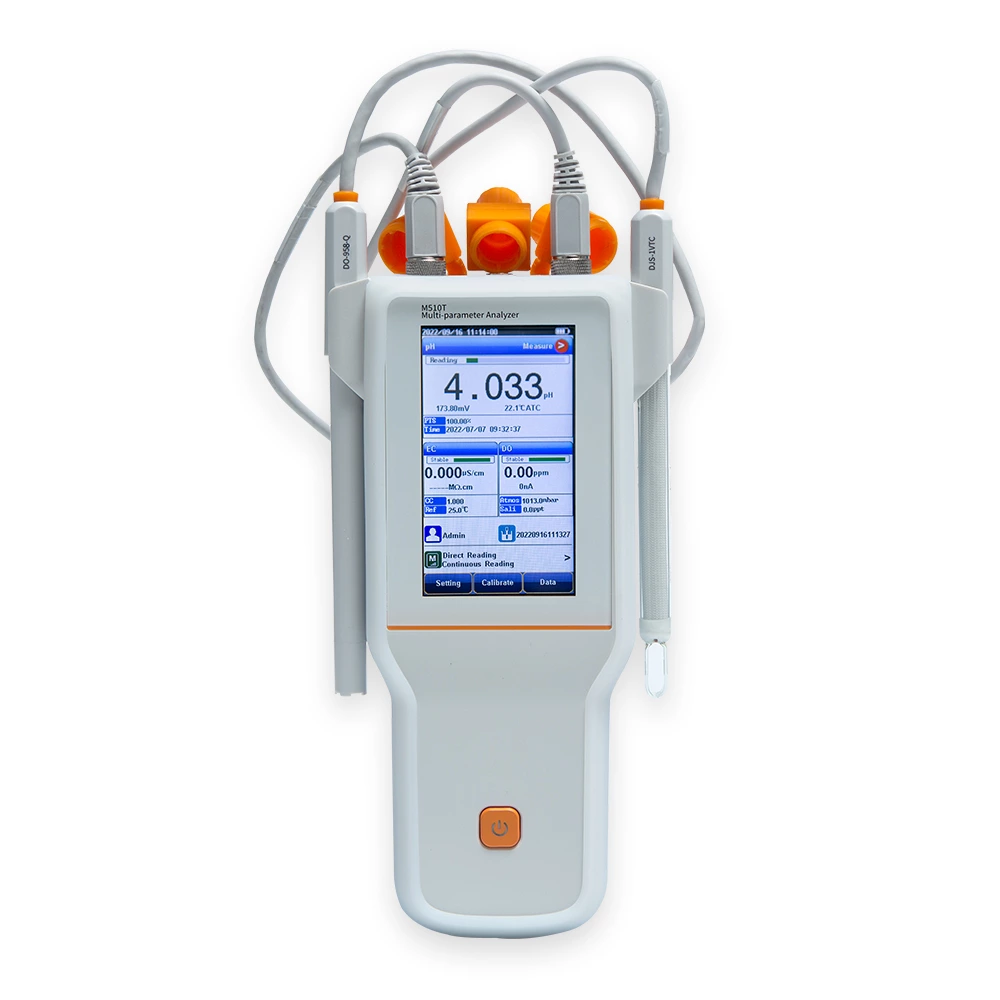

M510T Portable Multi-parameter Analyzer

A portable touchscreen meter with intelligent data management, multiple reading modes, temperature compensation, and IP65 waterproof design, delivering accurate and convenient measurements for field and outdoor applications.

Characteristics

Display: 4.3-inch high-contrast LCD touchscreen

Data Storage: 1000 Groups

Power: Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

IP Rating: IP65

Introduction

This portable meter is equipped with a 4.3-inch high-contrast LCD touchscreen and an intelligent operating system that supports user, calibration, electrode, method, data, and log management. It offers multiple reading modes, including auto-read, timed-read, and continuous-read, and ensures accurate measurements through automatic or manual temperature compensation. The auto-hold function automatically detects and locks stable measurement endpoints. With GLP-compliant storage of up to 1,000 data sets per parameter and built-in data analysis tools, the meter allows easy review and recalculation of results. USB communication, auto power-off for extended battery life, factory reset, and IP65 waterproof protection make it well suited for reliable field and outdoor measurements.

Specification

Model		M510T

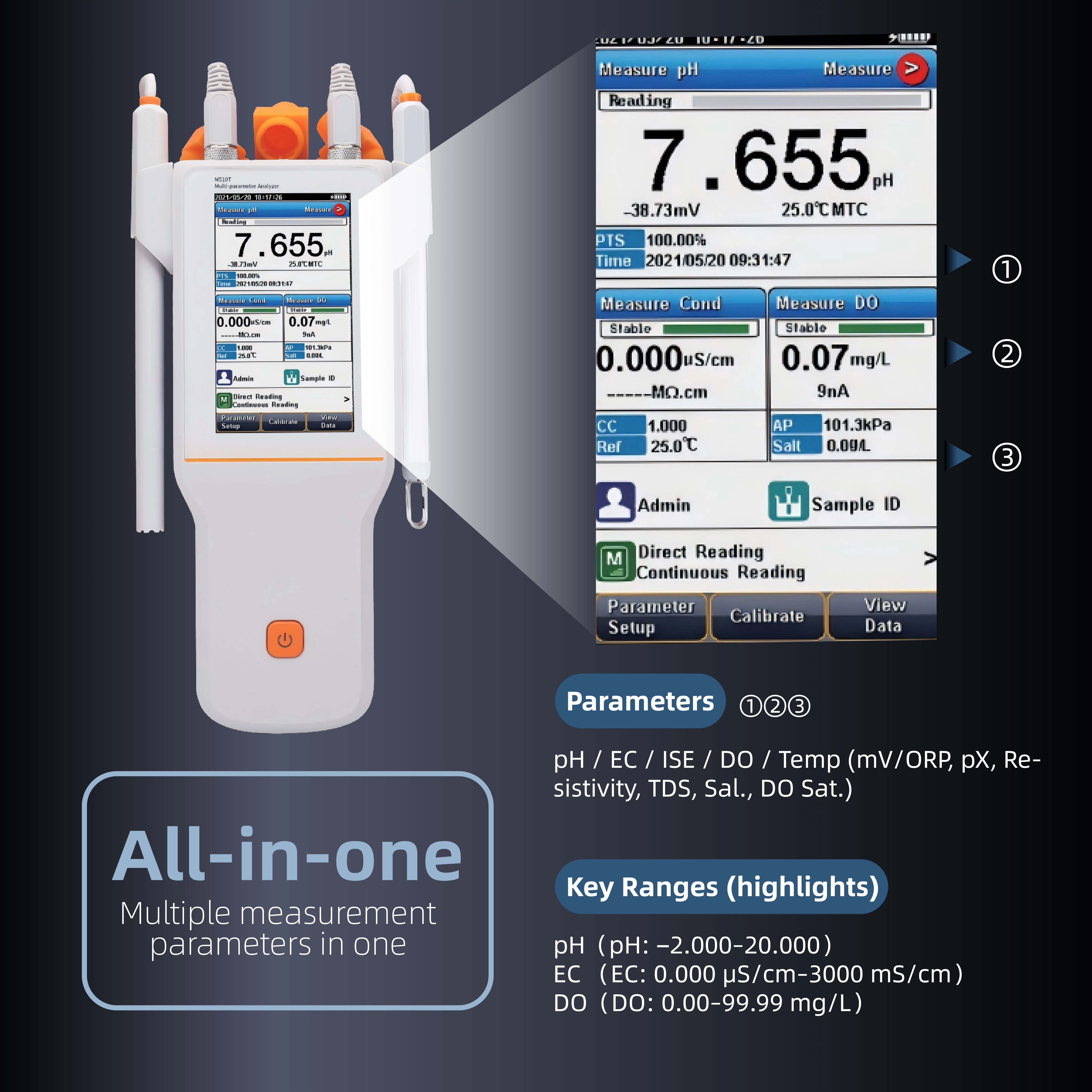

Parameters		pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.1 mV or ±0.03%
ISE	Range	1.000e-9 to 9.999e+9
	Resolution	Up to 4 significant digits
	Accuracy	±0.3%
Dissolved Oxygen Concentra- tion	Range	0.00 to 99.99 ppm
	Resolution	0.01 ppm
	Accuracy	±0.10ppm, 0.00~50.00ppm ±0.50ppm, 50.0~99.99ppm
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Resolution	0.1
	Relative Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Inputs	pH Electrode	BNC(Q9)
	DO with Temp. Probe	4-pin aviation connector
	Conductivity with Temp. Probe	5-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC, scanner
Data Storage		1000 Groups
Power		Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions		90×255×40 mm
Weight		500g (1.1 lb)

FEATURES
Display: Color high contrast LCD touchscreen, 4.3 inches.
System: Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, log management, etc.
Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
Accuracy: Automatic/Manual temperature compensation ensures accurate results.
Stability: Auto-hold feature senses and locks the measurement endpoint.
Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps users review, compare, and recalculate results.
Connectivity: Support for USB communication.
Power: Auto-power off feature effectively extends the battery service life.
Recovery: Reset feature automatically resumes all settings to factory default options.

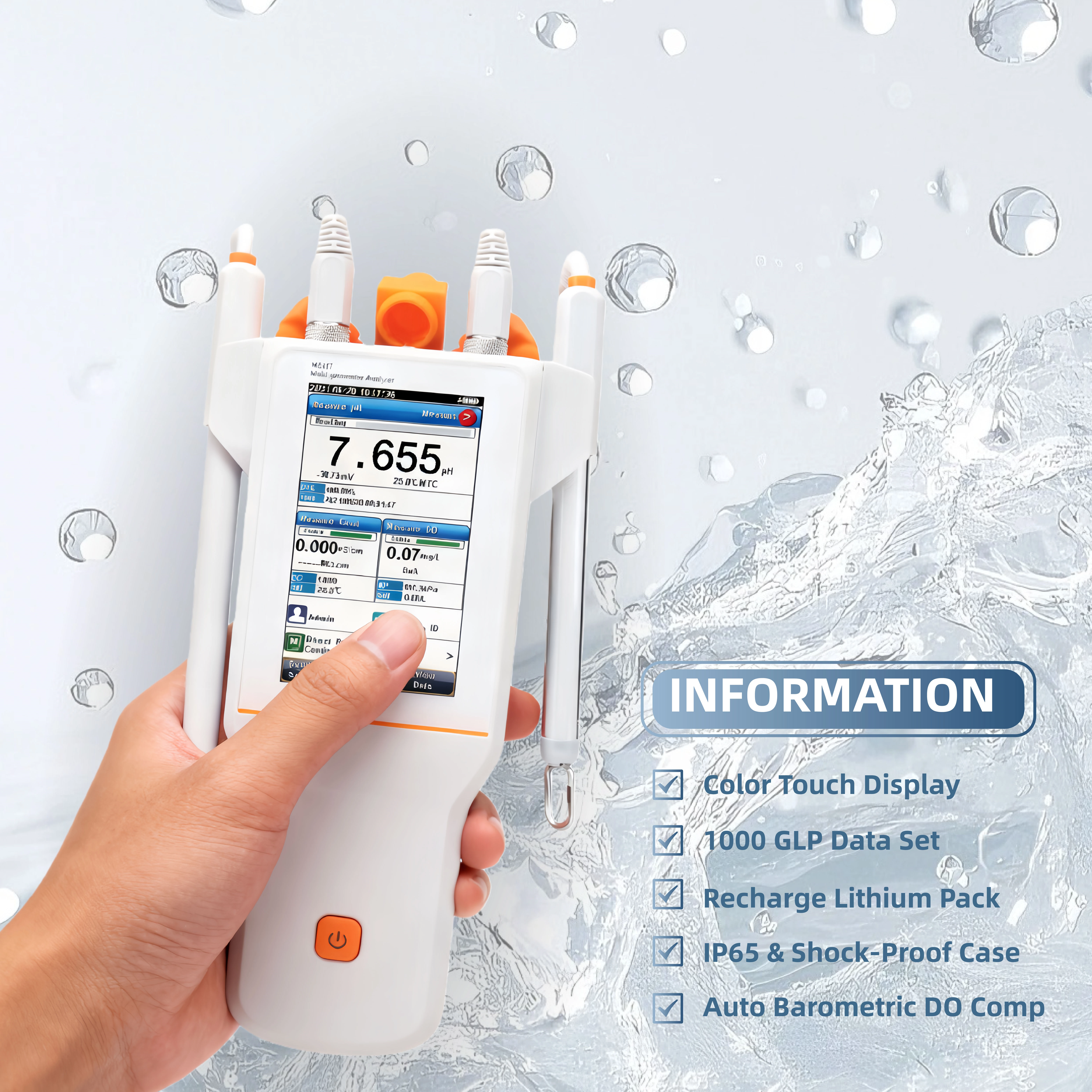

Protection: IP65 waterproof. The portable meter is suitable for field and outdoor measurements.
