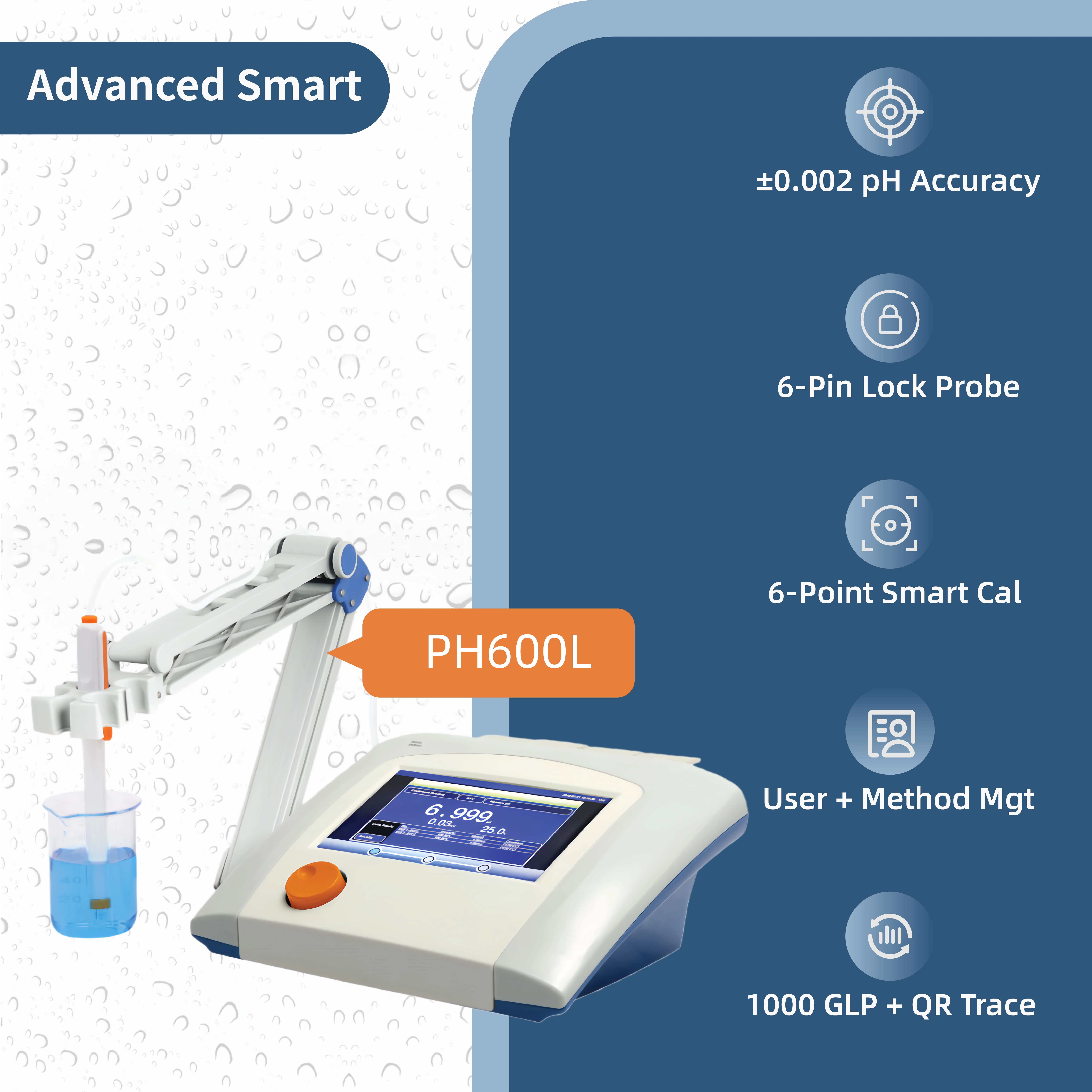

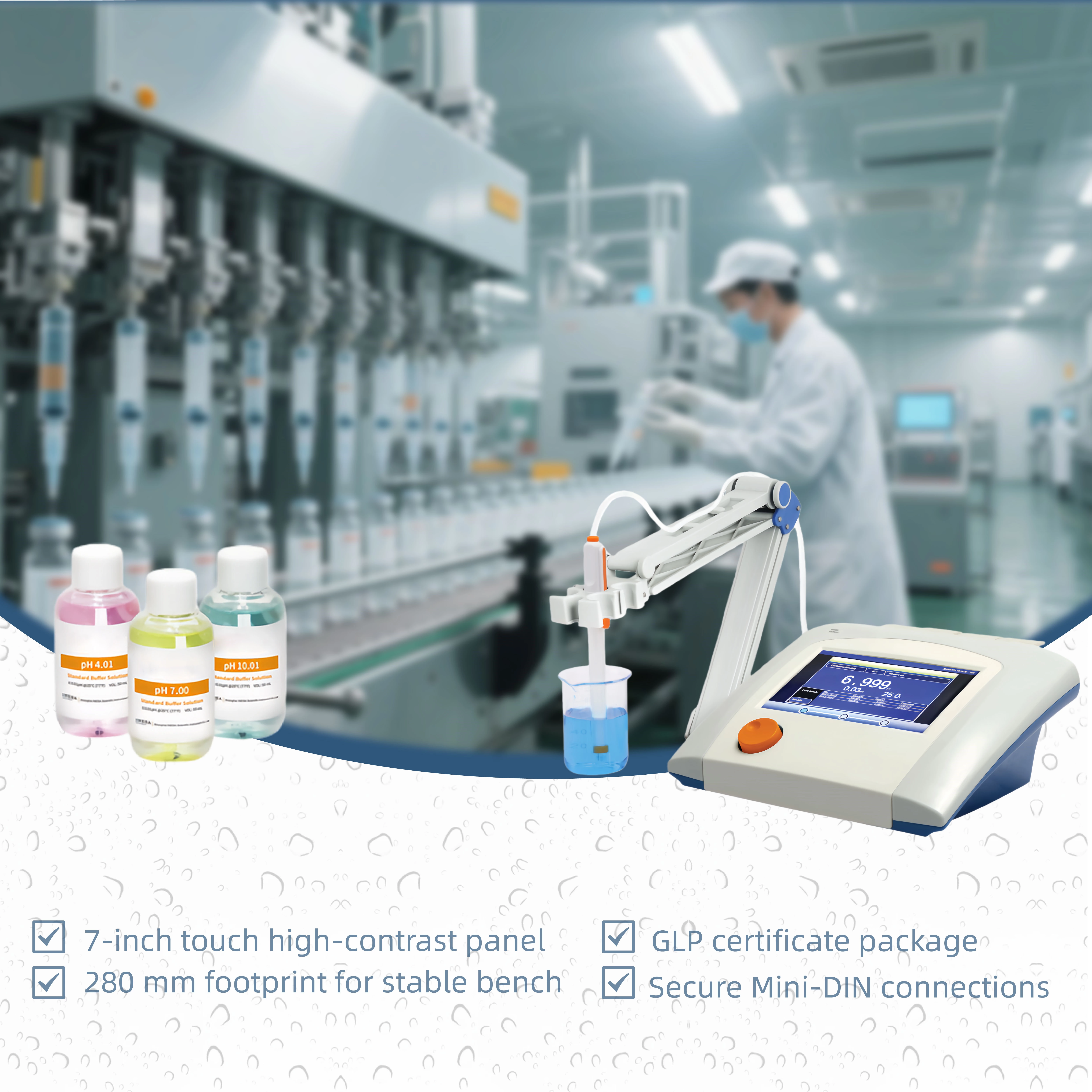

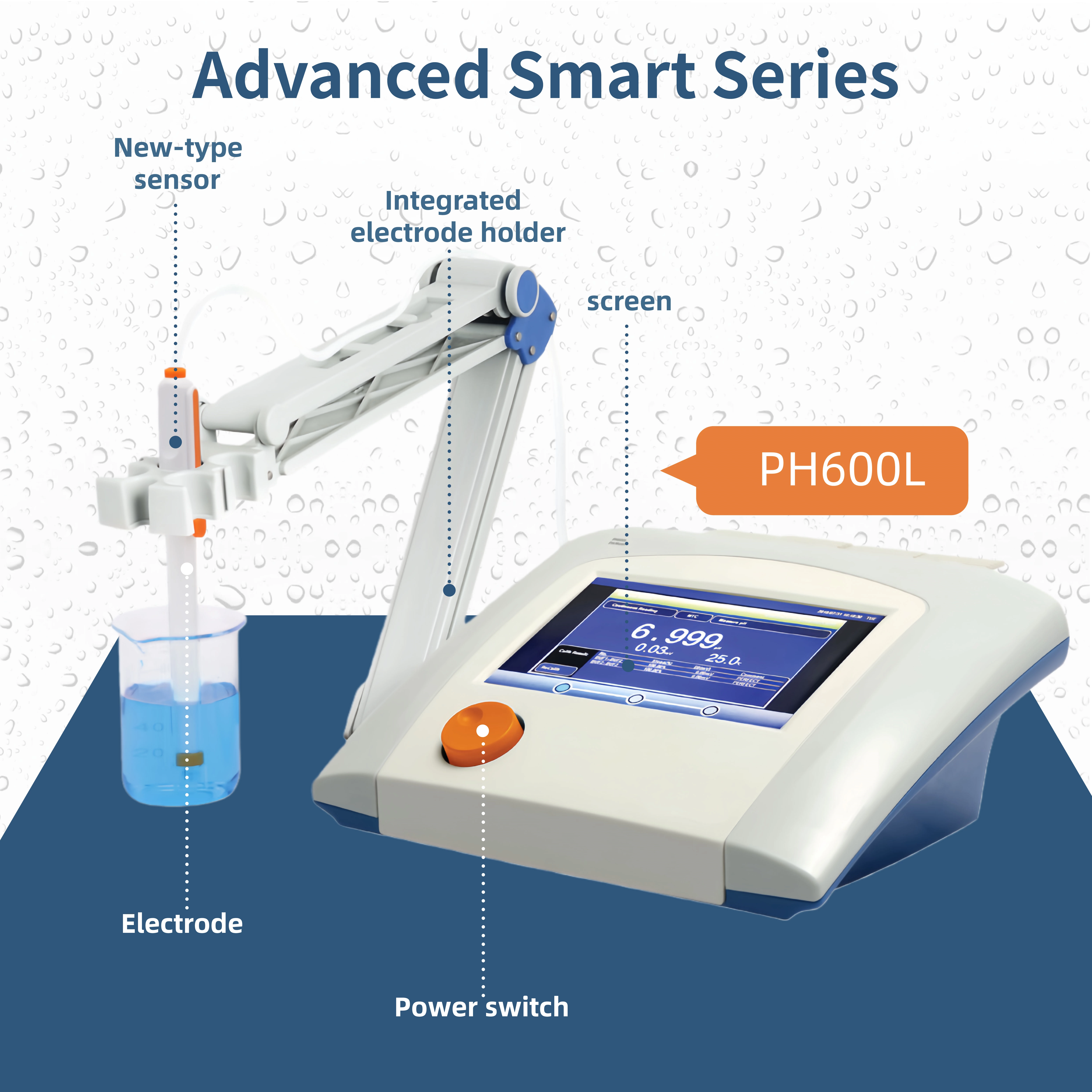

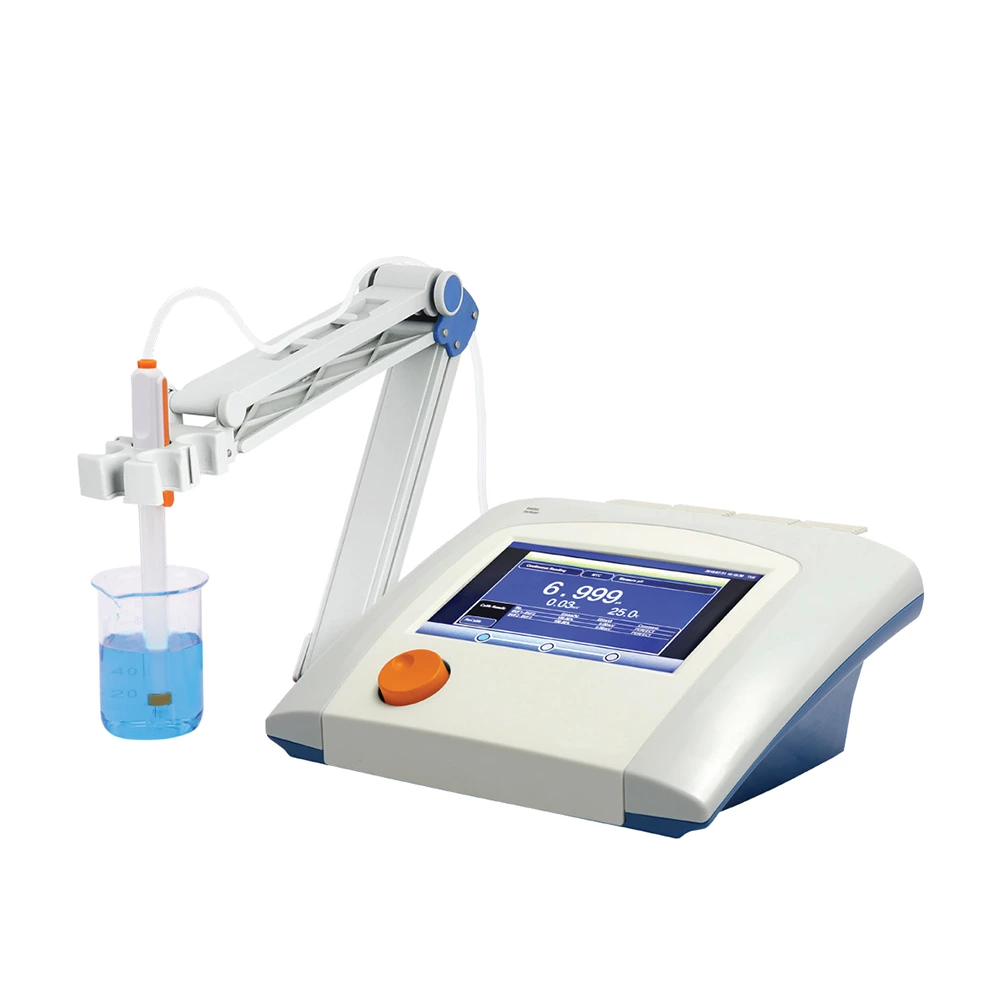

PH600L Benchtop pH Meter

A high-performance pH analyzer with a large touchscreen, flexible calibration options, automatic electrode diagnostics, GLP-compliant data storage, and reliable communication interfaces for accurate and efficient pH measurement.

Characteristics

Display: 7.0-inch high-contrast LCD touchscreen

Data Storage: 1000 Groups

PH Accuracy: ±0.002 pH

IP Rating: IP54

Introduction

This instrument is equipped with a 7.0-inch high-contrast LCD touchscreen and an intelligent operating system that enables efficient user, calibration, method, and data management. It supports multiple reading modes, including auto-read, timed-read, and continuous-read, and ensures accurate measurements through automatic or manual temperature compensation. The device offers GLP-compliant storage of up to 1,000 data sets per parameter, along with data analysis functions for reviewing and recalculating results. Featuring 1 to 6 points calibration with automatic standard recognition, selectable pH buffer groups (NIST, DIN, GB), and customizable pH standards, it also provides automatic electrode diagnostics with real-time pH slope and offset display. With USB or RS-232 communication and IP54 waterproof protection, the instrument delivers reliable performance for laboratory and routine applications.

Specification

Model		PH600L
Parameters		pH/Temp.(mV/ORP)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Standard Recognition	NIST, GB, DIN buffers
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	±0.03%FS
Temperature	Range	-5 to 130 ºC
	Resolution	0.1
	Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	6-pin Mini-DIN
Outputs	USB, RS 232	USB 2.0 flash memory device, printer, PC
Data Storage		1000 Groups
Power		AC Adapter, 100-240V AC input, DC24V output
IP Rating		IP54
Dimensions		280×280×130 mm
Weight		2500g (5.51 lb)

FEATURES
Display: Color high contrast LCD touchscreen, 7.0 inches.
System: Intelligent operation system provides features including user management, calibration management, method management, data management, etc.
Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
Accuracy: Automatic/Manual temperature compensation ensures accurate results.
Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps users review, compare, and recalculate results.
Connectivity: Support for USB or RS-232 communication.
Recovery: Reset feature automatically resumes all settings to factory default options.
Protection: IP54 waterproof.
Calibration: 1–6 points calibration with standard recognition.
Standards: Selectable pH buffer groups, including NIST, DIN, and GB.
Customization: Support for pH standard group customization.
Diagnostics: Automatic electrode diagnosis with pH slope and offset display.
