Reliable Flow and Pressure Monitoring for a Municipal Water Project in Ecuador
Electromagnetic flow measurement supports continuous monitoring at an outdoor outlet pipeline
-
Project Overview
A municipal water project in Ecuador required a dependable way to monitor both instantaneous and accumulated flow at an outlet pipeline. The contractor needed instruments suitable for continuous outdoor operation in a humid environment, with standard analog and digital communication for integration into the monitoring system.

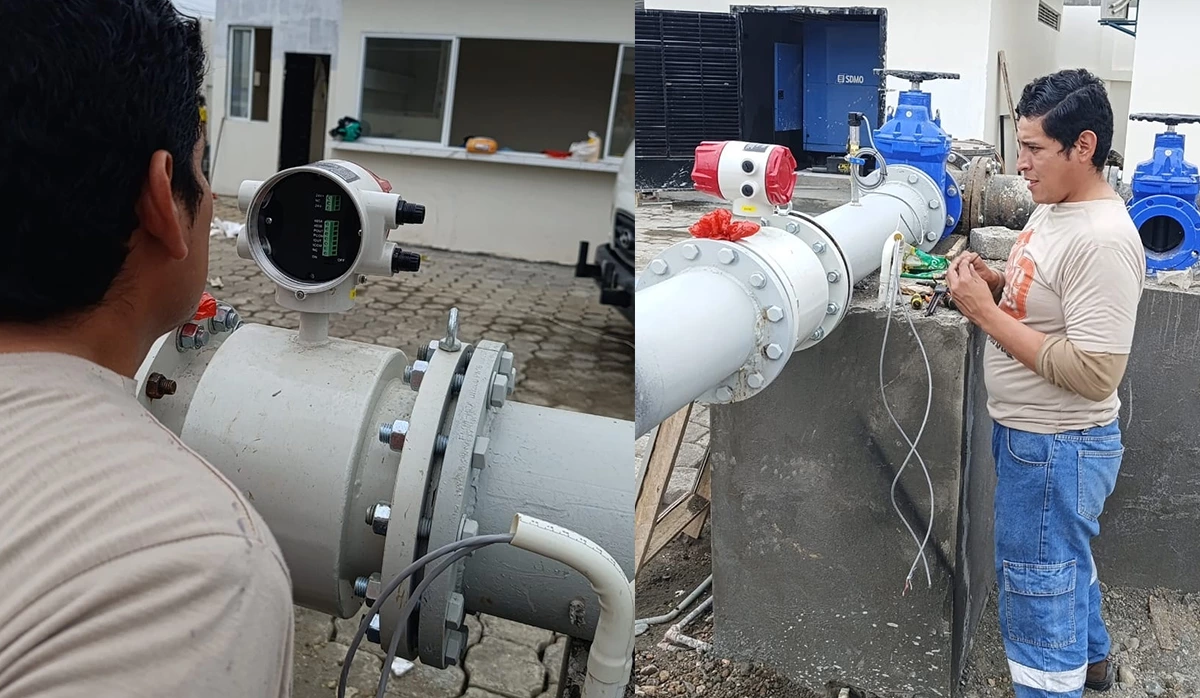

Supmea supplied an electromagnetic flowmeter together with a pressure transmitter. The selected configuration combined a rubber-lined flow sensor, IP65 protection, 4-20 mA output, and RS485 communication to support real-time flow and pressure visibility across the specified operating range.
-
Customer Challenges
- Obtain real-time flow values and accumulated flow totals from the outlet pipeline.
- Maintain reliable measurement across a wide flow range in an outdoor, humid installation environment.
- Meet the project requirement for qualified equipment, fast delivery, and warranty.
-
Application Conditions
| Medium | Tap water |
| Pipe size | DN200 |
| Temperature | 10-40°C |
| Pressure | 0.5 MPa |
| Flow range | 56-560 m³/h |
| Installation | Outlet pipeline |
| Communication | 4-20 mA / RS485 |
| Environment | Outdoor and humid |
-
Supmea Solution
The measurement package was selected around the hydraulic conditions, installation environment, and required system outputs. The electromagnetic flowmeter provides continuous volumetric flow measurement for conductive water without introducing a moving component into the flow path. A pressure transmitter complements the flow measurement by providing pipeline pressure data at the same monitoring point.
Products and Configuration

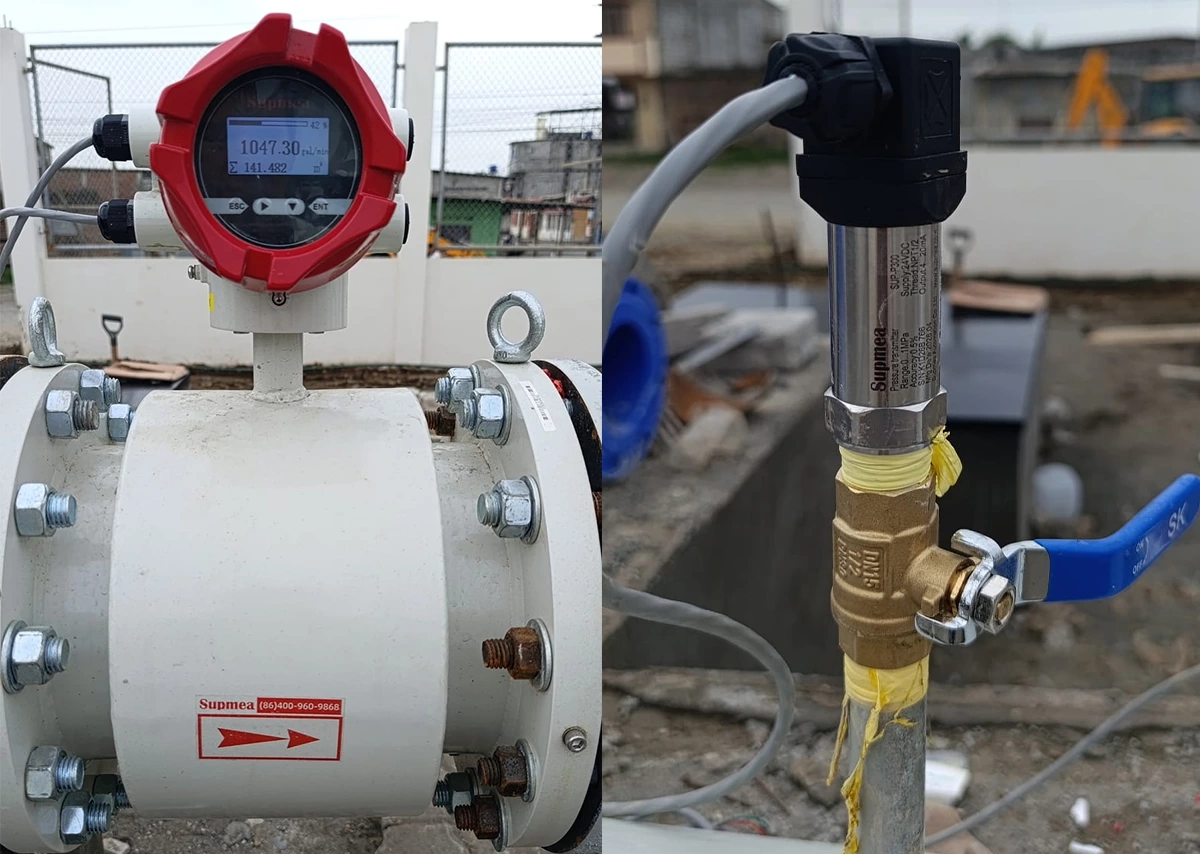

| Electromagnetic flowmeter | LDG-SUP-A100; 1 unit |
| Pressure transmitter | SUP-P300; 1 unit |
| Key flowmeter configuration | Rubber liner, IP65 protection, 4-20 mA output |
| Selection reasons | Fast delivery and fully qualified configuration |
Delivery and Service Support
-
Application review and instrument selection based on pipe size, medium, flow range, and site environment.
-
Installation guidance to support correct mechanical and electrical setup.
-
With expedited handling for the urgent project schedule.
-
After-sales warranty for continued project support.
-
Measured Results
OUTCOME SUMMARY：According to customer feedback, the installed system met the project’s flow and pressure monitoring requirements and passed inspection.
-
Flow measurement accuracy: ±0.5% of full scale.
-
Measurement requirements were met across the stated velocity range of 0.5-5 m/s.
-
A 20% faster response to water quality changes was reported by the customer.
-
Operation and maintenance costs were reported to be reduced by 20%.
Customer Feedback：
“We just finished the entire project this week, including the installation of the flowmeter and pressure sensor. All the equipment will be ready once the inspection is approved.”
-
Why This Solution Fits Municipal Water Applications
Municipal water networks need stable flow and pressure data for operational control, distribution monitoring, and maintenance planning. By combining electromagnetic flow measurement with pipeline pressure monitoring, operators gain two complementary indicators from the same process area. Standard 4-20 mA and RS485 outputs also simplify connection to local control, display, or supervisory systems.
-
Recommended Products
The following product categories can be presented as related recommendations beneath this case. Final selection should always be confirmed against the medium, pipe size, flow range, pressure, installation conditions, power supply, and required output protocol.
SUP-LDG / A100 Electromagnetic Flowmeter
Recommended as the core flow-measurement option for conductive water in municipal supply, treatment, and distribution pipelines. It is suitable for applications that require continuous flow indication, accumulated flow totals, and integration with a control or monitoring system.
Recommended for monitoring pipeline pressure alongside flow. Combining pressure and flow data helps operators assess pump performance, distribution conditions, abnormal pressure changes, and overall pipeline operation.
Remote Electromagnetic Flowmeter
Recommended when the pipeline is installed in a chamber, low-lying area, or location where the display is difficult to access. Separating the converter from the sensor can improve display visibility and simplify routine operation in challenging installations.
Recommended when the project requires local display, accumulated-flow review, trend records, or centralized data collection in addition to the transmitter outputs. The receiving device should be selected to match the available 4-20 mA or RS485 signal.
Need to monitor water flow and pressure in an outdoor pipeline? Share your medium, pipe size, flow range, pressure, lining requirement, power supply, and communication protocol with our engineering team for product selection support.
