Name: Plastic Ball Valve
Brand: Supmea
SKU: 03014
Rating: 4.8 (20 reviews)

Plastic ball valve

Supmea plastic ball valves — True Union / Compact design in UPVC, CPVC, PP and PVDF with PTFE ball seats. 90° quick operation, zero-leakage sealing for pure water, chemical dosing and industrial fluid systems.

Characteristics

True Union double-union design
PTFE ball seat + EPDM/FPM O-ring
Full bore straight-through flow path
90° quick open/close operation
Multiple end connections
UPVC economical / PVDF high-temperature
Optional ISO 5211 mounting pad
Traceable material grades

Technical Specifications

Parameter	Specification
Design Standard	ISO 16135 / DIN 3357
End Connection	Socket / Thread / Flange
Nominal Diameter	DN15 ~ DN100
Nominal Pressure	PN10 / PN16
Temperature Range	0°C ~ 60°C (UPVC) / up to 100°C (PVDF)
Body Material	UPVC / CPVC / PP / PVDF
Ball Material	PP / PVDF / PTFE
Seat / Seal	PTFE / EPDM / FPM
Operation	Lever Handle
Actuator Mount	ISO 5211 Pad (Optional)
Union Type	True Union (Double Union)
Ball Port	Full Bore / Reduced Bore
Flow Direction	Bi-directional
Leakage Class	Zero Leakage (PTFE Seat)
Installation	Horizontal / Vertical

Key Features

True Union double-union design — quick disassembly for maintenance without removing entire valve
PTFE ball seat + EPDM/FPM O-ring — dual sealing, zero-leakage guarantee
Full bore straight-through flow path — minimal fluid resistance, no turbulence or pressure drop
90° quick open/close operation — lever handle with lockable position to prevent misoperation
Multiple end connections — Socket / Thread / Flange options for any piping system
UPVC economical / PVDF high-temperature — material selection matched to application

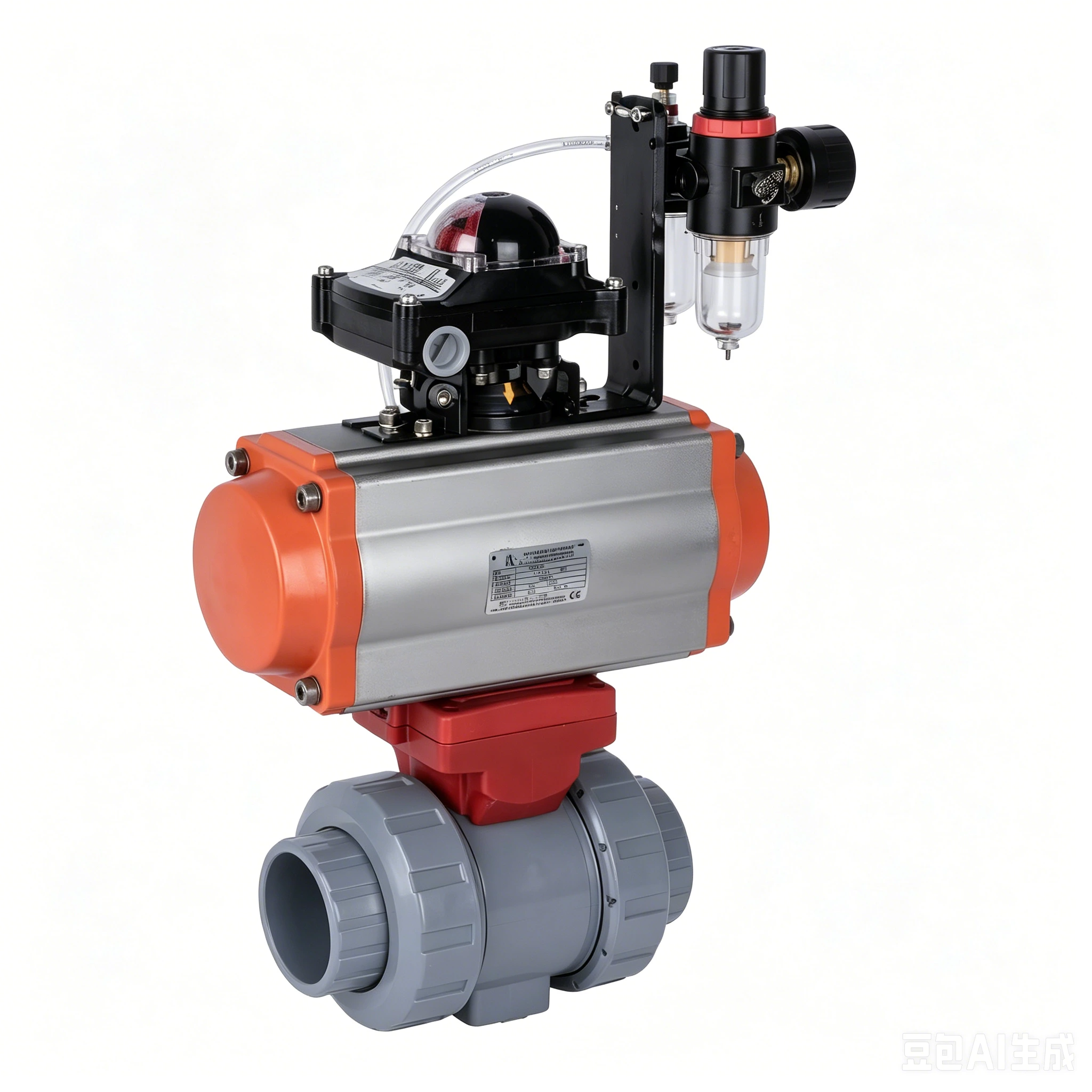

Optional ISO 5211 mounting pad — retrofit for electric/pneumatic actuator automation
Traceable material grades — all resin compounds certified for potable water / chemical grade

Available Models

Model	Description

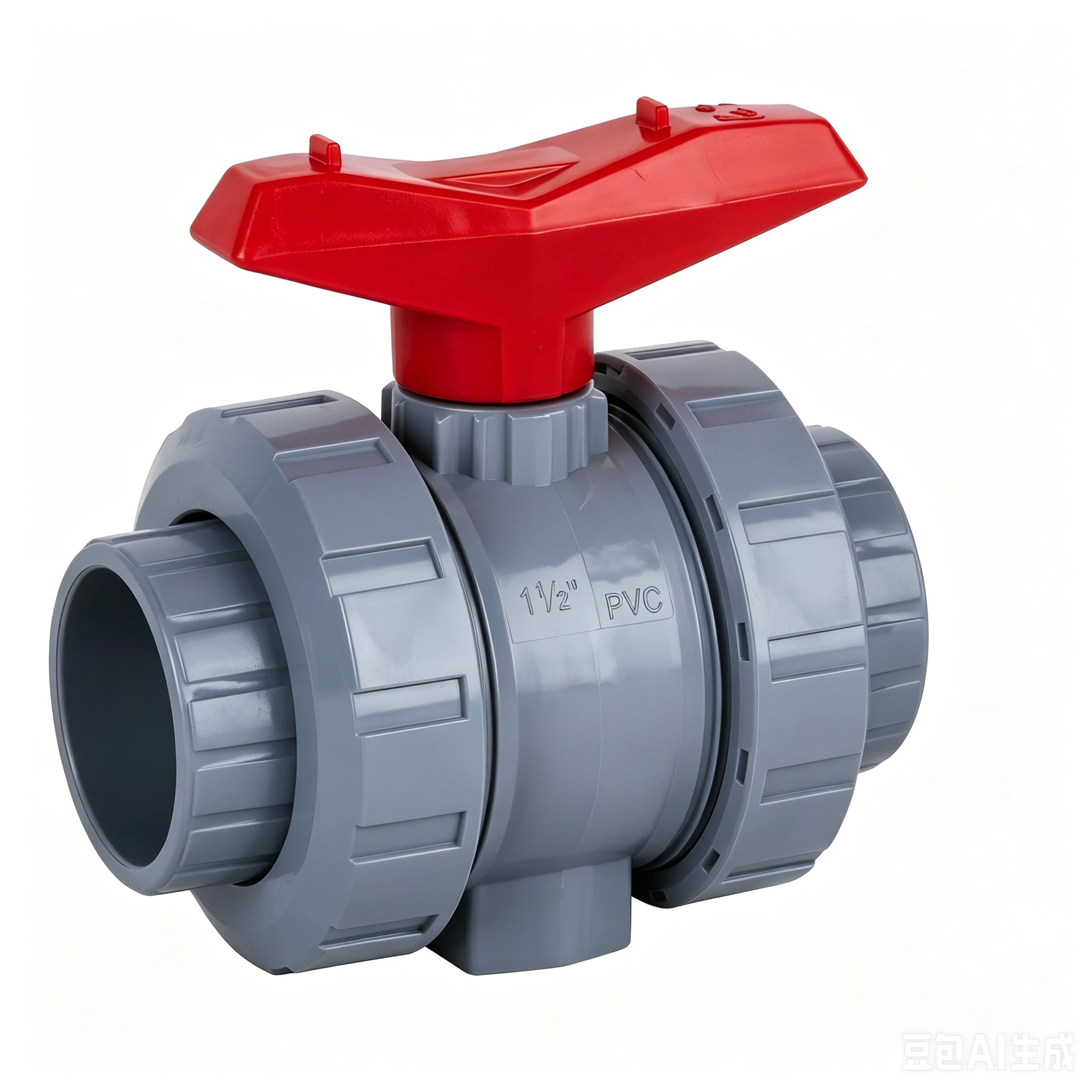

True Union Ball Valve	Standard union-type construction with double union nuts for quick inline removal and maintenance. UPVC/CPVC/PP/PVDF body, DN15–DN100.
Compact Ball Valve	One-piece compact design for space-constrained installations. UPVC/PP body, DN15–DN50. Socket/thread end options.
3-Way Ball Valve	L-Port / T-Port flow switching for mixing/diverting applications. UPVC/PP/PVDF, DN15–DN80. Socket/thread connections.

Technical Data

Dimension Data – True Union Type (PN10, DN15 ~ DN100)

DN	15	20	25	32	40	50	65	80	100
d (mm)	15	20	25	32	40	50	65	80	100
L (mm)	120	130	150	170	190	220	260	300	350
H (mm)	78	85	95	105	118	135	158	175	205
M (mm)	140	140	160	180	220	260	320	350	400
D (Flange)	95	105	115	140	150	165	185	200	220
