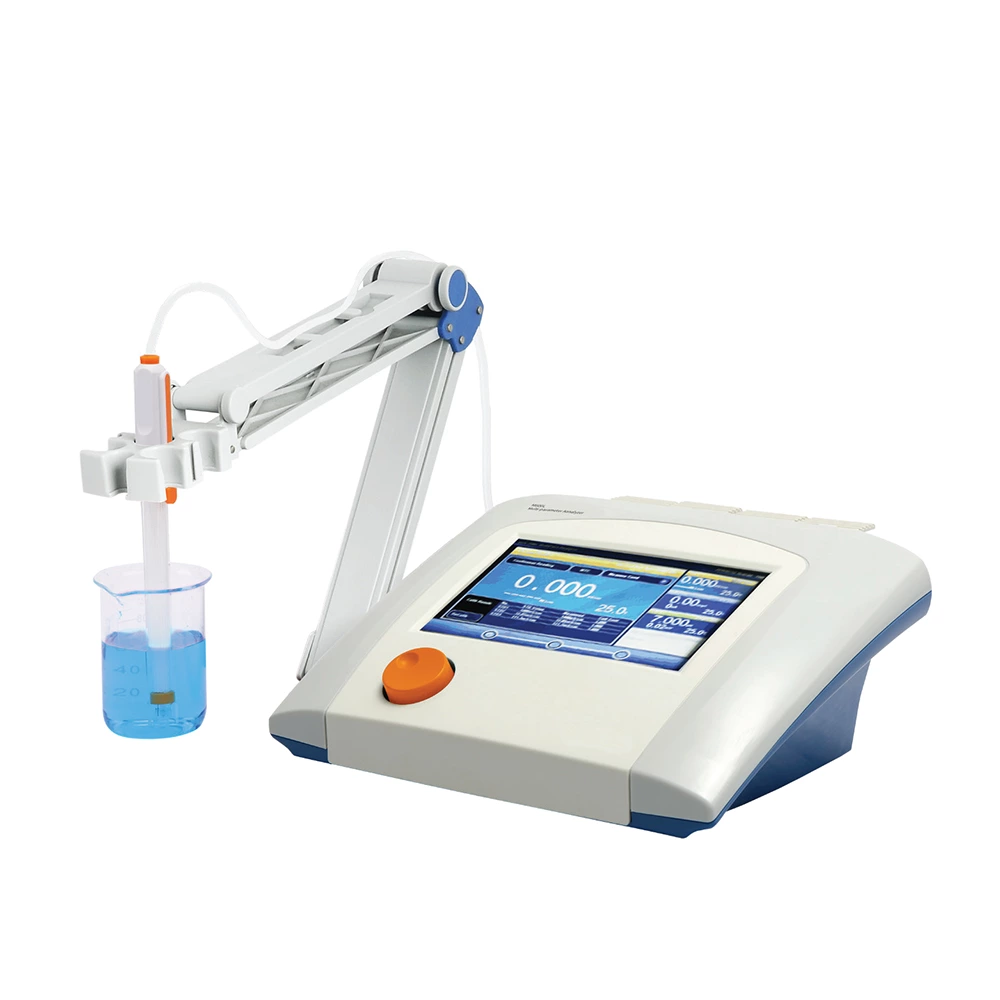

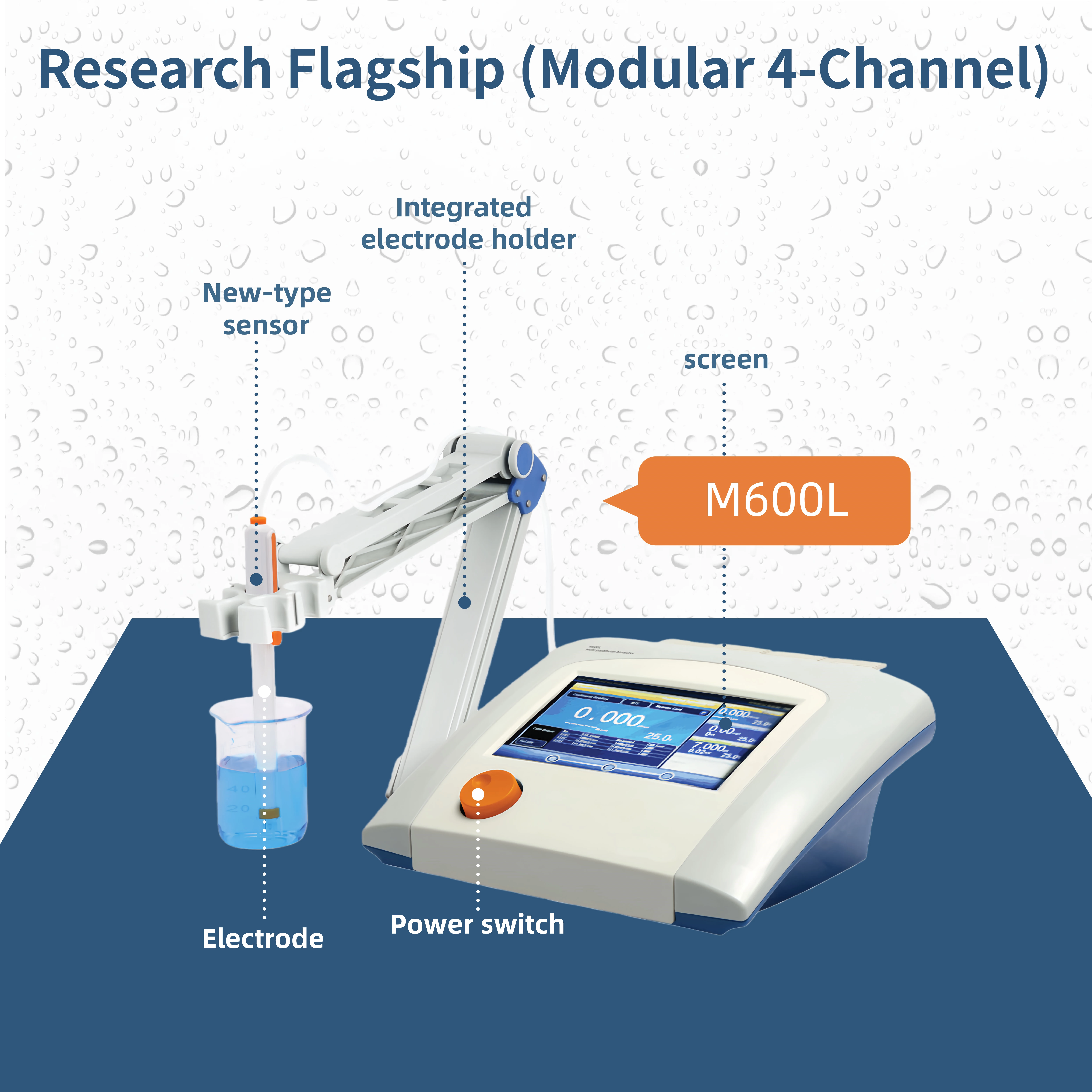

M600L Benchtop Multi-parameter Meter

A flexible, modular touchscreen analyzer with four configurable channels, supporting pH/ISE, conductivity, and dissolved oxygen measurements, combined with intelligent data management, GLP-compliant storage, and reliable performance for laboratory and routine applications.

Characteristics

Parameters: pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

Data Storage: 1000 Groups

IP Rating: IP54

Outputs: USB 2.0 flash memory device, printer, PC

Introduction

This modular analyzer features a 7.0-inch high-contrast LCD touchscreen and an intelligent operating system for efficient user, calibration, method, and data management. It supports multiple reading modes, including auto-read, timed-read, and continuous-read, with automatic or manual temperature compensation to ensure accurate results. The instrument provides GLP-compliant storage of up to 1,000 data sets per parameter, along with data analysis functions for reviewing and recalculating measurements. Designed with flexibility in mind, it supports three interchangeable modules—pH/ISE, conductivity, and dissolved oxygen—allowing four channels to be freely configured in any combination to meet diverse application requirements. USB or RS-232 communication and IP54 waterproof protection further enhance reliability and usability.

Specification

Model		M600L
Parameters		pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	± 0.002 pH
mV/ORP	Range	-2000.00 to 2000.00 mV
	Resolution	0.1, 0.01 mV
	Accuracy	± 0.03%FS
pX	Range	-2.000 to 20.000 pX
	Resolution	0.1, 0.01, 0.001 pX
	Accuracy	± 0.002 pX
ISE	Range	1.000e-9 to 9.999e+9
	Resolution	Up to 4 significant digits
	Accuracy	± 0.3%
Conductivity	Range	0.000 μ S/cm to 3000 mS/cm
	Resolution	0.001 μ S/cm minimum, various with range selection
	Accuracy	± 0.5% FS
Resistivity	Range	5.00 Ω ·cm~100.0 M Ω ·cm
	Resolution	0.01 Ω ·cm minimum
	Accuracy	± 0.5% FS
TDS	Range	0.000 mg/L~1000 g/L
	Resolution	0.001ppm minimum, changed with range
	Accuracy	± 0.5% FS
Salinity	Type	NaCl%
	Range	(0.00~8.00)%
	Resolution	0.01%
	Accuracy	± 0.1%
% Saturation -Polarographic	Range	(0.0 to 600)%
	Resolution	0.10%
	Accuracy	± 2.0%
Temperature Range		-5 to 130 ºC
Data Storage		1000 Groups

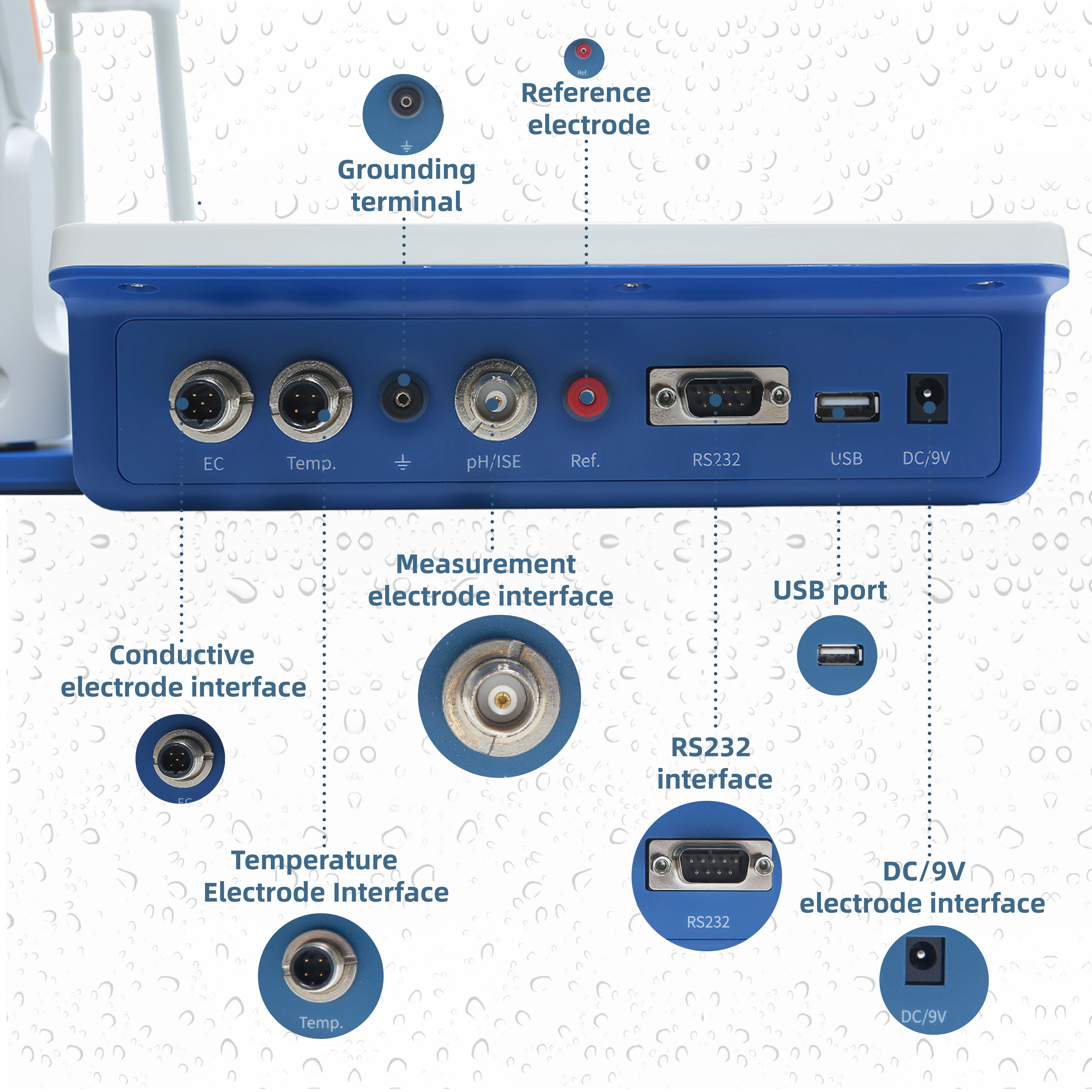

Inputs	pH Electrode	BNC(Q9)
	DO with Temp. Probe	6-pin Mini-DIN
	Conductivity with Temp. Probe	8-pin Mini-DIN
Outputs	USB, RS 232	USB 2.0 flash memory device, printer, PC
IP Rating		IP54
Power		AC Adapter, 100-240V AC input, DC24V output
Dimensions		280 × 280 × 130 mm
Weight		2500g (5.51 lb)

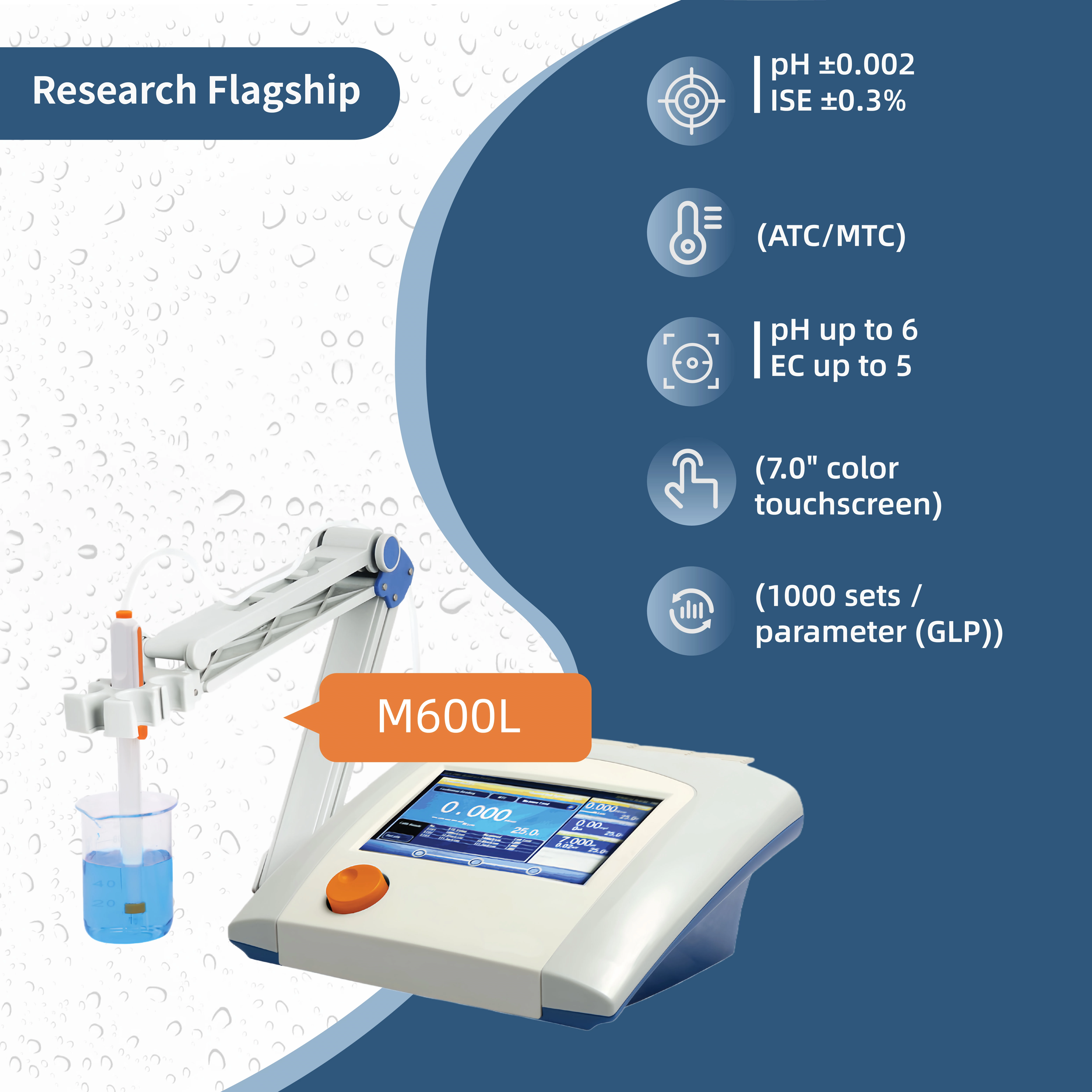

FEATURES
Display: Color high contrast LCD touchscreen, 7.0 inches.
System: Intelligent operation system provides features including user management, calibration management, method management, data management, etc.
Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.

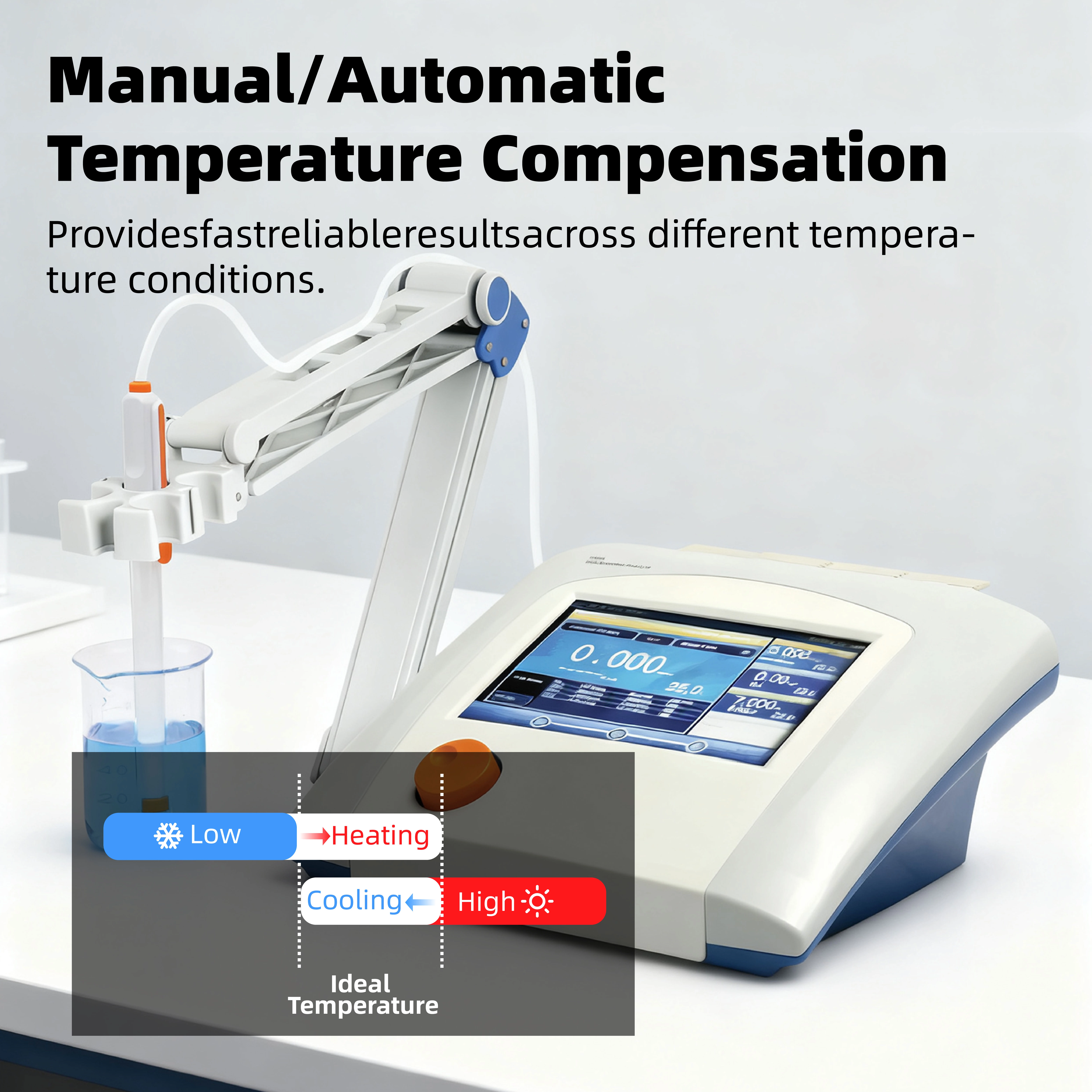

Accuracy: Automatic/Manual temperature compensation ensures accurate results.
Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps users review, compare, and recalculate results.
Connectivity: Support for USB or RS-232 communication.
Recovery: Reset feature automatically resumes all settings to factory default options.
Protection: IP54 waterproof.
Modularity: Support for three modules: pH/ISE module, conductivity module, and dissolved oxygen module.
Customization: Select from three modules to customize the four channels as needed.
Flexibility: Four channels can be configured in any combination.
