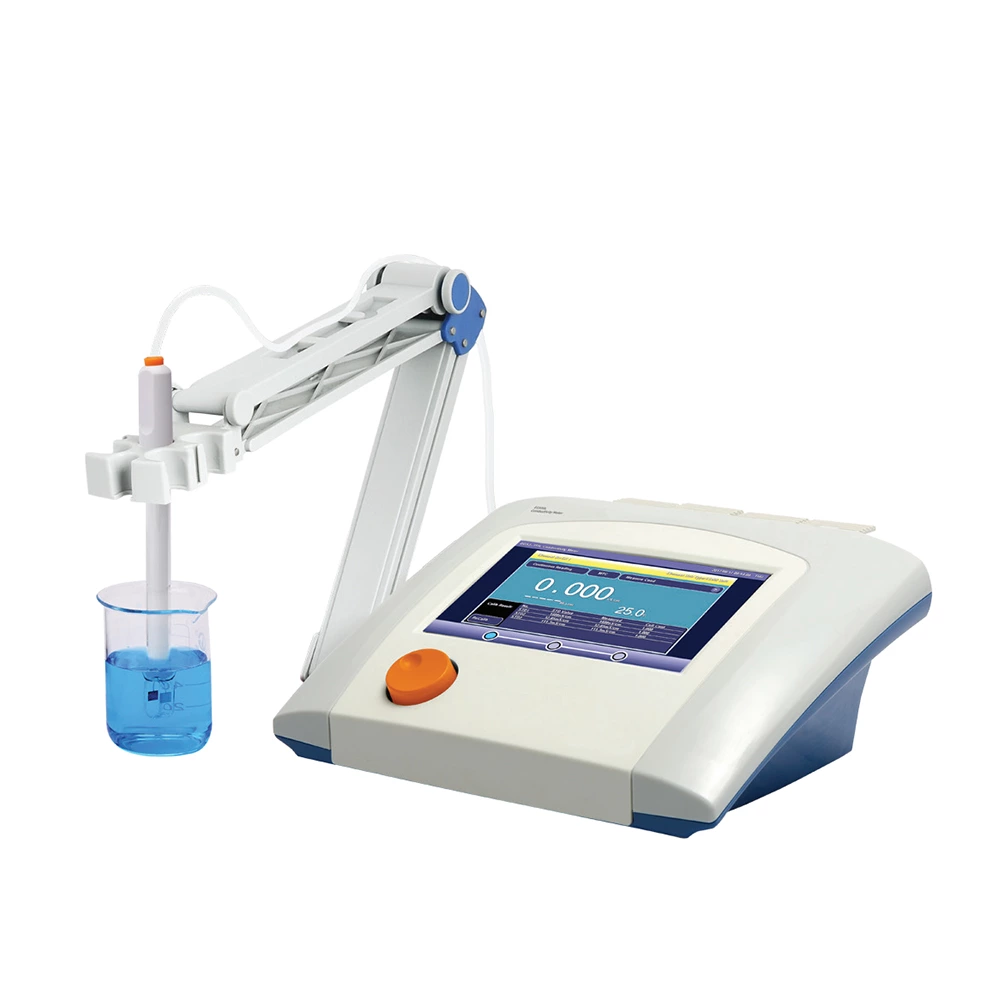

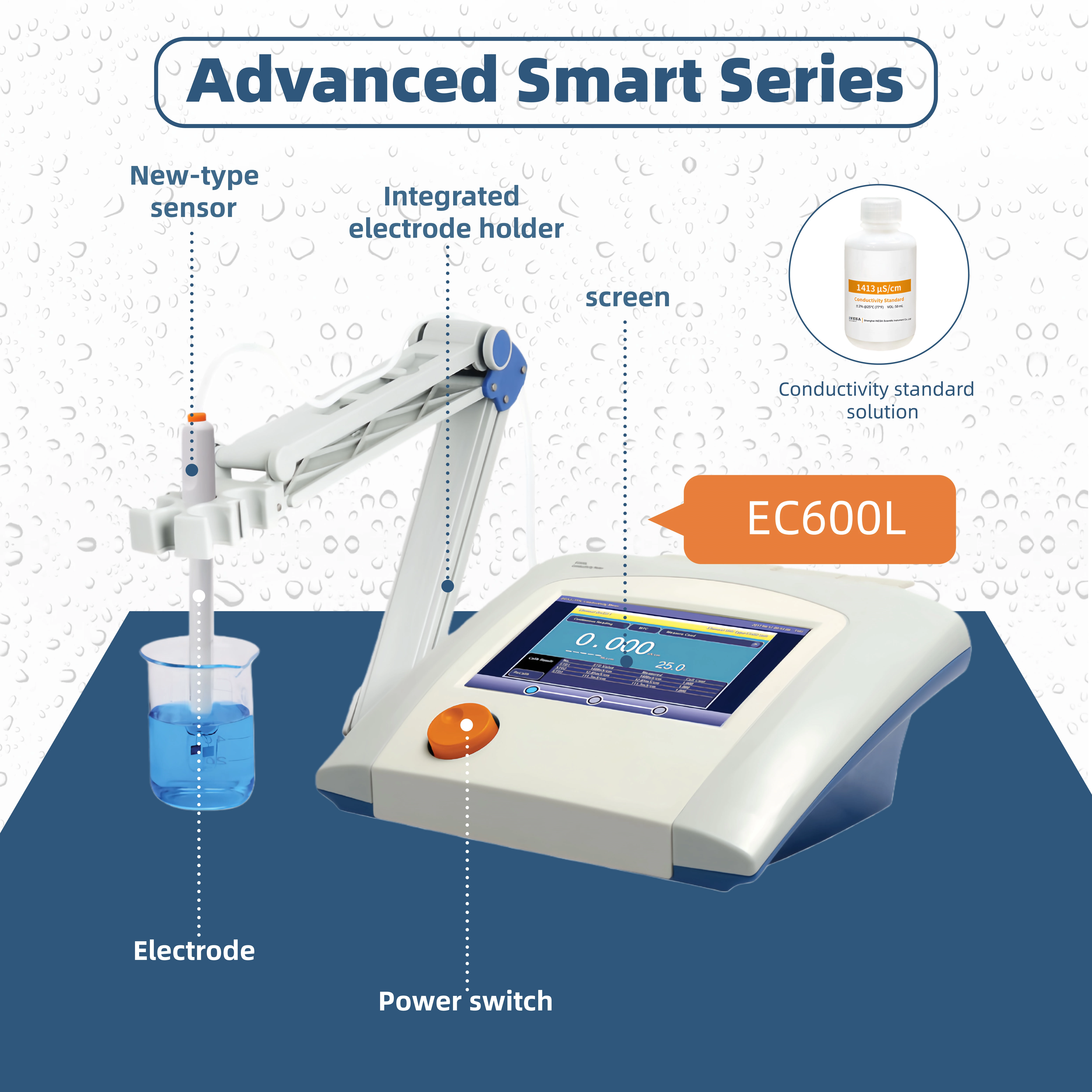

EC600L Benchtop Conductivity Meter

A versatile and reliable measurement device with a touchscreen interface, multiple reading modes, temperature compensation, GLP-compliant data storage, and connectivity options, ideal for accurate and convenient laboratory or field applications.

Characteristics

Power: AC Adapter, 100-240V AC input, DC24V output

Data Storage: 1000 Groups

Outputs: USB 2.0 flash memory device, printer, PC

IP Rating: IP54

Introduction

This high-precision measurement device features a 7.0-inch high-contrast LCD touchscreen and an intelligent operation system for easy management of users, calibration, methods, and data. It supports multiple reading modes—auto, timed, and continuous—and ensures accurate results with automatic or manual temperature compensation. The device stores up to 1,000 GLP-compliant data sets per parameter, provides data analysis for review and comparison, and offers USB or RS-232 connectivity. With IP54 waterproofing and flexible calibration options, it is designed for reliable and convenient laboratory or field use.

Specification

Model		EC600L
Parameters		EC/Temp.(Resistivity/TDS/Sal.)
Conductivity	Range	0.000 μ S/cm to 3000 mS/cm
	Resolution	0.001 μ S/cm minimum, various with range selection
	Accuracy	± 0.5% FS
	Reference Temperature	5, 10, 15, 18, 20, 25 ºC
Resistivity	Range	5.00 Ω ·cm~100.00 M Ω ·cm
	Resolution	0.01 Ω ·cm minimum
	Accuracy	± 0.5% FS
TDS	Range	0.000 mg/L~1000 g/L
	Resolution	0.001ppm minimum, changed with range
	Accuracy	± 0.5%FS
Salinity	Type	NaCl%
	Range	(0.00~8.00)%
	Resolution	0.01%
	Accuracy	± 0.1%
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
	GLP Features	Yes
	Log Management	Yes

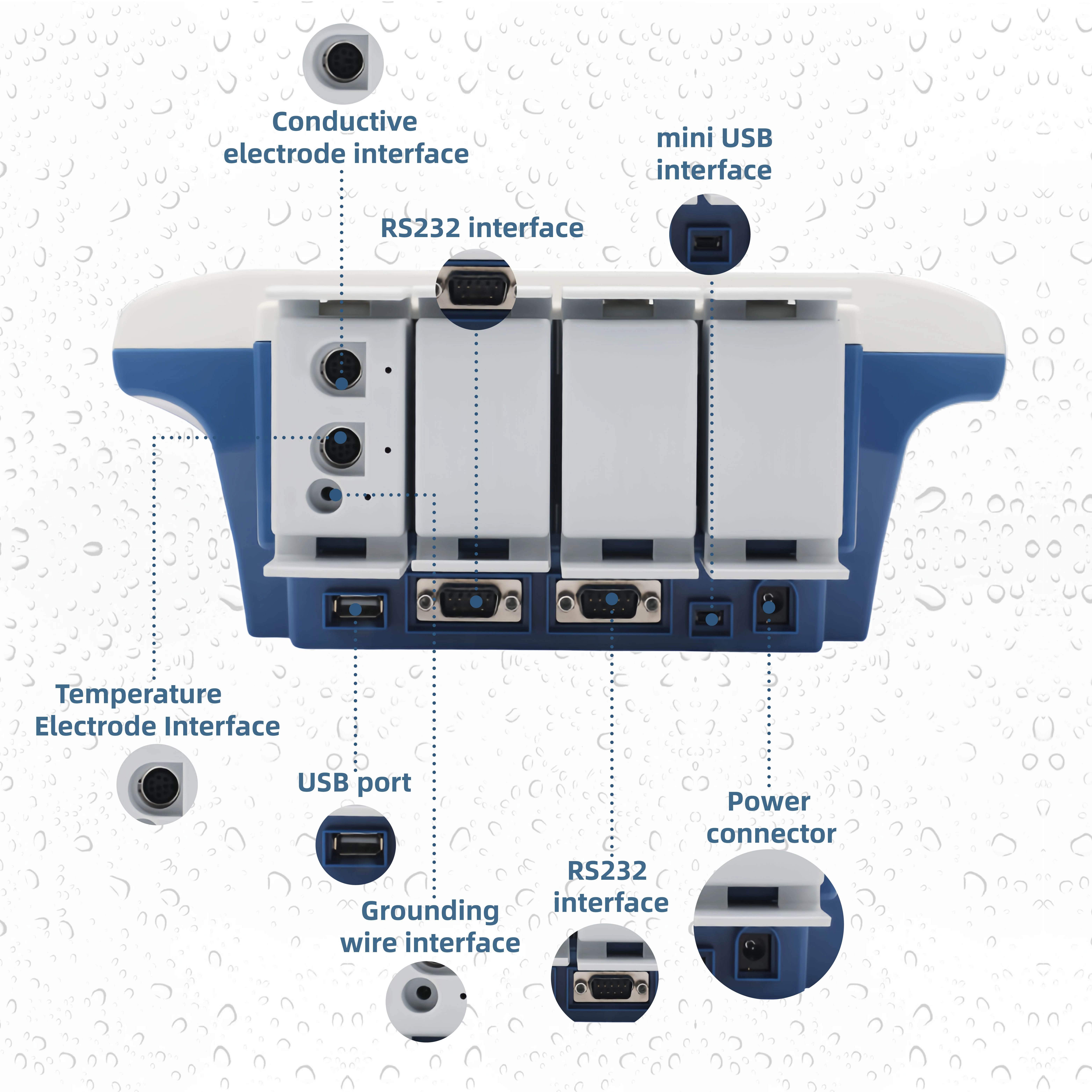

Inputs	Temp. Probe	6-pin Mini-DIN
Inputs	Conductivity Probe	8-pin Mini-DIN
Outputs	USB, RS 232	USB 2.0 flash memory device, printer, PC
Temperature Range	-5 to 130 ºC
Power	AC Adapter, 100-240V AC input, DC24V output
IP Rating	IP54
Dimensions	280 × 280 × 130 mm
Weight	2500g (5.51 lb)

FEATURES
Display: Color High contrast LCD touchscreen, 7.0 inches.
System: Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
Reading: Multi-reading feature allows auto-read, timed-read and continuous-read.

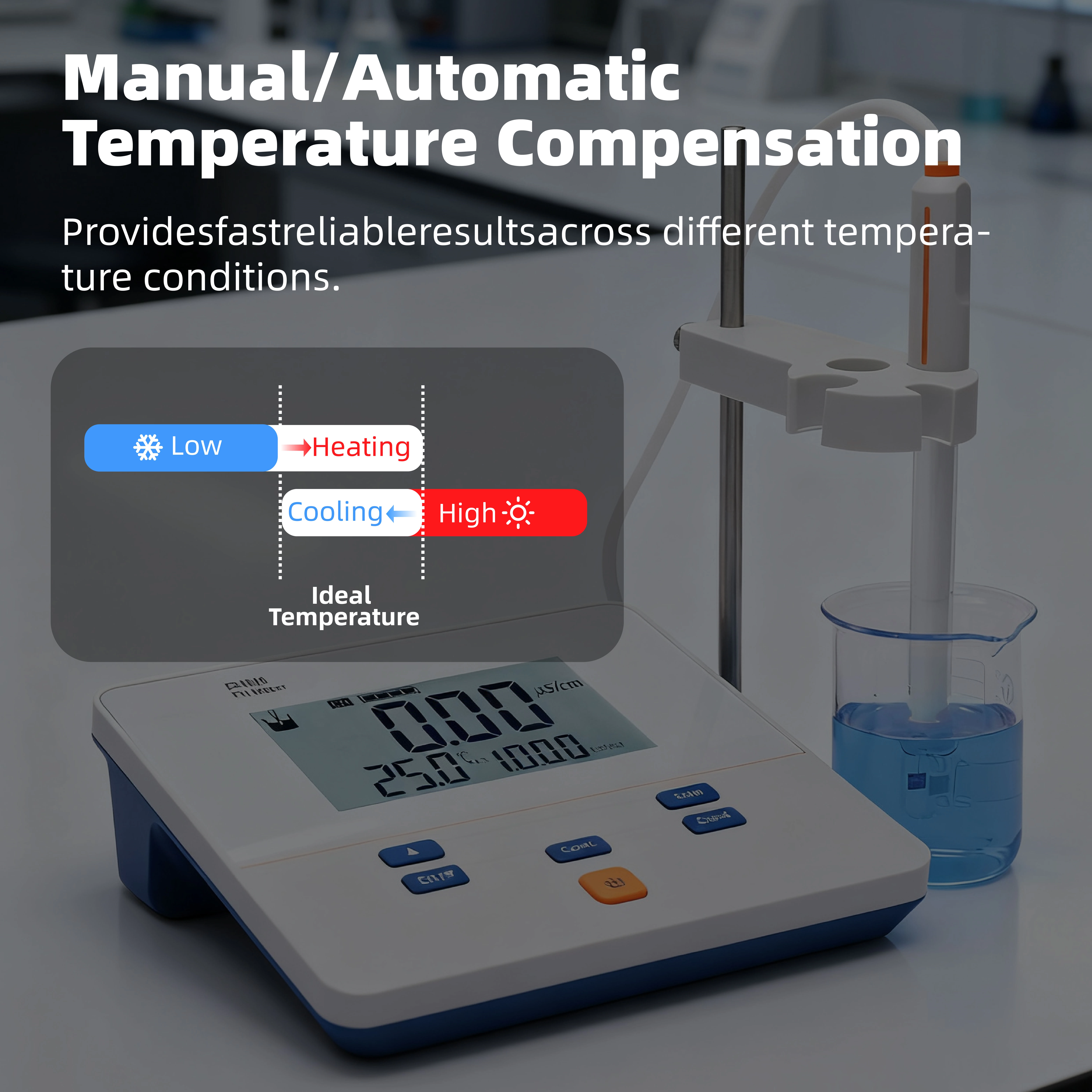

Compensation: Automatic/Manual temperature compensation ensures accurate results.
Storage: Data Storage 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps user review, compare and recalculate results.
Communication: Support for USB or RS-232 communication.
Reset: Reset feature automatically resumes all settings back to factory default options.
Protection: IP54 waterproof.
Calibration: 1-5 points calibration with Standard Recognition.
Settings: Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Type: Temperature compensation type (none, linear, pure water).
