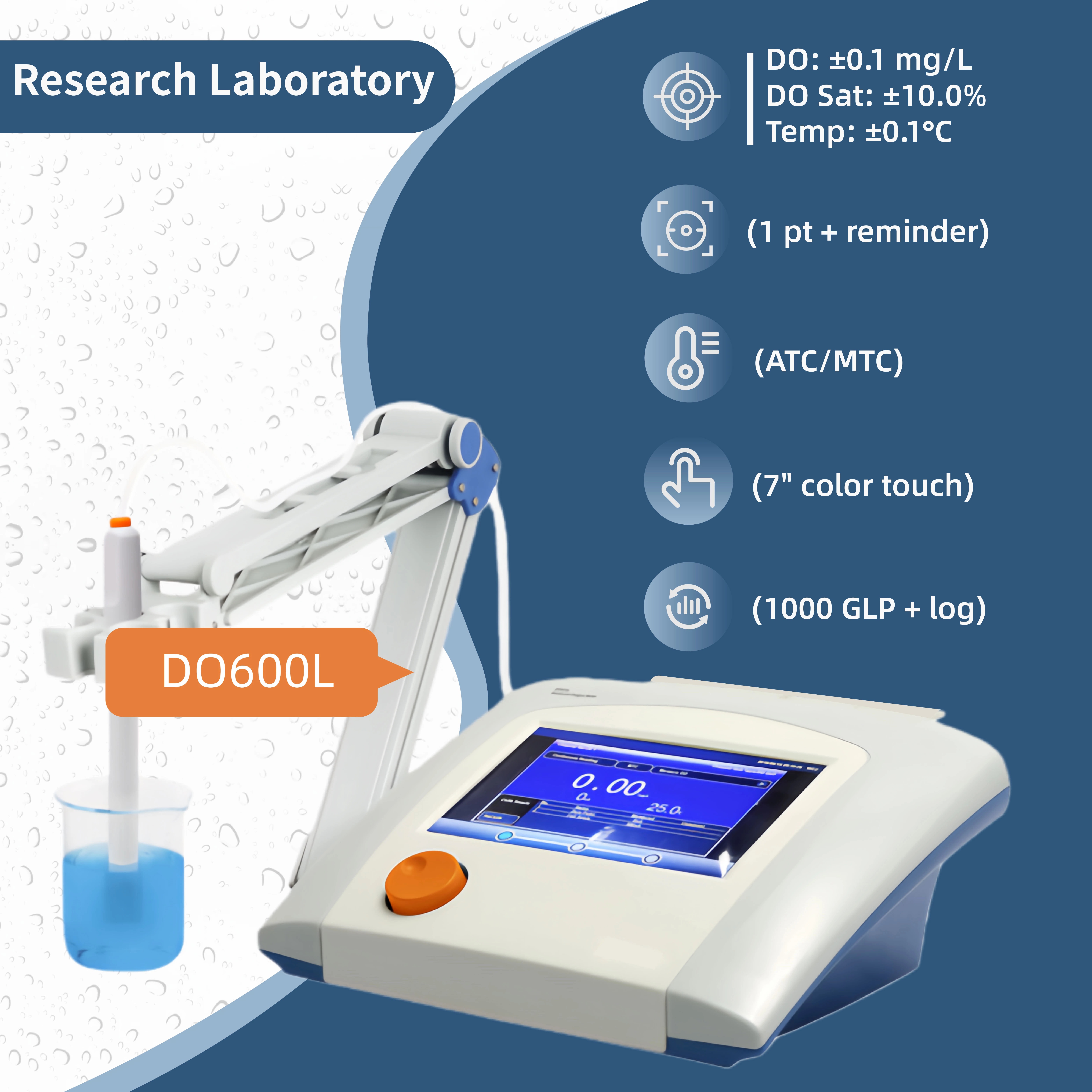

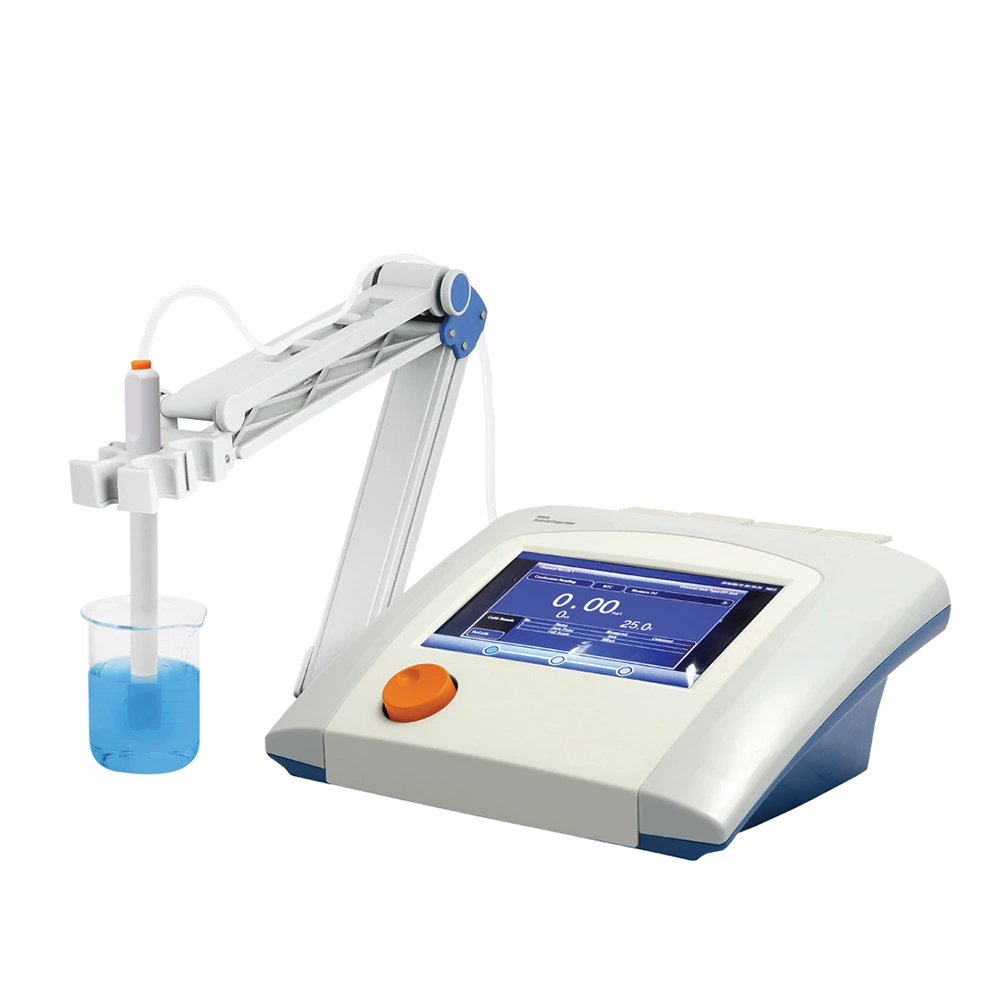

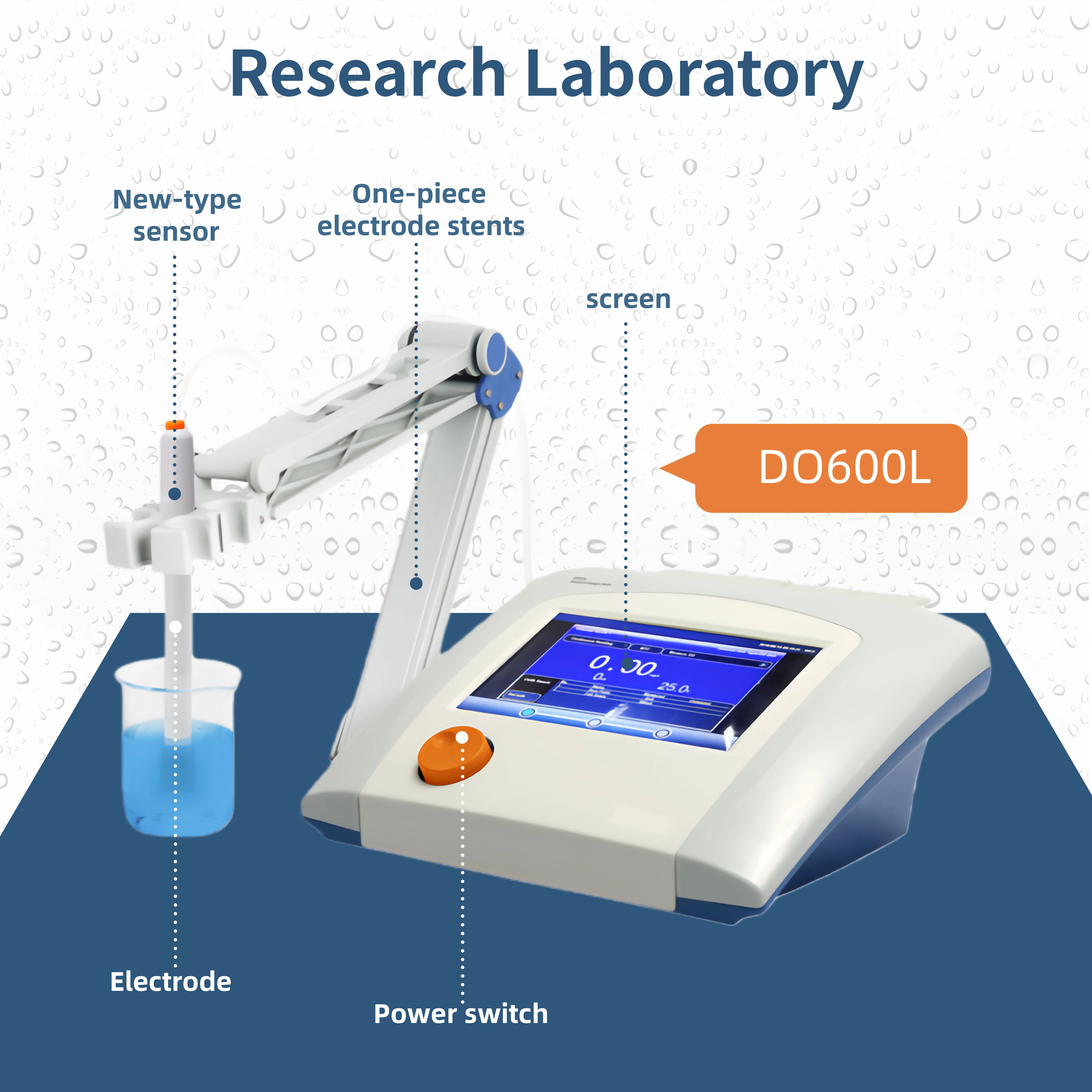

DO600L Benchtop Dissolved Oxygen Meter

A high-performance touchscreen analyzer with flexible reading modes, temperature compensation, advanced dissolved oxygen correction functions, GLP-compliant data storage, and multiple communication options, designed for accurate and dependable water quality measurements.

Characteristics

Data Storage: 1000 Groups

Power: AC Adapter, 100-240V AC input, DC24V output

IP Rating: IP54

Outputs: USB 2.0 flash memory device, printer, PC

Introduction

This instrument is equipped with a 7.0-inch high-contrast LCD touchscreen and an intelligent operating system that supports user, calibration, method, and data management. It offers multiple reading modes, including auto-read, timed-read, and continuous-read, and ensures measurement accuracy through automatic or manual temperature compensation. The device supports GLP-compliant storage of up to 1,000 data sets per parameter and provides data analysis functions for reviewing and recalculating results. With USB or RS-232 communication, IP54 waterproof protection, dissolved oxygen calibration using air-saturated water or zero oxygen, automatic barometric pressure compensation, and manual salinity factor correction, it is well suited for reliable laboratory and routine field applications.

Specification

Model		DO-600L
Parameters		DO/Temp(DO Saturation)
Dissolved Oxygen Concentra- tion	Range	0.00 to 99.99 mg/L
	Resolution	0.01 mg/L
	Accuracy	± 0.1 mg/L
	Calibration Points	Air-saturated water or zero point
	Sensor Type	Polarographic
	Calibration Reminder	Yes
	Barometric Compensation	Yes
	Manual Salinity Factor Correction	Yes
DO Saturation	Range	(0.0 to 600)%
	Resolution	0.10%
	Accuracy	± 10.0%
Temperature	Range	-5 to 130 ºC
	Resolution	0.1
	Accuracy	± 0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC

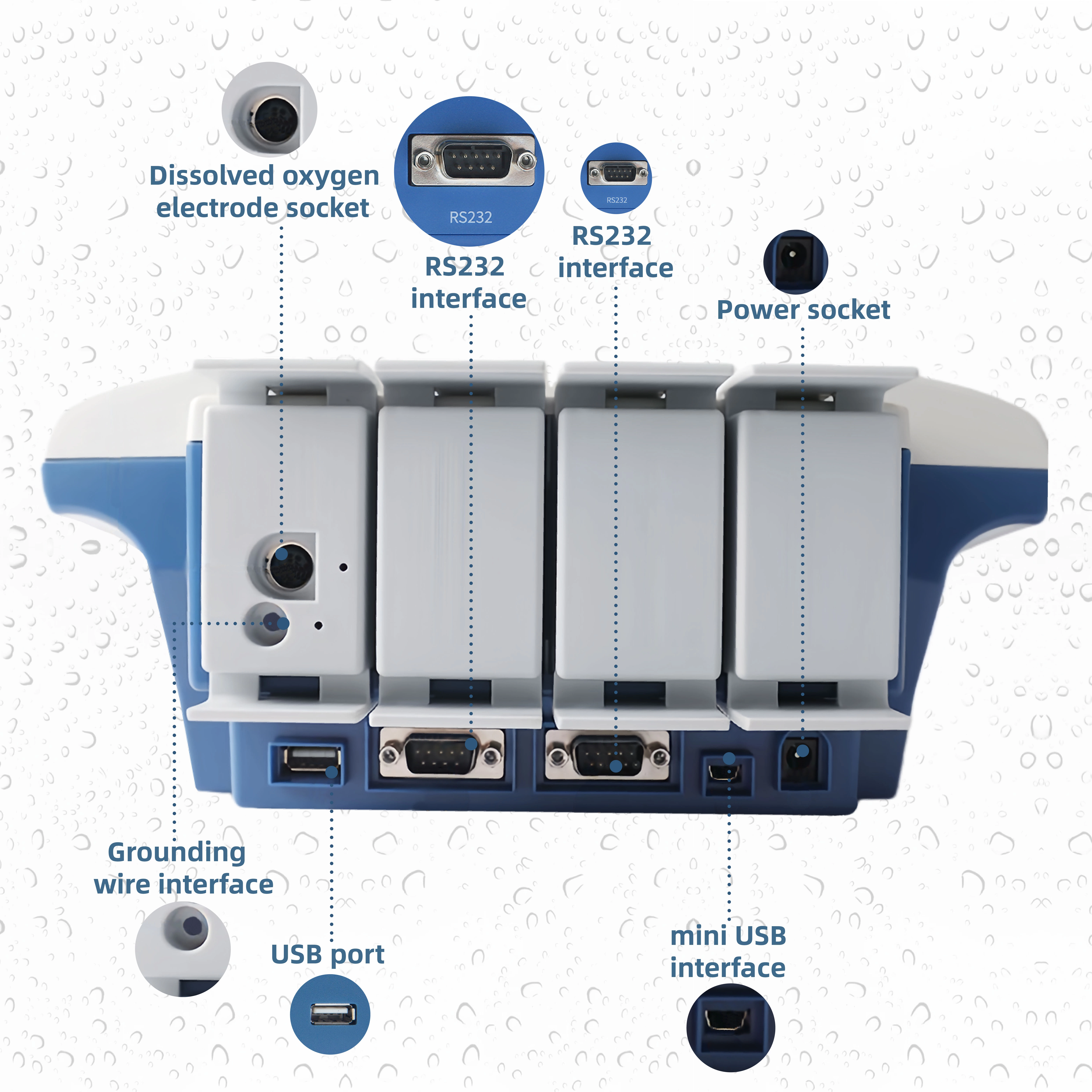

Inputs	DO with Temp. Probe	6-pin Mini-DIN
Outputs	USB, RS 232	USB 2.0 flash memory device, printer, PC
Data Storage		1000 Groups
Power		AC Adapter, 100-240V AC input, DC24V output
IP Rating		IP54
Dimensions		280 × 280 × 130 mm
Weight		2500g (5.51 lb)

FEATURES
Display: Color high contrast LCD touchscreen, 7.0 inches.
System: Intelligent operation system provides features including user management, calibration management, method management, data management, etc.
Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
Accuracy: Automatic/Manual temperature compensation ensures accurate results.
Storage: Data storage of 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps users review, compare, and recalculate results.
Connectivity: Support for USB or RS-232 communication.
Recovery: Reset feature automatically resumes all settings to factory default options.
Protection: IP54 waterproof.
Calibration: Support for air-saturated water or zero oxygen calibration.
Compensation: Automatic barometric pressure compensation.
Correction: Manual salinity factor correction.
Flexibility: Selectable pressure units including kPa, mbar, Torr, and atm.
