Multi-Parameter Water Quality Monitoring for a Building Project in Dubai

Continuous water quality monitoring is increasingly important in modern building projects, where multiple parameters need to be tracked reliably while measurement data are integrated into centralized monitoring platforms.

For a building construction project in Dubai, a project support company required a continuous water quality monitoring solution for a DN50 water pipeline. Supmea supplied an MPP1000 multi-parameter water quality analyzer to monitor key parameters including pH, turbidity, residual chlorine, conductivity and dissolved oxygen, providing operators with continuous measurement data for centralized monitoring and cloud-based visualization.

Project at a Glance

The Challenge

The project required several important water quality parameters to be monitored continuously within the building's water system.

Instead of relying only on periodic manual testing, the customer wanted measurement data to remain available throughout operation so that changes in water quality could be detected more quickly.

The main project requirements included:

• Continuous monitoring of multiple water quality parameters

• Measurement connected with the existing pipeline system

• Reliable operation in a humid installation environment

• Centralized acquisition of water quality data

• Communication with the customer's monitoring platform

• Reduced dependence on frequent manual inspection

Using separate instruments for each parameter would also increase installation, integration and maintenance work. The customer therefore needed a more integrated monitoring solution capable of bringing multiple measurements into one system.

Supmea's Solution

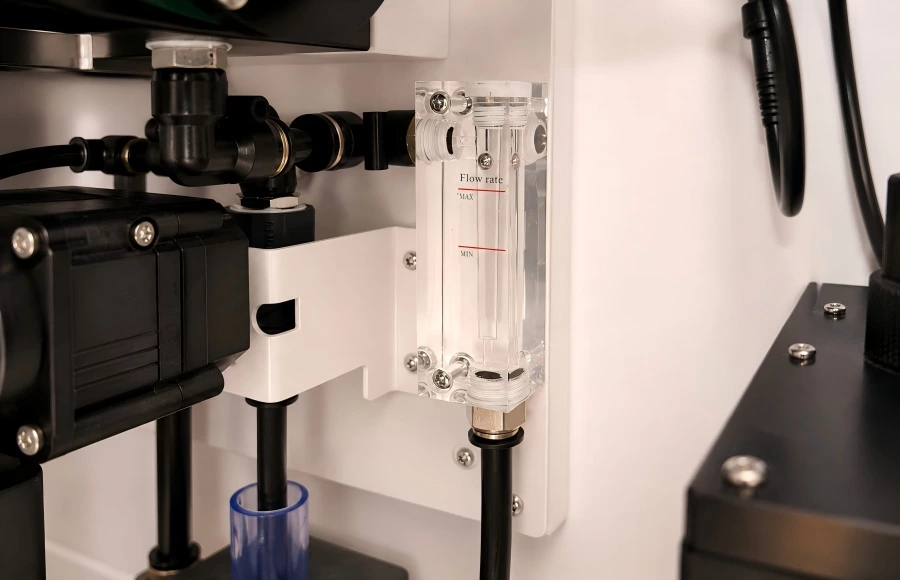

Based on the required monitoring parameters, Supmea supplied a customized MPP1000 multi-parameter water quality analyzer.

The system was configured to monitor the main water quality indicators required by the project, including:

• pH

• Turbidity

• Residual chlorine

• Conductivity

• Dissolved oxygen

The integrated analyzer allowed the customer to bring several water quality measurements together within one monitoring system instead of managing each parameter independently.

The MPP1000 was connected to the project's water monitoring arrangement associated with the DN50 pipeline, where the process pressure was approximately 0.3 MPa and the water remained around room temperature.

An RS485 communication interface enabled measurement data to be transmitted to the customer's data acquisition system. This was particularly important because the customer planned to upload operating data to the cloud and visualize the information through a centralized dashboard.

The customized configuration also helped simplify equipment installation and future operation by combining multiple water quality measurements into one solution.

Delivery and Project Support

In addition to supplying the analyzer, Supmea provided project support throughout equipment selection and implementation, including:

• Application and model selection guidance based on the required water quality parameters

• Configuration support for the customized multi-parameter measurement system

• Online installation guidance during project implementation

• Remote technical support for commissioning and system integration

• Communication guidance for transmitting measurement data to the customer's monitoring platform

This support helped the project team move from equipment selection to continuous online monitoring with less integration work.

Measured Results

After commissioning, the multi-parameter analyzer was placed into continuous operation and measurement data were successfully transferred to the customer's cloud-based monitoring platform.

According to project feedback, the results included:

• Approx. 30% improvement in monitoring efficiency

• Approx. 12% reduction in annual operation and maintenance costs

• Manual inspection frequency reduced from once per day to once per week

• Approximately 86% fewer routine inspection events, calculated from the change from daily to weekly inspection

• Continuous transmission of operating data to the cloud and customer dashboard

The customer also reported that the analyzer had been operating continuously and that measurement data were being uploaded successfully for dashboard visualization.

Continuous data availability gave the operating team a clearer view of water quality conditions while reducing the need for repetitive manual inspections.

Business Value

This project demonstrates how integrated multi-parameter water quality monitoring can simplify measurement and data management in building water systems.

By combining pH, turbidity, residual chlorine, conductivity and dissolved oxygen monitoring within one system, the customer reduced the complexity associated with managing multiple individual instruments.

Continuous monitoring also replaced part of the routine manual inspection workload. With data transmitted digitally to the customer's cloud platform, operators gained easier access to water quality information and could review operating conditions through a centralized dashboard.

The Supmea MPP1000 solution helped the project achieve a practical combination of multi-parameter measurement, continuous monitoring, digital data integration, reduced manual workload and lower operation and maintenance costs.
