Ultimate Guides for Installing Flow Meters in Pipeline Systems

In many construction or industrial projects, pipelines are often installed underground or in concealed locations, making it challenging to detect issues when they arise. To effectively manage and monitor the flow of substances within pipelines, how to install flow meters is essential.

These devices ensure accurate measurement and control of fluid or gas movement. However, achieving optimal performance requires meticulous attention to installation details. Below, this post from Supmea outlines the critical aspects of flow meter installation, aiming to ensure precision, reliability, and compliance with industry standards.

Consider Pipeline Orientation and Flow Meter Alignment

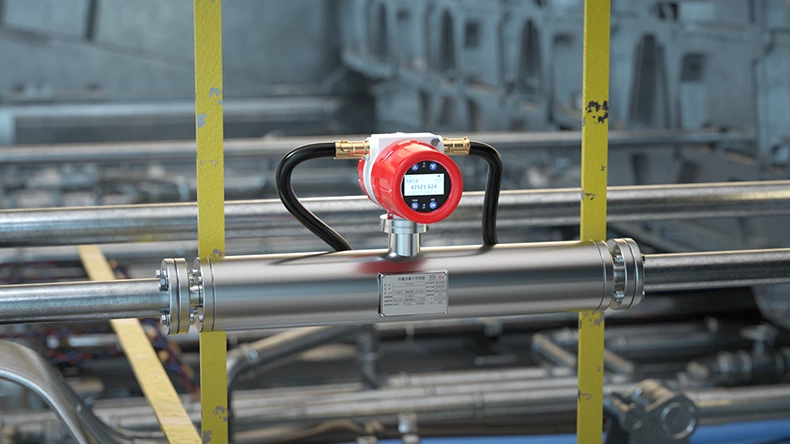

During pipeline installation, the overall structure and layout of the system must be carefully considered to ensure seamless integration of flow meters. One of the most critical factors is the orientation of the flow meter, as it must align harmoniously with the pipeline to function effectively. Proper alignment ensures accurate measurements and long-term reliability.

For instance, the operators must decide whether to install the flow meter vertically or horizontally, as each configuration impacts measurement accuracy differently. Horizontal pipelines, for example, may allow solid particles to settle, which can skew readings.

In such cases, vertical installation is often preferable, as it minimizes sediment interference and provides more accurate data. Understanding the physical properties of the fluid, such as its viscosity, density, or tendency to carry suspended particles, is crucial when determining the optimal installation orientation. By aligning the flow meter with the pipeline’s design and the fluid’s characteristics, you can ensure consistent performance and precise measurements.

When installing flow meters, consider the pipeline’s material and environmental factors. For example, pipelines exposed to extreme temperatures or corrosive substances may require flow meters with specialized coatings or materials to prevent degradation. Additionally, ensure that the flow meter is installed in a location that allows easy access for maintenance without disrupting the pipeline’s operation.

Ensure Proper Fluid Flow Direction

Flow meters are typically designed to operate in a single direction, and reverse flow can damage the device or lead to inaccurate readings. Therefore, it’s critical to align the flow meter with the direction of fluid flow in the pipeline. This alignment not only ensures accurate measurements but also protects the equipment from potential damage caused by backflow.

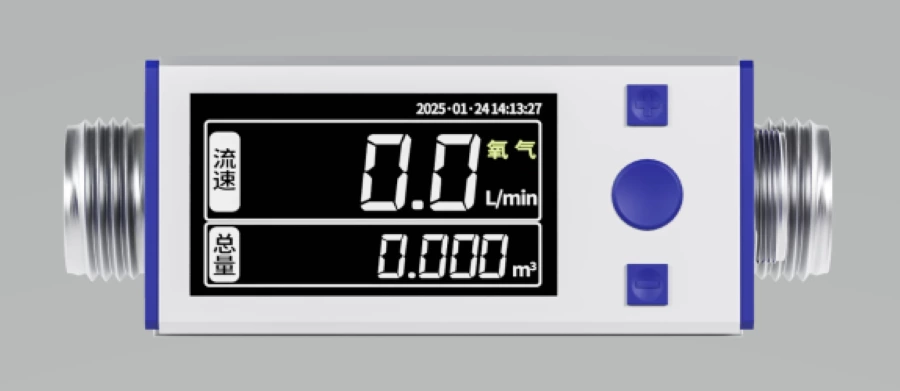

To safeguard the flow meter, especially in systems where reverse flow may occur during idle periods, installing a check valve is highly recommended. A check valve prevents unintended reverse flow, protecting the flow meter and extending its lifespan. For gas flow meters, this precaution is particularly important, as gas systems are more susceptible to pressure fluctuations that could trigger backflow.

Beyond installing check valves, consider implementing a bypass line in complex systems. A bypass allows technicians to redirect flow during maintenance or calibration without interrupting the entire system. Additionally, regular calibration of the flow meter is essential to ensure it continues to provide accurate readings, especially in systems with fluctuating flow rates or variable fluid compositions.

Address Upstream and Downstream Straight Pipe Requirements

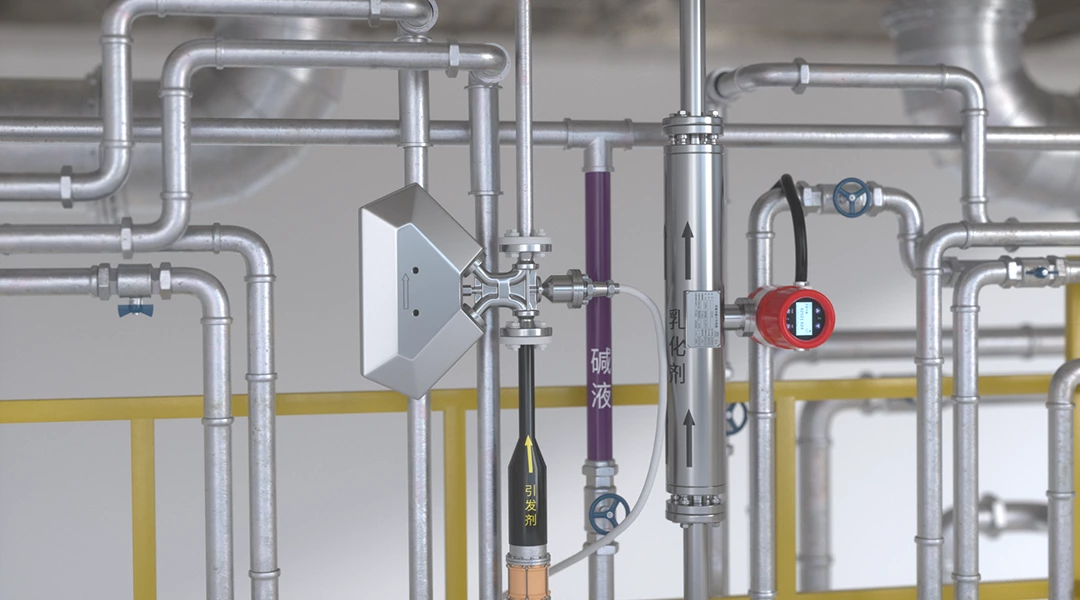

The flow profile at the pipeline’s inlet can significantly impact the accuracy of flow meter measurements. Turbulent flow, vortices, or uneven velocity distribution caused by fittings, valves, or bends can trigger measurement errors. To mitigate these issues, flow meters should be installed with adequate straight pipe sections upstream and downstream to stabilize the flow.

Manufacturers typically specify the required lengths of straight pipe (e.g., 10 pipe diameters upstream and 5 downstream) to ensure laminar flow and minimize disturbances. Installing a flow conditioner or straightener can further improve flow stability, especially in systems prone to turbulence. Additionally, maintaining sufficient distance from flow-disturbing elements, such as pumps or elbows, is critical to reducing their impact on the flow meter’s performance.

When planning the pipeline layout, use computational fluid dynamics (CFD) simulations to model flow behavior and identify potential disturbances. This proactive approach allows engineers to optimize the placement of flow meters and flow conditioners, ensuring consistent accuracy. Regular inspections of the pipeline system can also help identify changes in flow patterns caused by wear, blockages, or scaling, which could affect measurement reliability.

Select the Right Flow Meter for Pipe Diameter and Flow Rate

Choosing a flow meter that matches the pipeline’s diameter and expected flow rate is crucial for accurate measurements. A mismatched flow meter can lead to errors, especially when measuring low or high flow rates. For pipelines with varying diameters, consider using reducers or expanders to connect the flow meter while ensuring it operates within its specified range.

Additionally, pipeline vibrations can interfere with flow meter performance, particularly for sensitive devices like turbine or ultrasonic flow meters. To minimize vibration-related issues, secure the flow meter with proper mounting and use vibration-dampening supports where necessary.

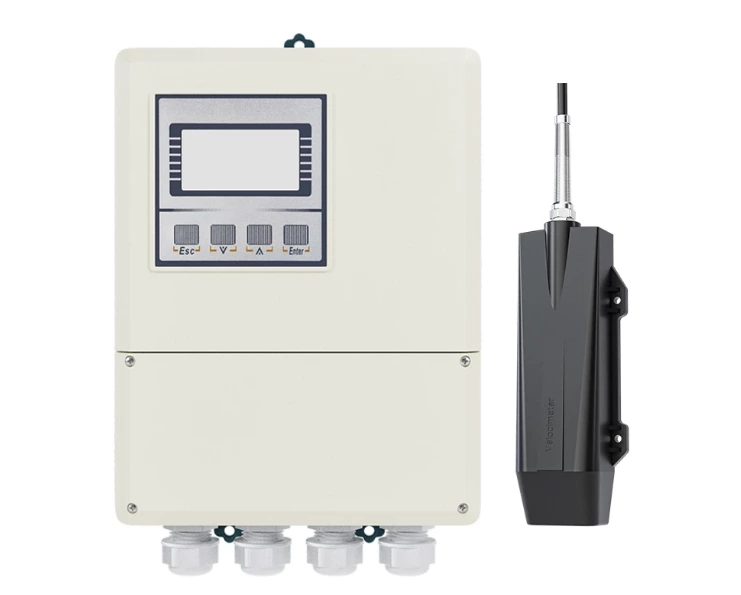

When selecting a flow meter, evaluate the system’s operating conditions, including temperature, pressure, and fluid composition. For example, electromagnetic flow meters are ideal for conductive liquids, while ultrasonic flow meters excel in non-intrusive applications. Consult with the flow meter manufacturer to ensure compatibility with your pipeline system. Additionally, consider smart flow meters with digital interfaces for real-time monitoring and integration with automated control systems, enhancing operational efficiency.

Prioritize Maintenance and Accessibility

To ensure long-term performance, flow meters must be installed in locations that allow easy access for maintenance, calibration, and inspection. Avoid placing flow meters in areas that are difficult to reach or require extensive downtime to service. Regular maintenance schedules, including cleaning and recalibration, are essential to prevent drift in measurement accuracy.

Implement a predictive maintenance strategy using IoT-enabled flow meters that provide real-time diagnostics. These devices can alert operators to potential issues, such as fouling or sensor drift, before they impact performance. Additionally, document all maintenance activities and calibration results to comply with industry regulations and maintain a record of the system’s performance over time.

Conclusion

Proper installation of flow meters is critical for efficient pipeline management, ensuring accurate measurements and reliable operation. By focusing on pipeline orientation, fluid flow direction, straight pipe requirements, and equipment selection, you can optimize flow meter performance and avoid costly issues. Additionally, prioritizing maintenance and leveraging advanced technologies like smart flow meters can further enhance system reliability and efficiency.

For professionals in industries such as water management, oil and gas, or manufacturing, adhering to these best practices will lead to improved operational outcomes and compliance with regulatory standards. Always consult with flow meter manufacturers and follow their guidelines to ensure compatibility and performance in your specific application.
