SUP-7610 LCD Flow Totalizer

SUP-7610 LCD Flow Totalizer is mainly designed for trading discipline between supplier and customer in regional central heating, and calculating steam, and high precision flow measurement.

【Applications】:

  • Trade settlement and measurement between supplier and customer in regional central heating systems
  • Accurate steam flow measurement
  • Steam heat process monitoring and volume control

Characteristics

Current: 0-20mA, 4-20mA, √0-10mA;

Voltage: 0-5V, 1-5V, 0-10V (customizable), √1-5V;

Thermocouples: B, S, K, E, T, J, R, N, etc.;

RTDs & Resistance: Pt100, Cu50, BA1, 0-400Ω;

Frequency: 0-10kHz, rectangular/sine/square wave;

Measurement accuracy :up to ±0.2% FS ±1 digit;

Wide power supply range: AC 100-240V or DC 12-36V;

Low power consumption: ≤ 5W;

Durable panel-mounted design suitable for 0-50°C, ≤85% RH environments;

  • Specification

 Measurement input
 Input signal

Current: 0-20mA, 0-10mA, 4-20mA, √0-10mA,√4-20mA ; Input impedance: ≤100Ω ; Maximum limit of input current: ≤ 30mA
Voltage: 0-5V, 1-5V, 0-10V (customized)
Thermal resistance: Pt100, Cu50, Cu53,Cu100, BA1, BA2
Linear resistance: 0-400Ω
Thermocouple: B, S, K, E, T, J, R, N, F2,Wre3-25, Wre5-26
Frequency signal: range: 0-10KHz; wave shape: rectangular, sine wave, square wave
 Output
 Output signal Analog output: 4-20mA (load resistance ≤ 480Ω), 0-20mA (load resistance ≤ 480Ω)
0-10mA (load resistance ≤ 960Ω), 1-5V (load resistance ≥ 250KΩ)
0-5V (load resistance ≥ 250KΩ), 0-10V (load resistance ≥ 4KΩ) (customized)
Alarm output: relay control output: AC220V/2A, DC24V/2A (resistive load)
Feed output: DC24V±1, load current ≤ 50mA
Communication output: RS485/RS232, 1200-9600bps, Protocol: MODBUS RTU. Communication distance: 1Km for RS-485 and 15m for RS-232.
 Comprehensive parameters
 Measurement precision 0.2%FS±1d
 Setting mode Light touch control panel for setting parameter, which will be stored permanently even in case of power failure, and can be locked & protected with password.

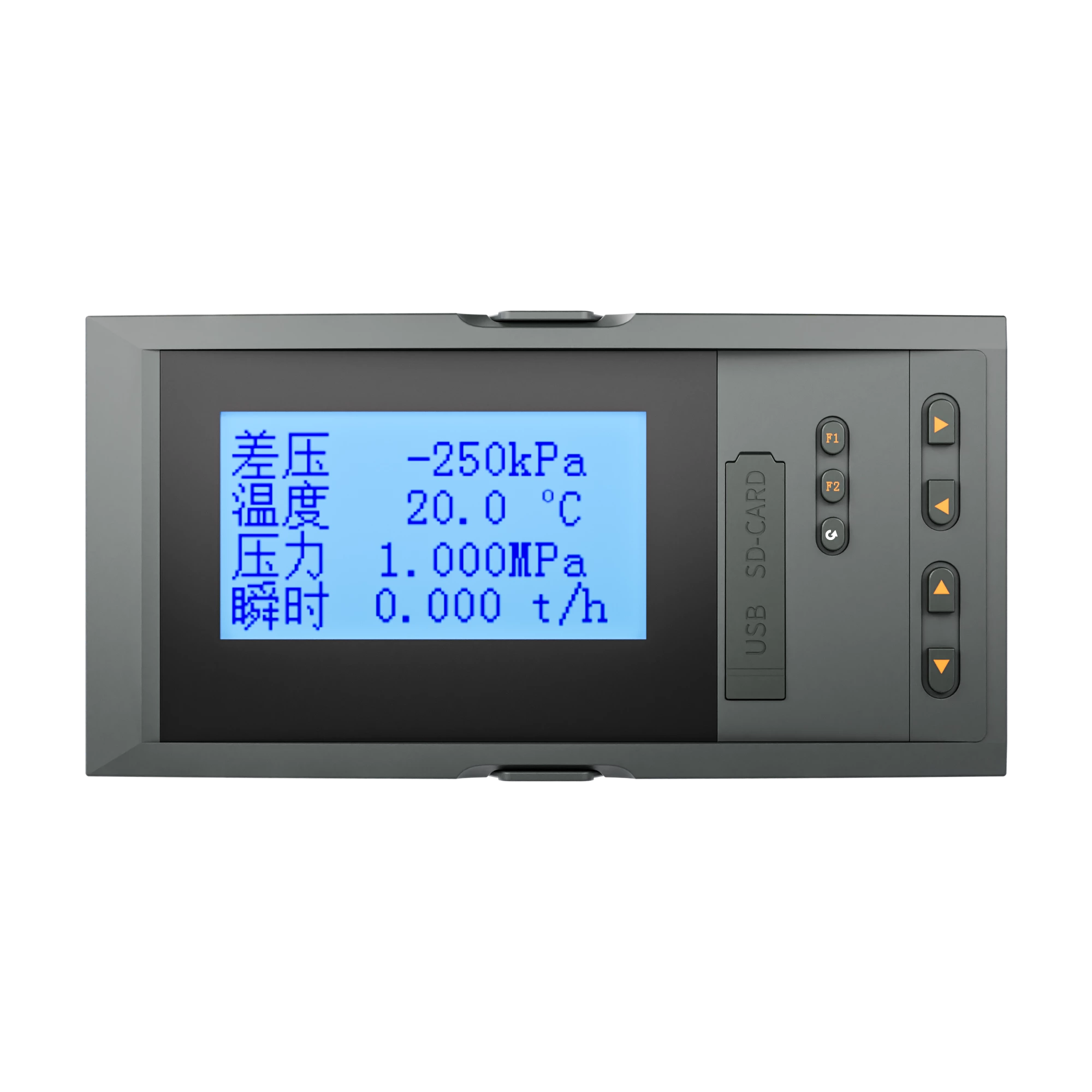

Display mode 3.5” matrix 128*64 LCD screen with backlight (black characters on white screen). Display pages include Digits, Curves, Bar graphs, and so on. Pages switch conveniently on the panel. History data can be searched, and time scale of curves is changed by operating proper keys on the panel

 Record interval 9 options for your choice: 1s, 2s, 4s, 6s, 15s, 30s, 60s, 120s, and 240s
 Storage time 3 days (record interval of 1s) – 720 days(record interval of 240s)
 Print Printer interface: RS-232C; Serial-interface printer: SP-A40SH
 Operating environment Ambient temperature: 0-50℃; relative humidity: ≤ 85RH; isolated from strongly corrosive gas
 Power supply AC 100-240V (switch power), 50/60HZ; DC 12-36V(switch power)
 Power consumption ≤ 5W

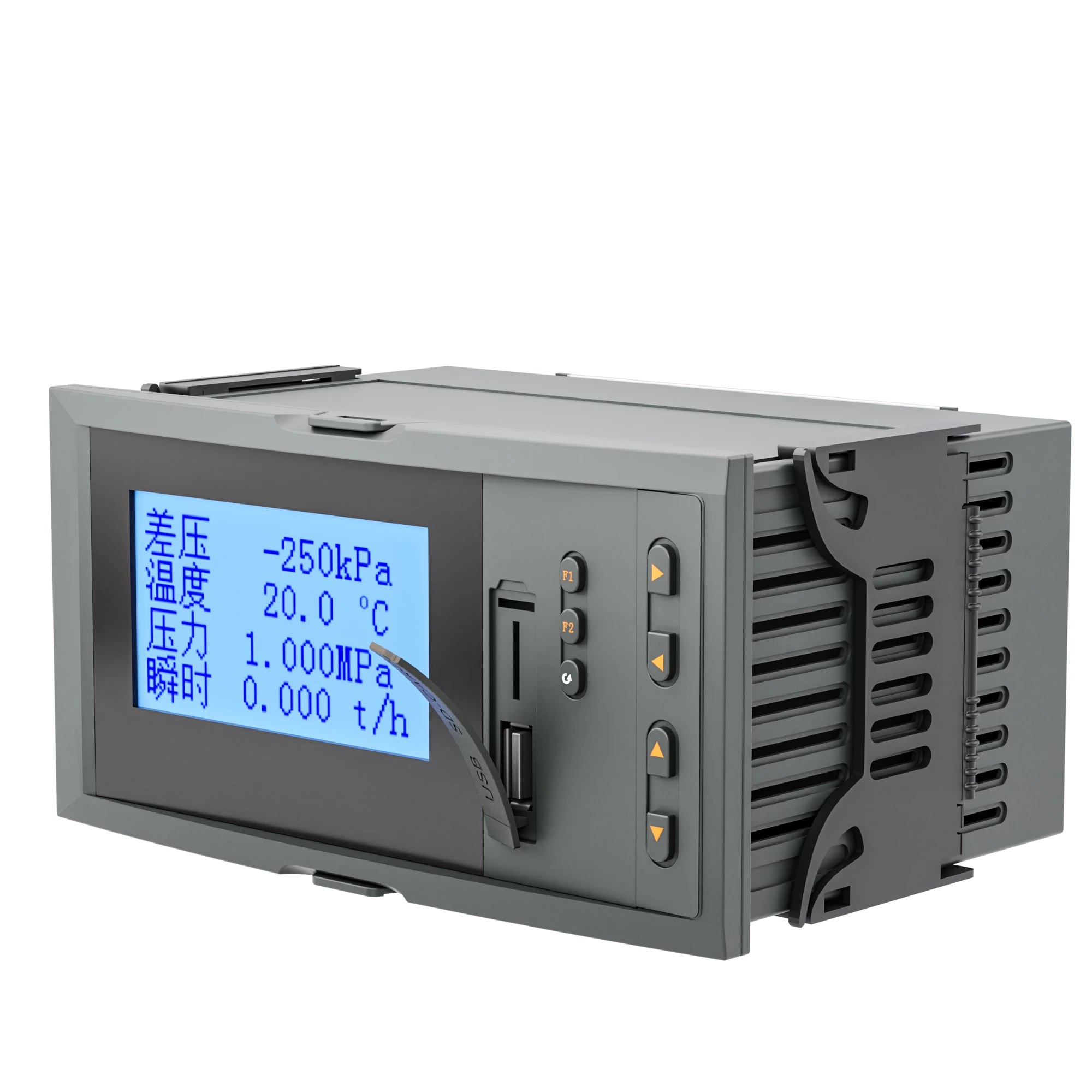

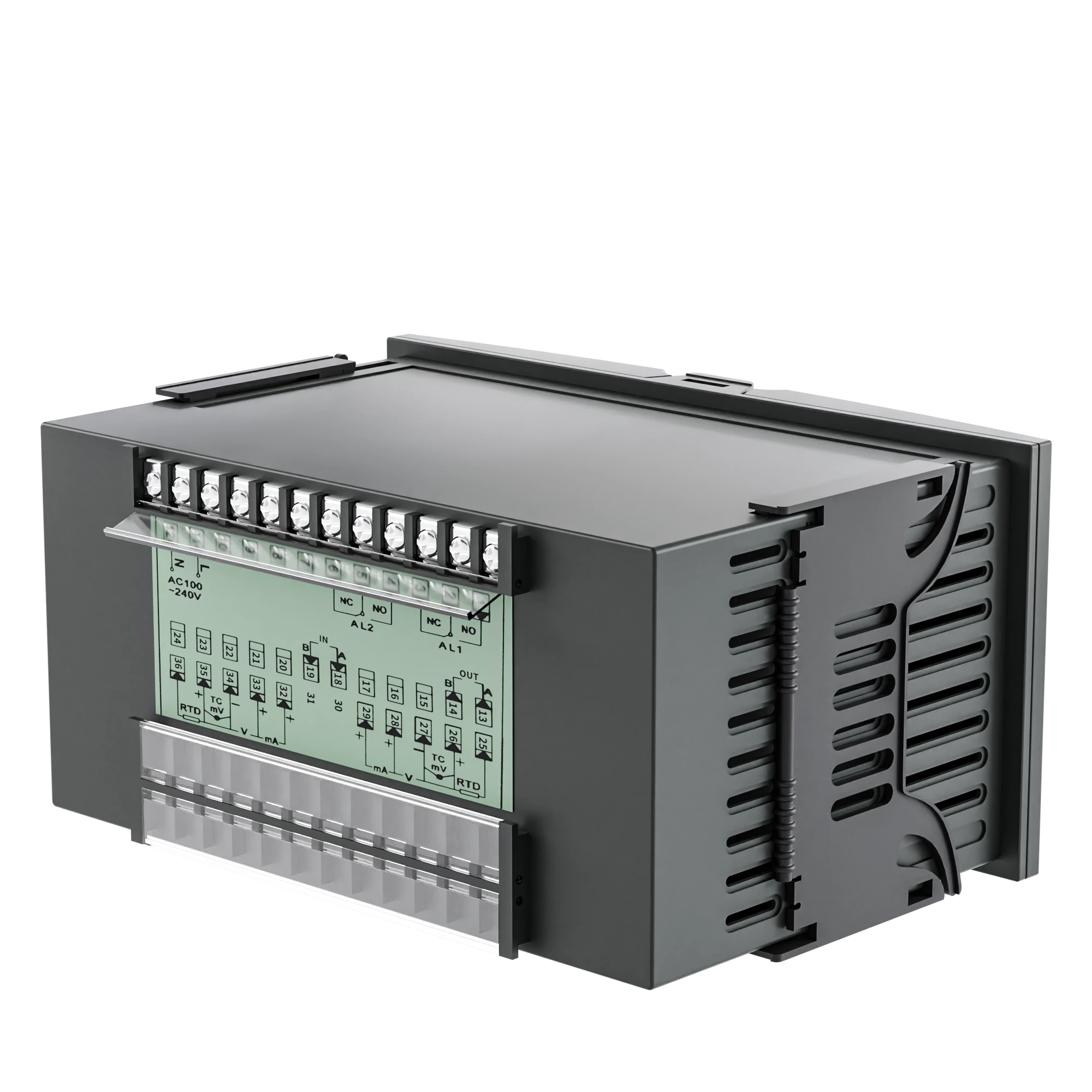

 Structure Standard panel mounted instrument structure
  • Introduction

【Design Advantages】:

  • Surface Mount Technology (SMT) for compact and robust hardware design
  • Excellent Electromagnetic Compatibility (EMC) and high system reliability
  • Equipped with multi-level protection and strong isolation design
  • Outstanding anti-theft and power failure protection capabilities

【Compatible Flow Sensors】:

  • Orifice Plate Flowmeter
  • V-Cone Flowmeter
  • Vortex Flowmeter
  • Other differential pressure or steam flow sensors



SUP-7610 LCD Flow Totalizer is mainly designed for trading discipline between supplier and customer in regional central heating, and calculating steam, and high precision flow measurement.

It’s a full-functional secondary instrument based on 32-bit ARM micro-processor, high-speed AD and large-capacity storage. The instrument has fully adopted surface-mount technology.

It has good EMC ability and high reliability because of heavy protection and isolation in design. It is embedded RTOS, USB Host, and high-density FLASH memory, which can record 720-day length sampling data. It can automatically identify saturated steam and superheated steam. It can also be used for process monitoring and volume control of steam heat. History data recorded in instrument can be copied to USB disk at any time and analyzed by DTM software on PC. The instrument may be used together with vary flow sensors such as Orifice Plate, V-cone, vortex, and so on. Besides, it also features good performance in anti-theft and power failure protection.
