| Product |
Online pH controller |
| Model |
SUP-PH6.0 |
| Measure range |
pH: 0-14 pH, ±0.02pH |
| |
ORP: -1000 ~1000mV, ±1mV |
| Measuring medium |
Liquid |
| Input Resistance |
≥1012Ω |
| Temp compensation |
Manual/ Auto temperature compensation |
| Temperature Range |
-10~130℃， NTC10K or PT1000 |
| Communication |
RS485, Modbus-RTU |
| Signal output |
4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply |
220V±10%,24V±20%,50Hz/60Hz |
| Relay output |
250V, 3A |

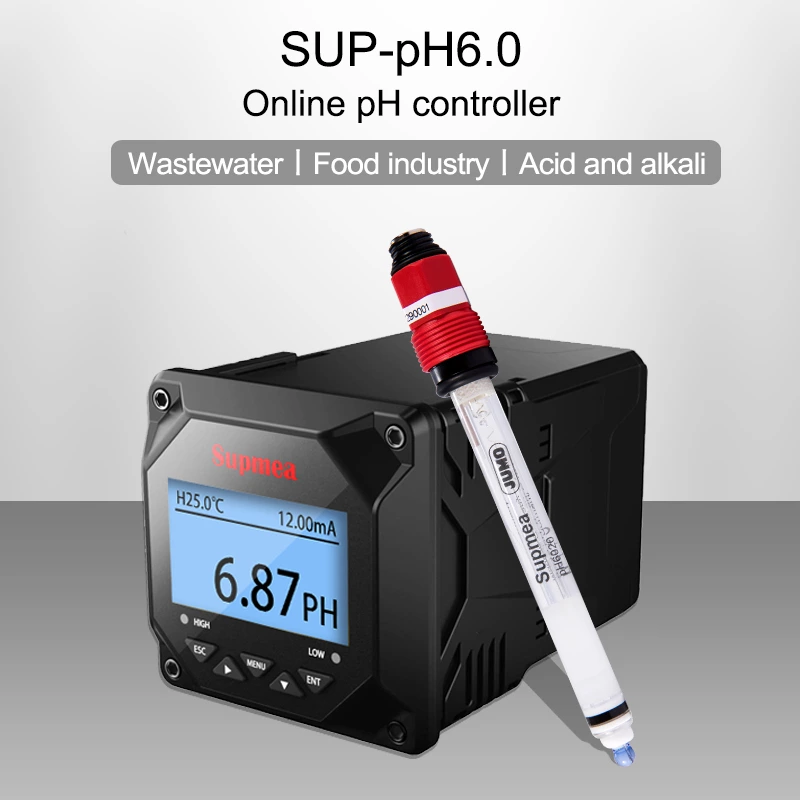

SUP-PH6.0 Online pH controller is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The controller function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.
Automatically Temperature Compensation
Directly switchable to PH or ORP
Large LCD display with background lighting
PH or ORP sensors can be connected thanks to the sensor supply integrated in the output
Using the setup program: user-friendly programming
Supmea sixth-generation ph meter with 20 years of experience accumulated.
Professional Industrial Design Team design the product appearance!

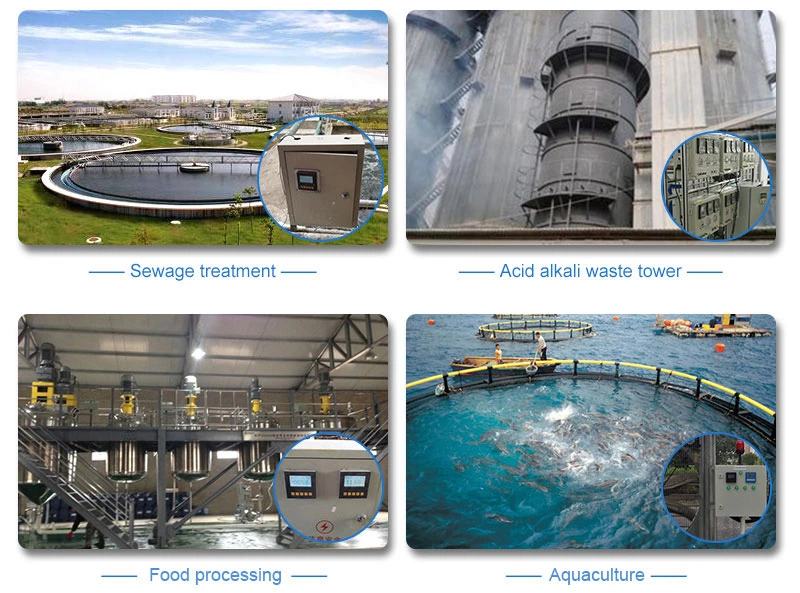

Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.
