Name: Butterfly Valve
Brand: Supmea
SKU: 03023
Rating: 4.8 (7 reviews)

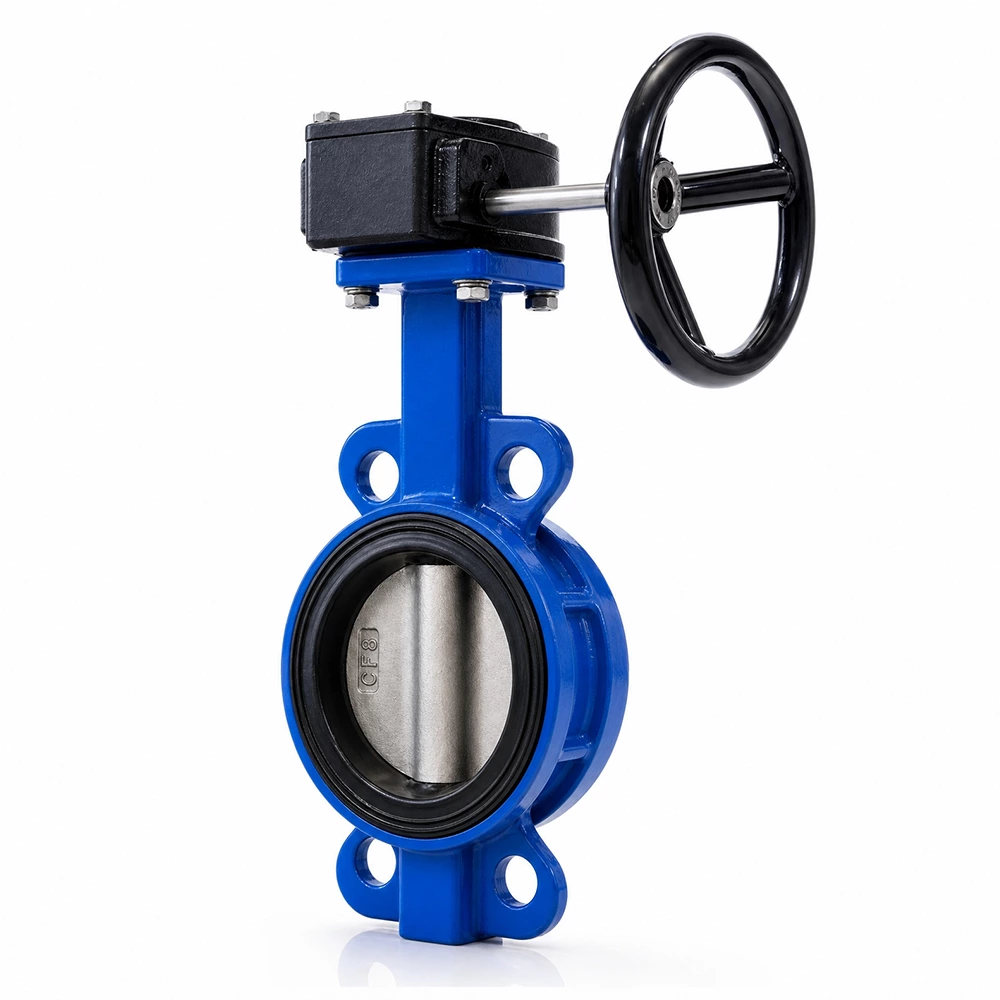

Butterfly Valve

Supmea butterfly valve series offers zero-leakage sealing, low torque operation and wide size ranges from DN50 to DN1200. Ideal for water treatment plants, HVAC systems and industrial pipelines.

Characteristics

Quarter-turn operation for fast and efficient flow control.
Compact and lightweight design for easy installation and maintenance.
Excellent sealing performance with reliable shut-off capability.
Low flow resistance ensures efficient fluid transmission.
Corrosion-resistant materials suitable for demanding environments.

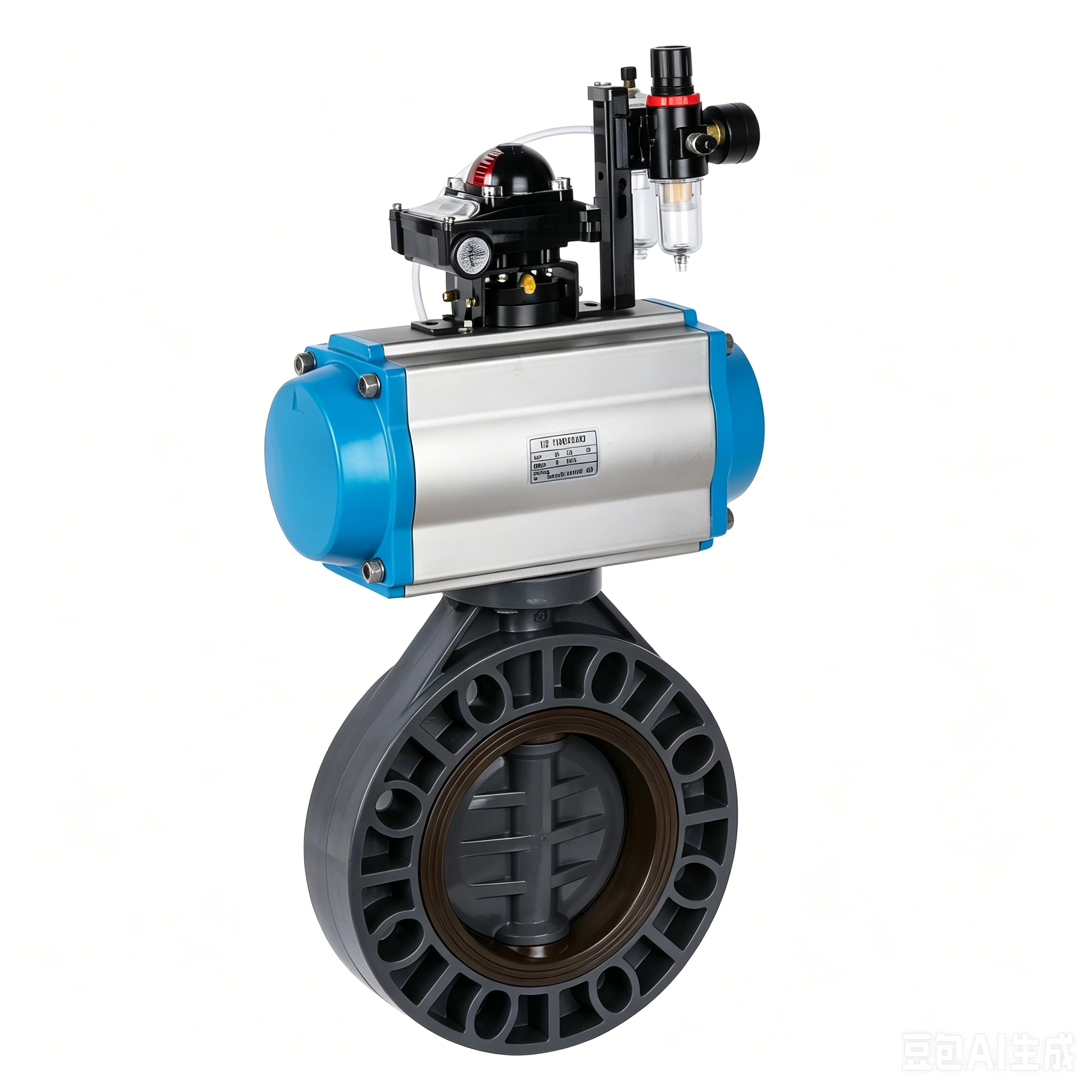

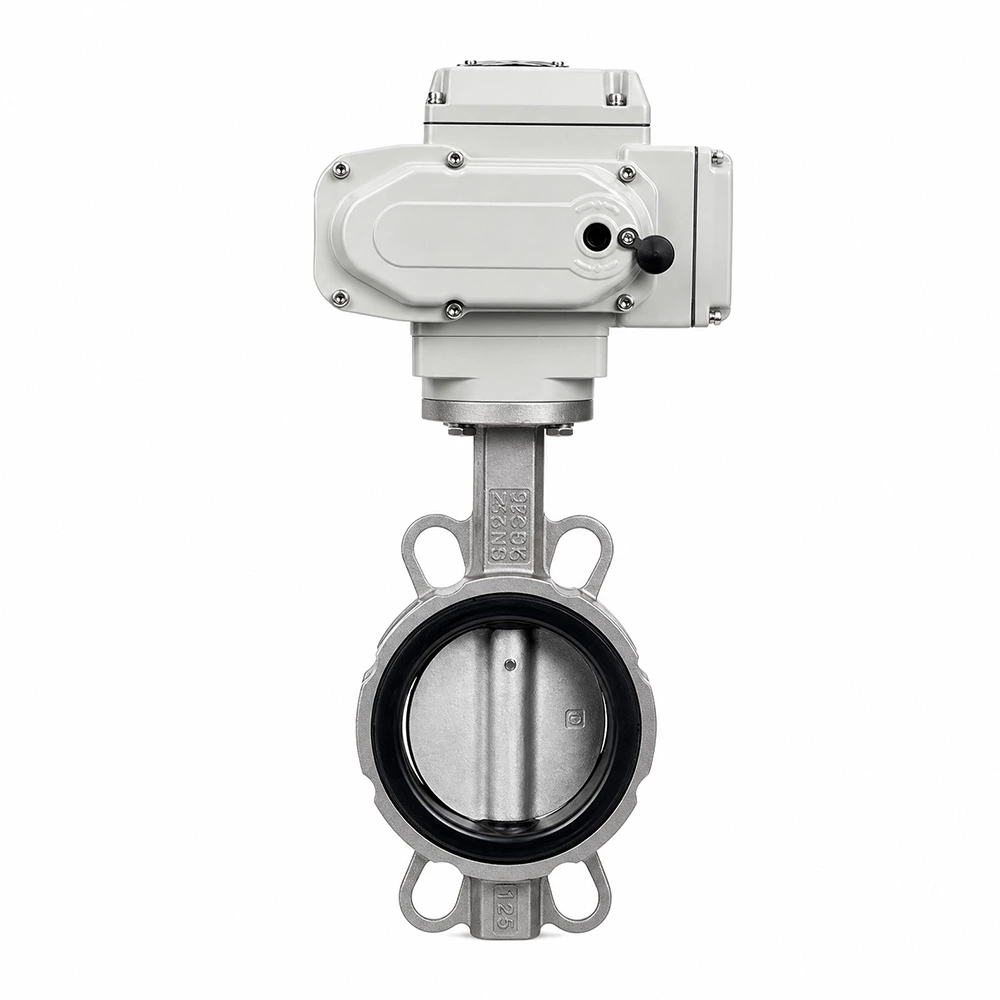

Available with manual, pneumatic, or electric actuators.
Suitable for water, air, oil, wastewater, and various industrial media.
Long service life with stable and dependable operation.

Technical Specifications

Parameter	Specification
Design Standard	BS EN593 / MSS SP-67 / GB/T 12238
Test Standard	BS EN 12266 / GB/T 13927
F-F Dimension	BS EN558 / ISO 5752 / GB/T12221
Flange Standard	BS EN1092-2 / GB/T17241.6
Top Flange	ISO 5211
Nominal Diameter	DN50 ~ DN1200
Nominal Pressure	PN16
Work Temperature	-10°C ~ 120°C
Shell Test	24 bar
Seal Test	17.6 bar
Applicable Media	Water, Ethylene glycol ≤50%
Body Material	Ductile Iron (QT450)/SS304 / SS316
Disc Material	DI+Ni / SS CF8 / CF8M
Stem Material	SS416 / SS316 / SS316L
Seat Material	EPDM
Surface Treatment	Epoxy powder / Polyurethane

Key Features

Compact design with small footprint — easy to install and maintain
Excellent sealing performance with zero leakage, ensuring no fluid escapes
Wide range of industrial applications: water treatment plants, power plants, steel mills, chemical plants
Low pressure drop and excellent regulation performance with wide regulation range and high precision
Rapid closing and opening — fully open or fully closed in a short time
Maintenance-free — designed for long service life with minimal downtime
Safety groove on stem prevents stem blow-out
Pinless plate connection for bidirectional butterfly valve installation
On-site seat replacement without removing valve from pipeline

Available Models

Model	Description

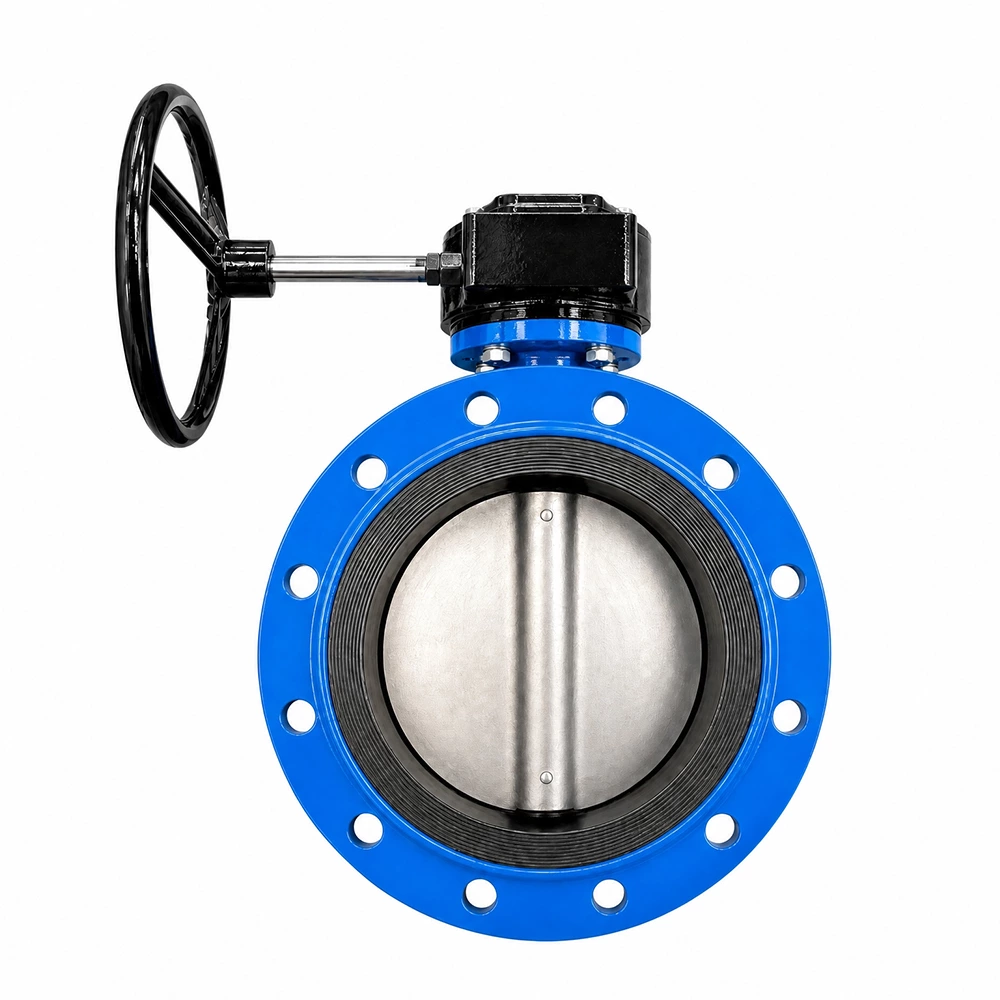

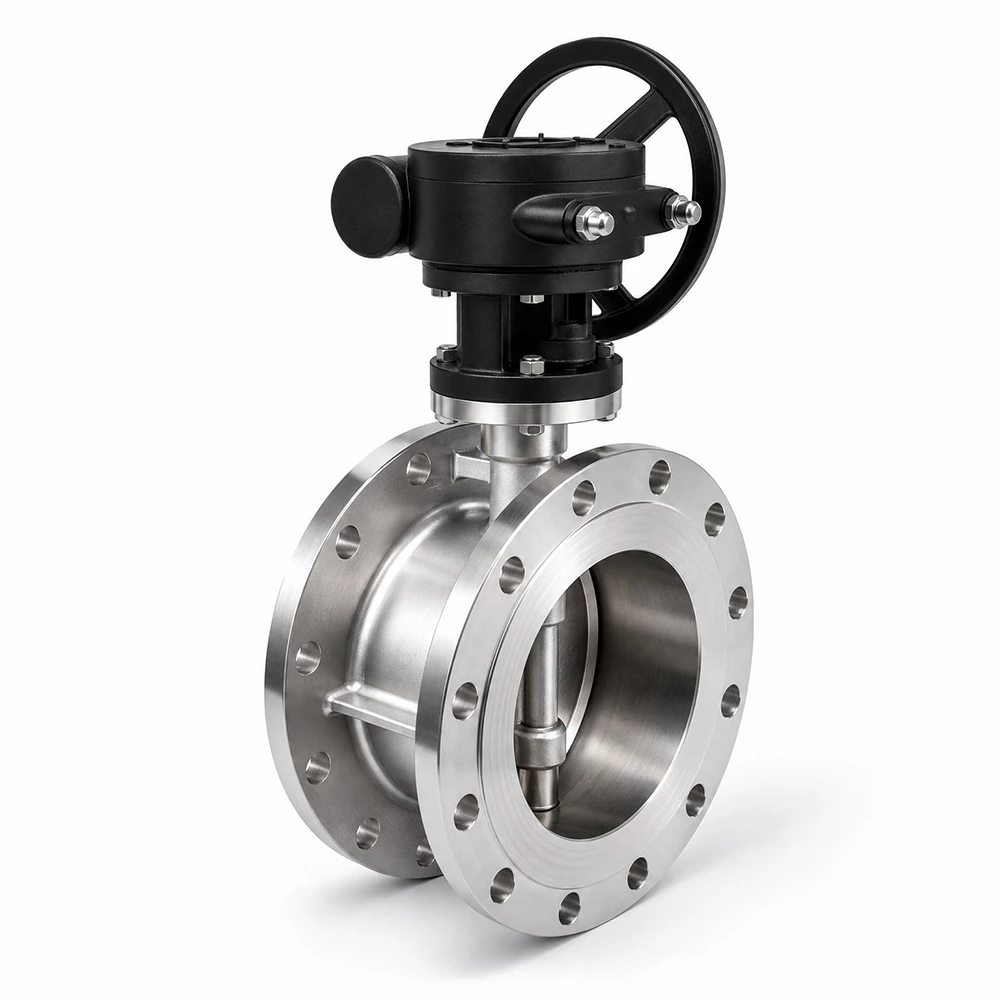

Fig. 2123 – Double Flanged BFV	DN50~DN1200 · Lever / Gearbox / Electric Actuator · Epoxy coated body
Fig. 2122 – Concentric U-type BFV	DN50~DN600 · Compact face-to-face · PN16

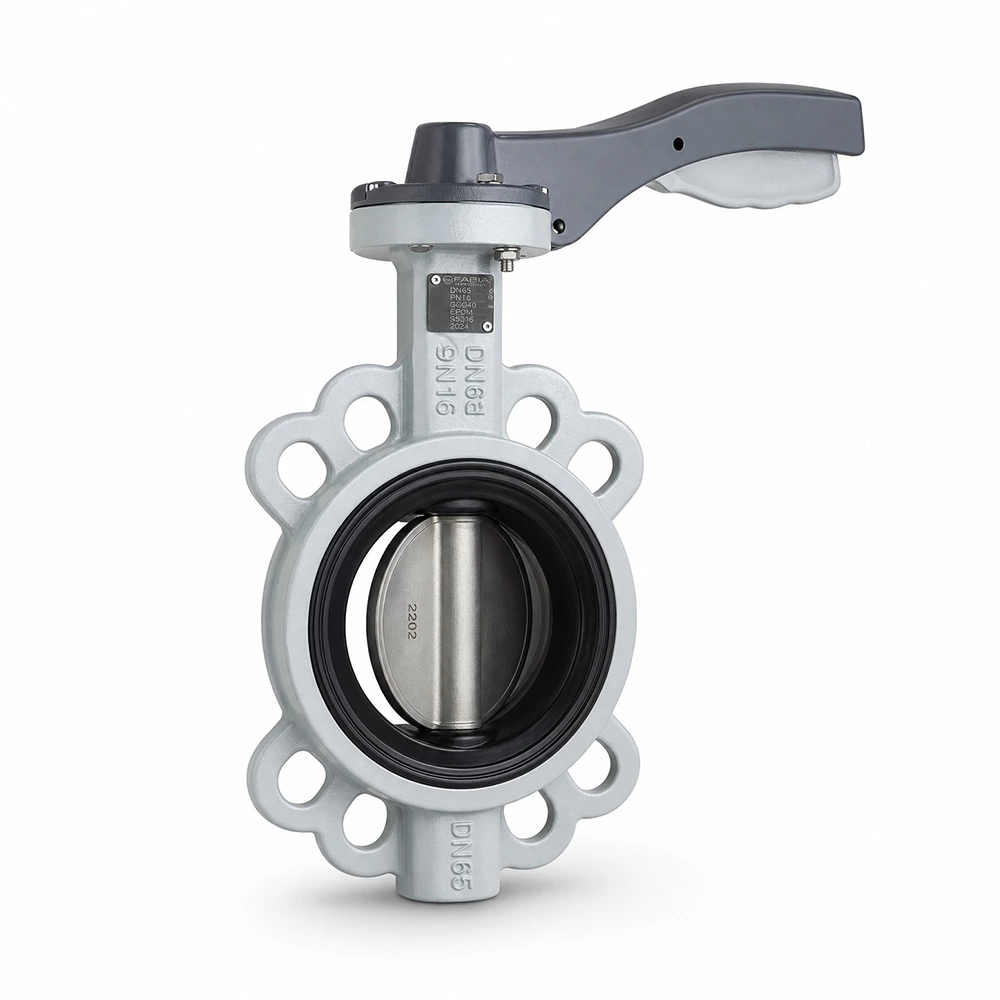

Fig. 2309 – Concentric Wafer BFV	DN50~DN600 · Wafer installation · Lightweight design
Fig. 2349 – Wafer Soft Back BFV	DN50~DN600 · Soft-backed EPDM seat · Enhanced sealing performance
Fig. 2509 – Lug BFV (Pin Center)	DN50~DN600 · Lug type with pin center line · Dead-end service capable
Fig. 2549 – Lug Center Line BFV	DN50~DN600 · Full lug body · BS EN 1092-2 flanges
Fig. 2330 – Wafer Vulcanized BFV	DN50~DN600 · Rubber-lined vulcanized seat · Corrosion resistant
Fig. 2530 – Lug Vulcanized BFV	DN50~DN600 · Lug vulcanized body · Suitable for aggressive media
Fig. 2390 – Antidew BFV Series	DN50~DN300 · API 609 · Aluminum body · Anti-condensation design for HVAC
