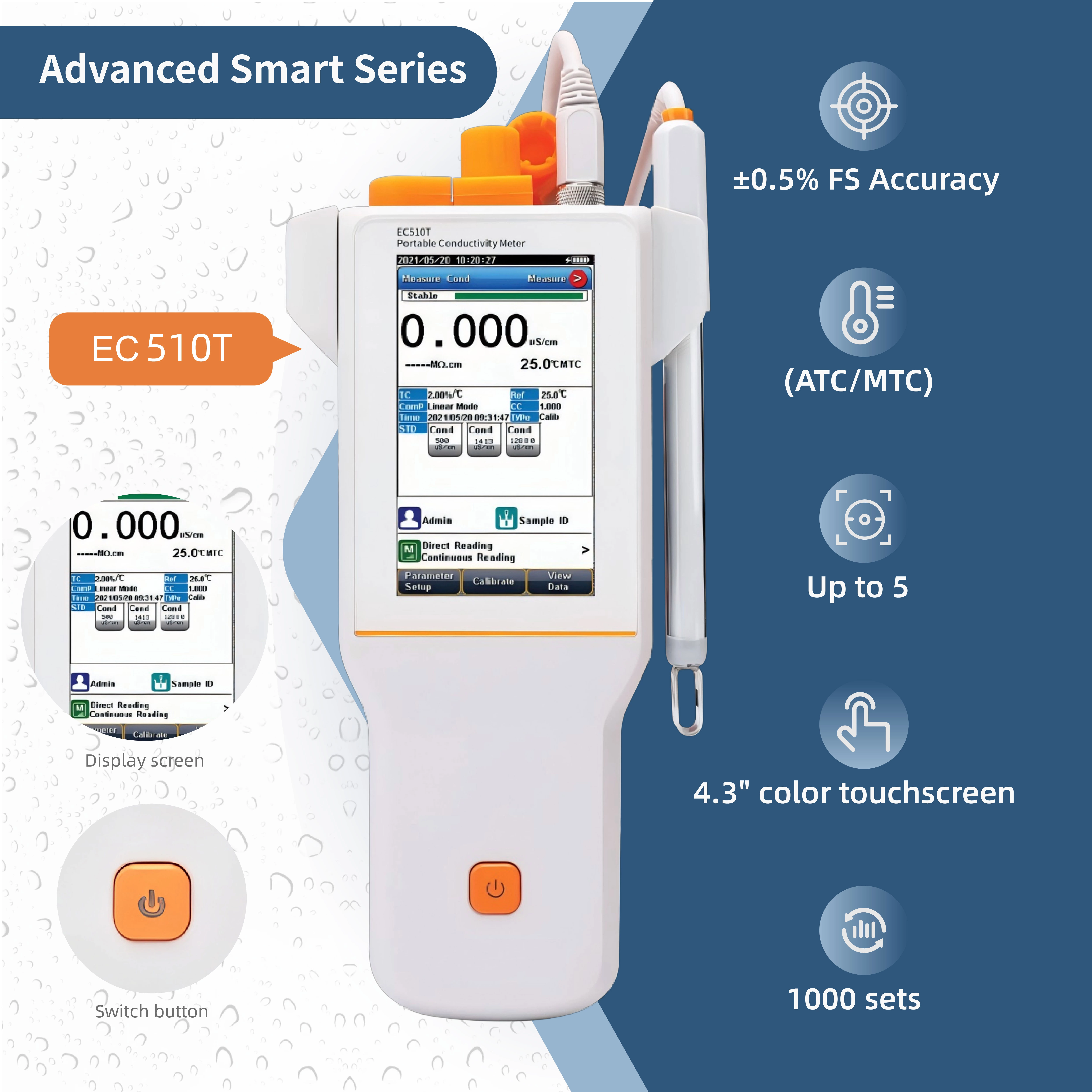

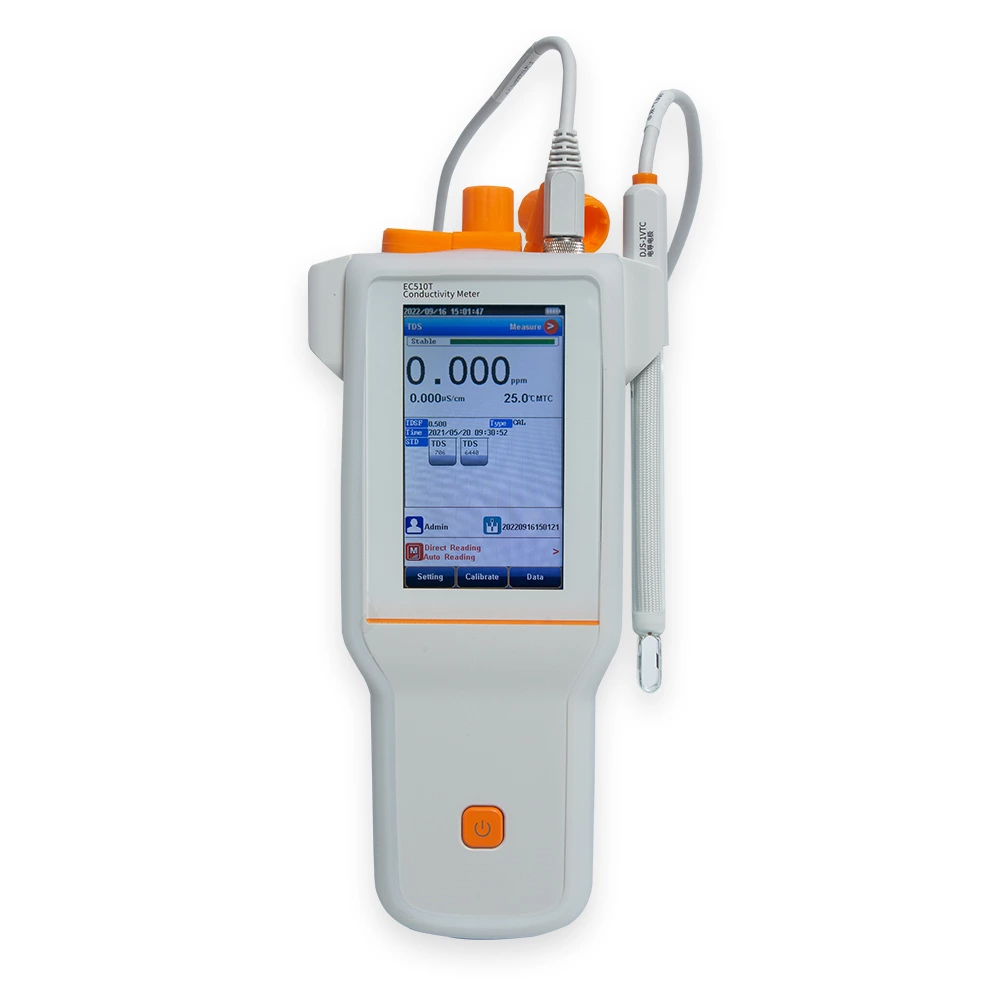

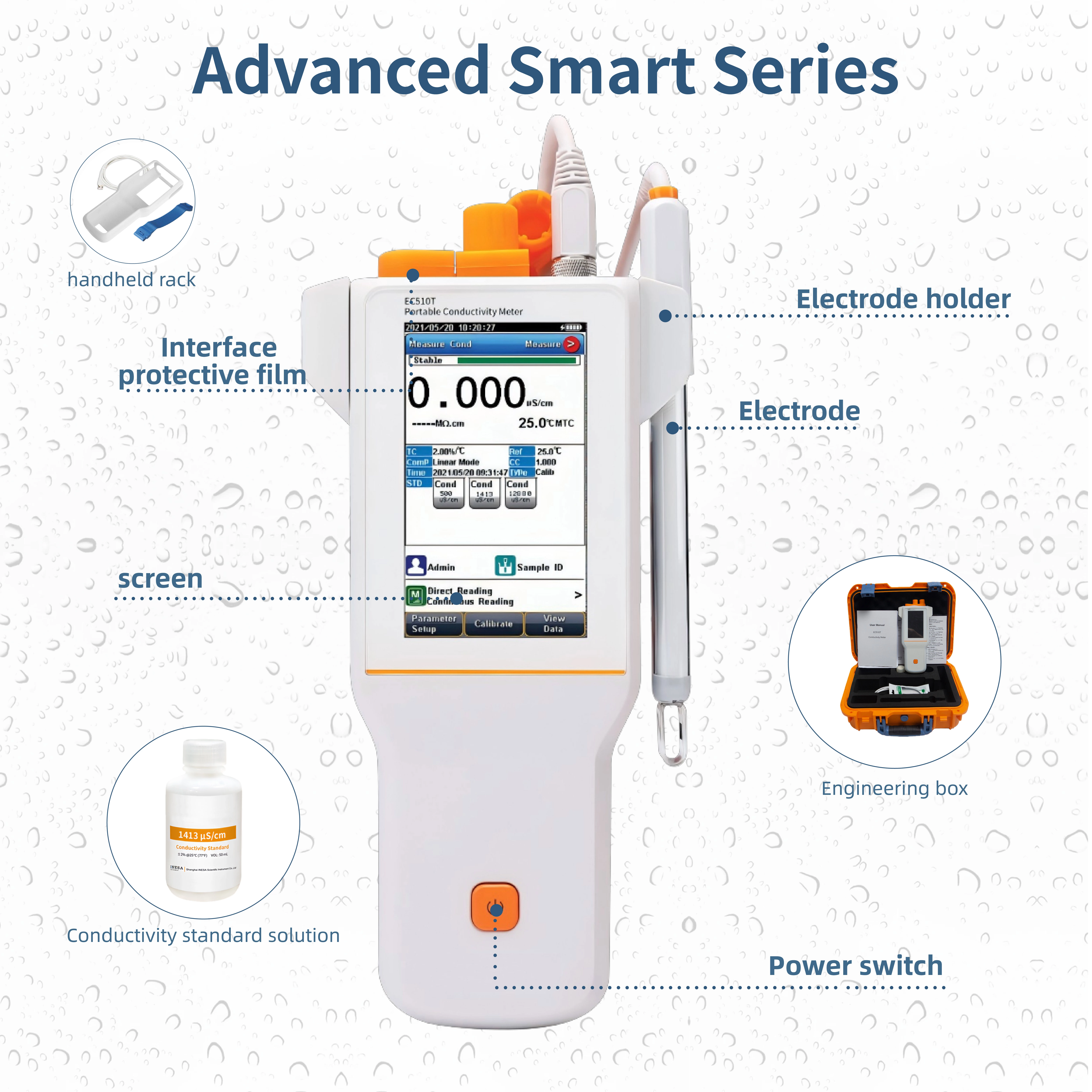

EC510T Portable Conductivity Meter

A portable, waterproof meter with a touchscreen interface, multiple reading modes, temperature compensation, auto-hold, and data management features, designed for accurate and convenient measurements in laboratory and field environments.

Characteristics

Power: Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output.

Data Storage: 1000 Groups

IP Rating: IP65

Dimensions: 90 × 255 × 40 mm

Introduction

This portable high-precision meter features a 4.3-inch high-contrast LCD touchscreen and an intelligent operation system for managing users, calibration, electrodes, methods, and data. It offers auto, timed, and continuous reading modes, with automatic or manual temperature compensation for accurate measurements. The auto-hold function locks the endpoint for reliable readings, while GLP-compliant storage of up to 1,000 data sets enables review and analysis. With USB connectivity, IP65 waterproofing, automatic calibration recognition, and configurable parameters, this meter is ideal for both field and outdoor measurements.

Specification

Model	EC510T
Parameters	EC/Resistivity/TDS /Sal./Temp
Conductivity	Range	0.000 μ S/cm to 3000 mS/cm
	Resolution	0.001 μ S/cm minimum, various with range selection
	Accuracy	± 0.5% FS
	Reference Temperature	5, 10, 15, 18, 20, 25 ºC
	Calibration Points	Up to 5
	Standard Recognition	10 μ S/cm, 84 μ S/cm, 500 μ S/cm, 1413 μ S/cm, 12.88mS/cm; 146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm
Resistivity	Range	5.00 Ω ·cm~100.0 M Ω ·cm
	Resolution	0.01 Ω ·cm minimum
	Accuracy	± 0.5% FS
TDS	Range	0.000ppm~1000ppt
	Resolution	0.001mg/L minimum, changed with range
	Accuracy	± 0.5% FS
Salinity	Range	0.0 ～ 80.0 ppt
	Resolution	0.1ppt
	Accuracy	± 1ppt
Temperature Range	-10 to 135 ºC, 14 to 275 ºF
Data management	Data Storage	1000 Groups
Data management	GLP Features	Yes
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Inputs	Conductivity with Temp. Probe	5-pin aviation connector
Outputs	USB	USB 2.0 flash memory device, PC, scanner
Outputs	Bluetooth	Yes
IP Rating	IP65
Power	Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions	90 × 255 × 40 mm
Weight	500g (1.1 lb)

FEATURES
Display: Color high contrast LCD touchscreen, 4.3 inches.
System: Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management, etc.
Reading: Multi-reading feature allows auto-read, timed-read, and continuous-read.
Compensation: Automatic/Manual temperature compensation ensures accurate results.
Auto-hold: Auto-hold feature senses and locks the measurement endpoint.
Storage: Data storage 1000 sets for each parameter (GLP-compliant).
Analysis: Data analysis feature helps user review, compare, and recalculate results.
Communication: Support for USB communication.
Power: Auto-power off feature effectively extends the battery service life.
Reset: Reset feature automatically resumes all settings back to factory default options.
Protection: IP65 waterproof. The portable meter is suitable for field measurements and outdoor measurements.
Calibration: 1–5 points calibration automatically recognizes the standard solutions.
Settings: Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient, and TDS factor.
Type: Temperature compensation type (none, linear, pure water).
