Electrical interface: 2 NPT3/4, spare 1 NPT3/4
Protection class: IP67, optional IP68
Motor specification: Class H, with thermal protector 155℃
Working system: switching type: S2-15min, not more than 600 starts per hour
Applicable voltage: three-phase: AC380V(±10%)/50Hz(±5%)
Up to the match: single-phase AC220V
Ambient temperature:-30C~70℃,-40-70℃.

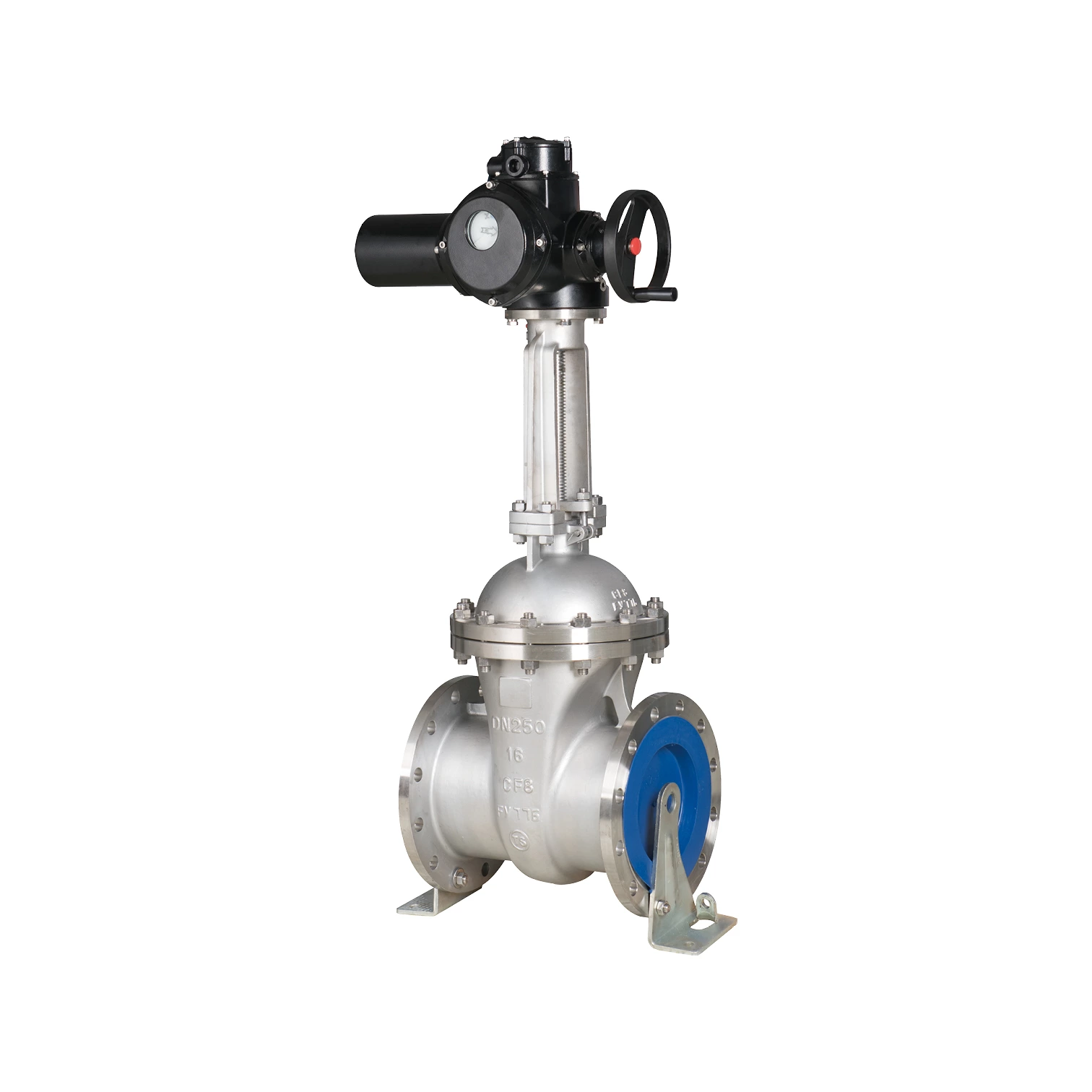

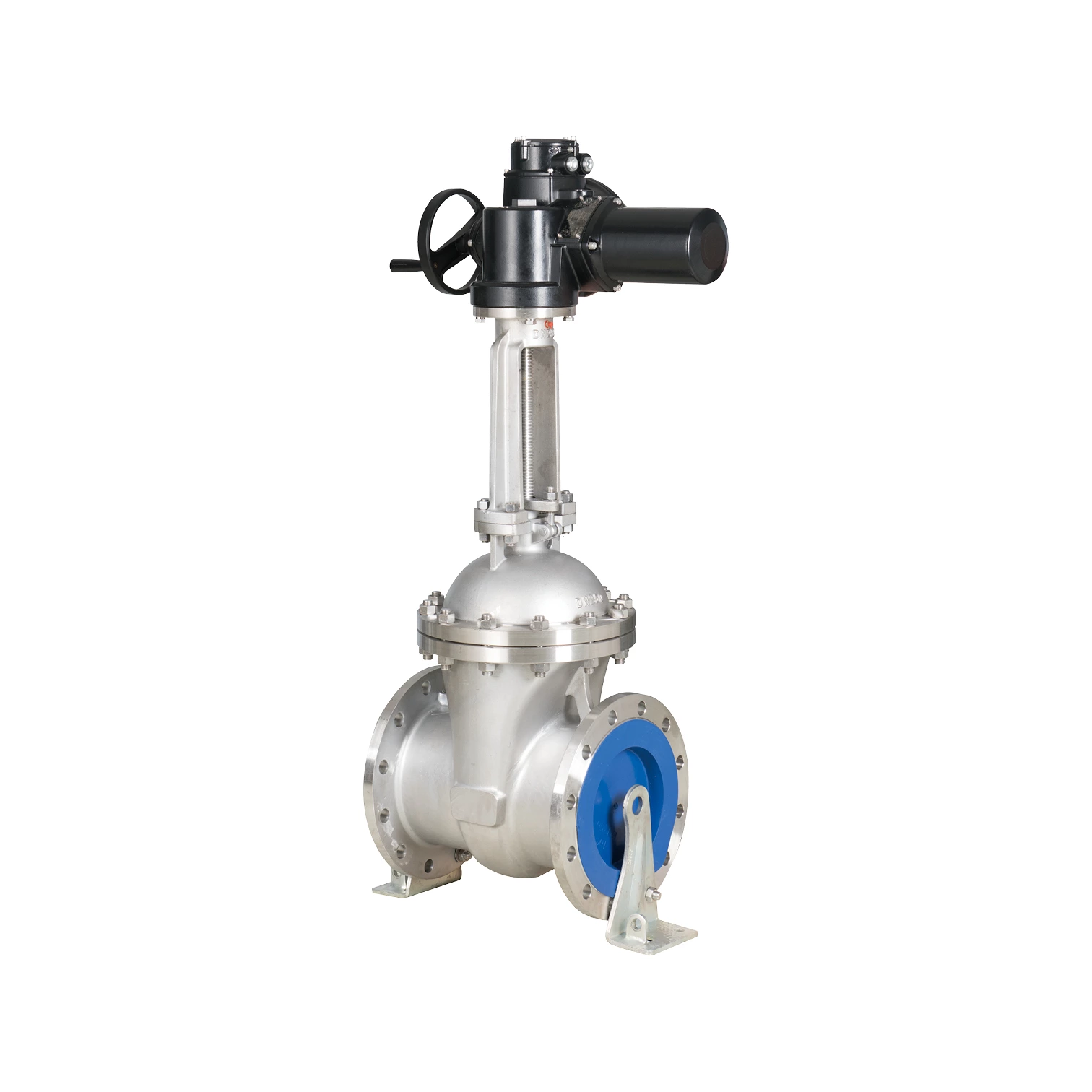

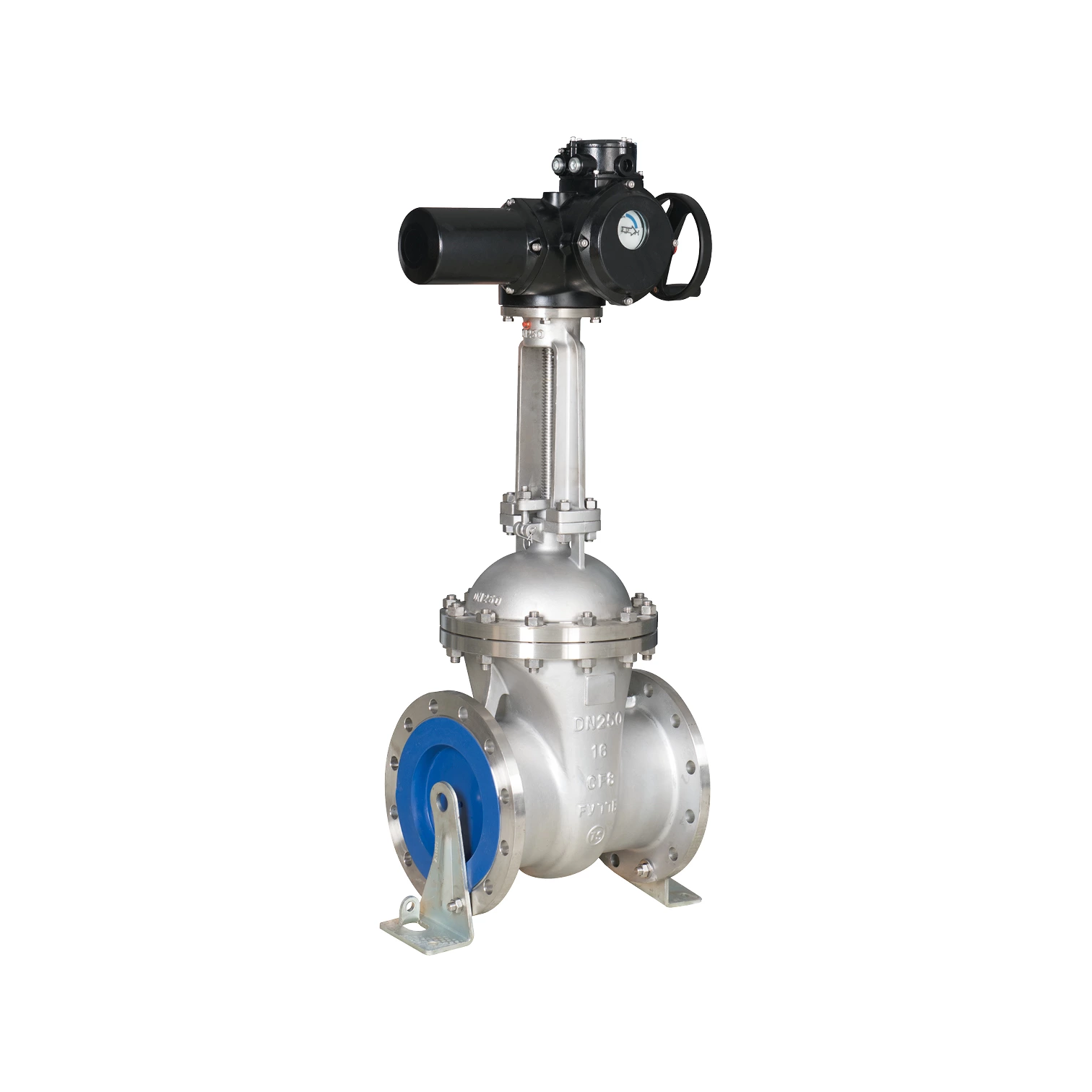

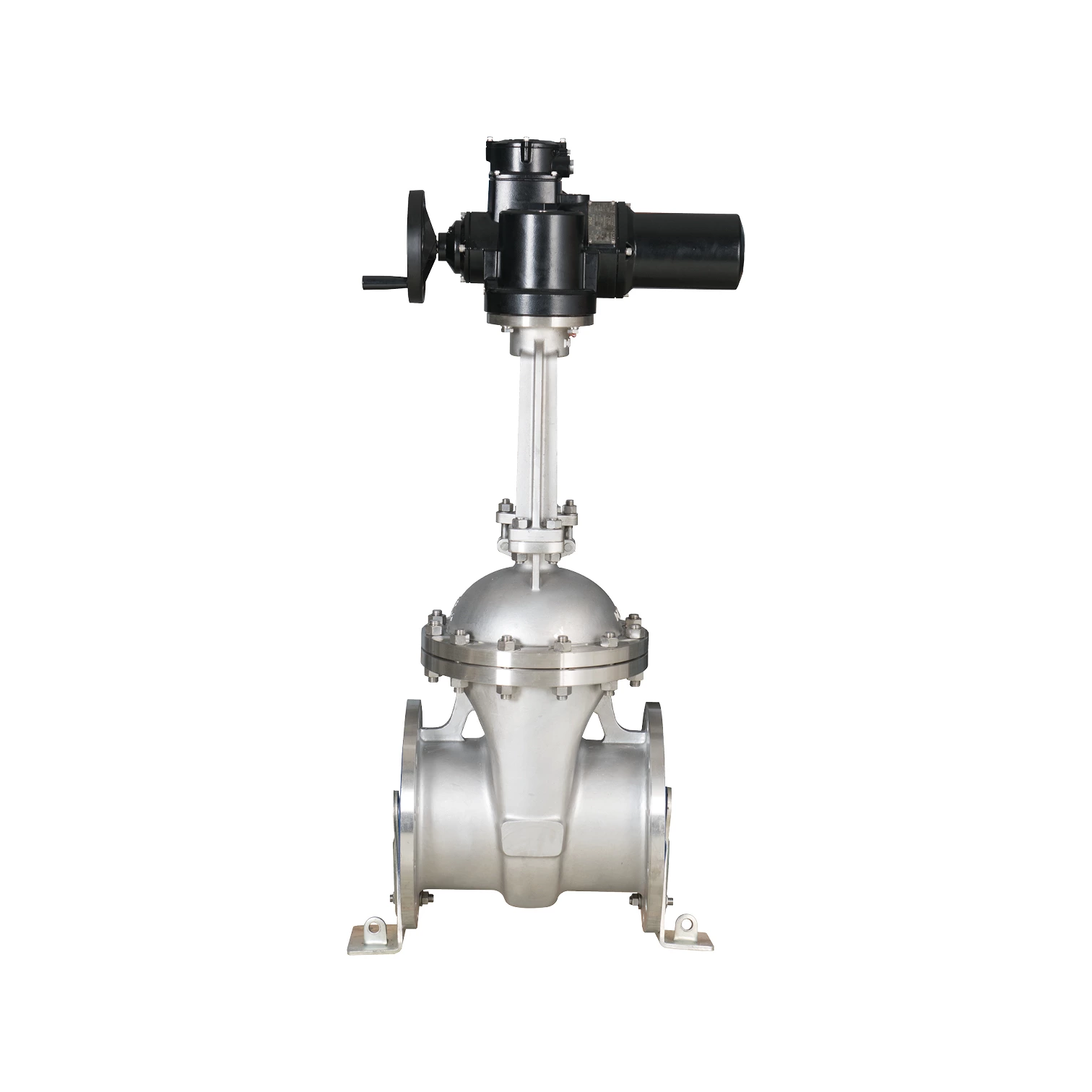

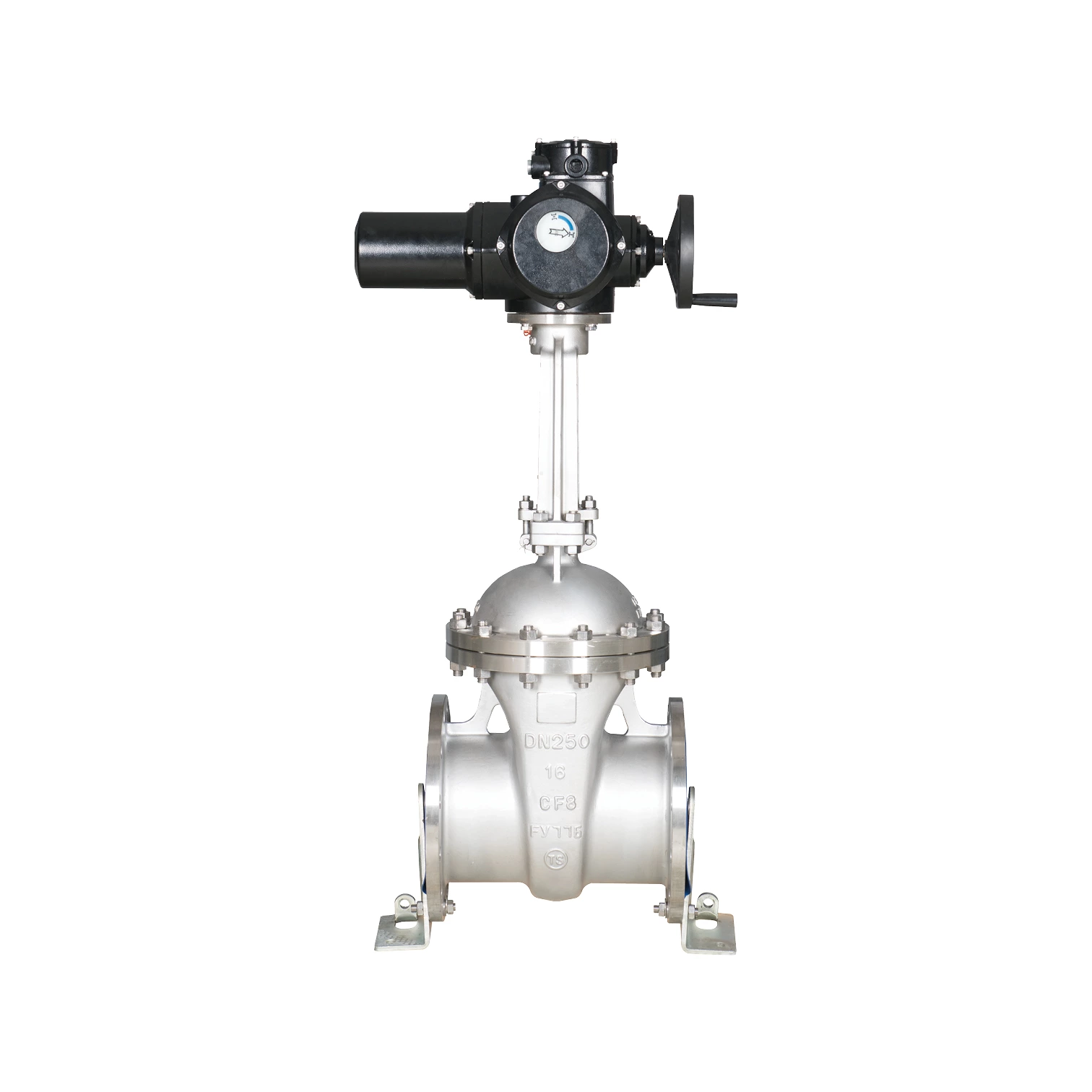

A Motorized Gate Valve is a standard gate valve integrated with an electric actuator (motor). This automation replaces manual handwheels, gears, or hydraulic/pneumatic operators, enabling remote or programmed control of the valve's opening and closing.
Remote Operation: Control valves from control rooms or remotely, improving safety (hazardous locations) and convenience (hard-to-reach valves).
Automation: Easily integrated into automated processes and control systems (SCADA, BMS, PLC).
Speed & Labor Saving: Faster operation than large manual valves; eliminates manual labor.
Programmable Control: Timed operation, sequencing, and integration with process logic.
Position Feedback: Provides crucial status information to operators and control systems.
Fail-Safe Capability: Enhances process safety and environmental protection.
Suitable for Large Sizes: Electric actuators effectively handle the high torque required for large diameter gate valves (e.g., DN40 and above).
| General parameters | Torque range | 60-3000Nm Direct output | |
| Speed | 18-144(rpm) | ||
| Ambient temperature | -30~70°C, -40-70°C | ||
| Vibration resistance grade | According to JB/T8219 | ||
| Noise level | Less than 70d8 within 1m | ||
| Electrical interface | 2 NPT3/4, spare 1 NPT3/4(others customized) | ||
| Protection grade | IP67, optional IP68 | ||
| Connection size | In line with JB2920 (three-jaw type) or ISO5210 (thrust type, torque type) | ||
| Technical Parameters | Motor specifications | Class H, with thermal protector 155°C | |
| Work system | Switch type:S2-15min, no more than 600 starts per hour | ||
| Applicable voltage | Three-phase:AC380V(+10%)/50Hz(±5%) | ||
| Adaptable:Single-phase AC220V | |||
| Bus type | None | ||
| Switching type | Input | Switching control, built-in contact, can support 5A@250Vac | |
| Output | Open position/close position passive contact | ||
| Switching overtorque/off overtorque passive contact | |||
| Optional: Half-full section type-position feedback potentiometer | |||
| Control modes | Display mode | Pointer type opening degree indicator disk | |
| Menu operation | No | ||
| Field control | No | ||
| Intelligent diagnosis of data logging | No | ||
| Others | Other functions | Force distance protection (speed above 36 rpm, no over force distance device) | |
| Motor overheating protection | |||
| Moisture-proof heater (moisture-proof device) | |||
