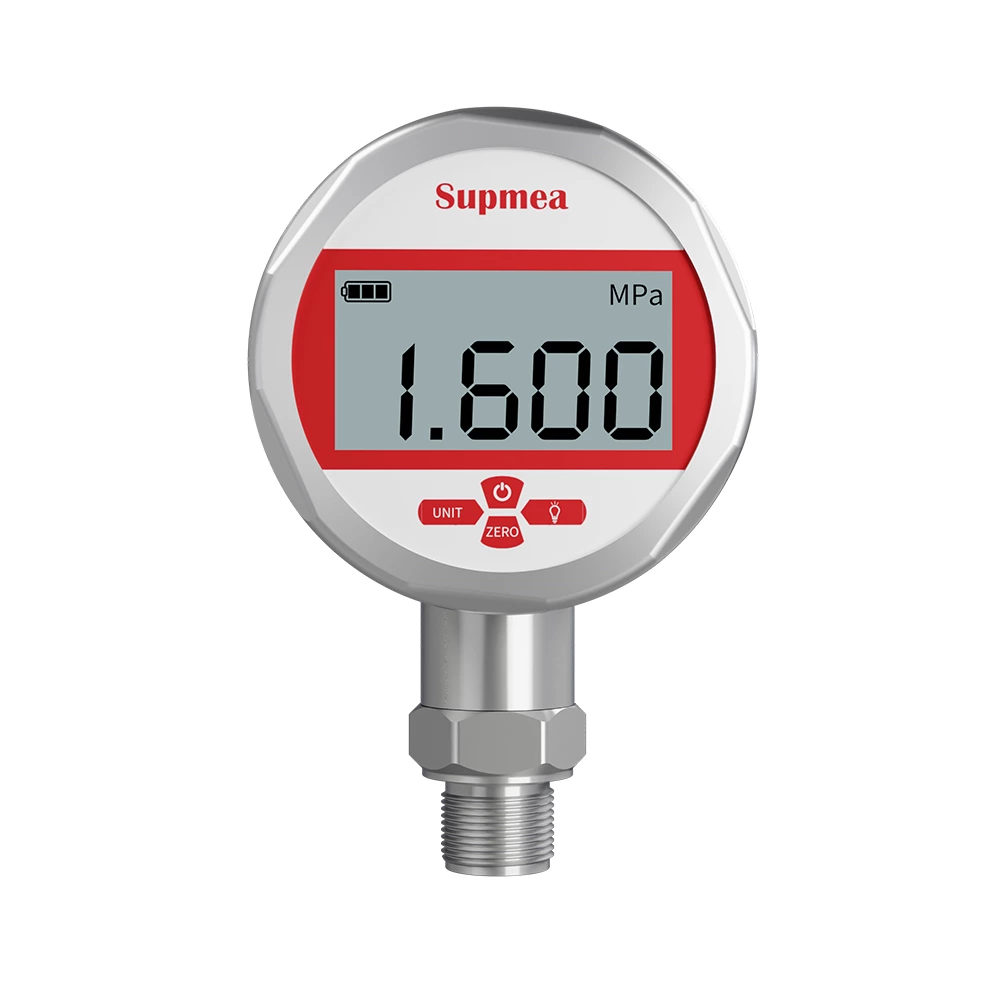

SUP-Y290 Digital pressure gauge

High-precision digital pressure gauge with built-in high-accuracy pressure sensor, capable of accurately displaying real-time pressure readings. Features high precision and excellent long-term stability. Equipped with segmented LCD display, offering functions such as zero reset, backlight, power on/off, unit conversion, and filter constant adjustment.

Characteristics

Range: -0.1~ 0 ~ 60MPa

Accuracy: 0.5%/0.25%

Power supply: 3V Battery powered



  • Specification
 Product  Pressure gauge
 Model SUP-Y290
 Measure range -0.1···0···60MPa
 Accuracy 0.25%/0.5%
 Overload capacity (0.035–10) MPa: 150% FS (10–60) MPa: 125% FS
 Long-term stability 0.2% FS/year
 Sampling frequency 1 time per second
 Compensation temperature (-10–70)°C
 Power Supply 3V (2 AA batteries)
 Measured medium Air, water, oil, and other media that do not corrode stainless steel and fluorocarbon rubber
 Medium temperature (-20–85)°C
 Operating temperature (-10–70)°C
 Storage environment (-20–80)°C
  • Introduction

High-precision digital pressure gauge with built-in high-accuracy pressure sensor, capable of accurately displaying real-time pressure readings. Features high precision and excellent long-term stability. Equipped with segmented LCD display, offering functions such as zero reset, backlight, power on/off, unit conversion, and filter constant adjustment.

Digital pressure gauges are widely used in hydropower, water supply, petroleum, chemical, mechanical, and hydraulic industries for on-site measurement, display, and control of pressure in non-corrosive media such as gases, water, and oil.



  • Description

The core component of a digital pressure gauge is the pressure sensor, which operates based on how changes in pressure affect the sensor's resistance or voltage. Under pressure, the internal sensor detects the force, which is then converted by a transducer into a corresponding electrical signal. This signal is processed by digital circuitry and displayed on the screen.



  • Feature

• Simple operation, easy installation.

• One-touch zero reset for convenient use.

• Features temperature compensation with low thermal drift coefficient for enhanced measurement accuracy.

• Multiple measurement units with one-touch switching for hassle-free operation.

• Displays up to 1.1 times overload range with peak hold function for enhanced reliability.

• Four-and-a-half digit segment display ensures accurate and intuitive readings.

• Graphical battery level indicator with percentage bar graph for pressure values.

• Premium 304 stainless steel housing and connectors for shock resistance and durability.

• White backlight for easy nighttime viewing.
