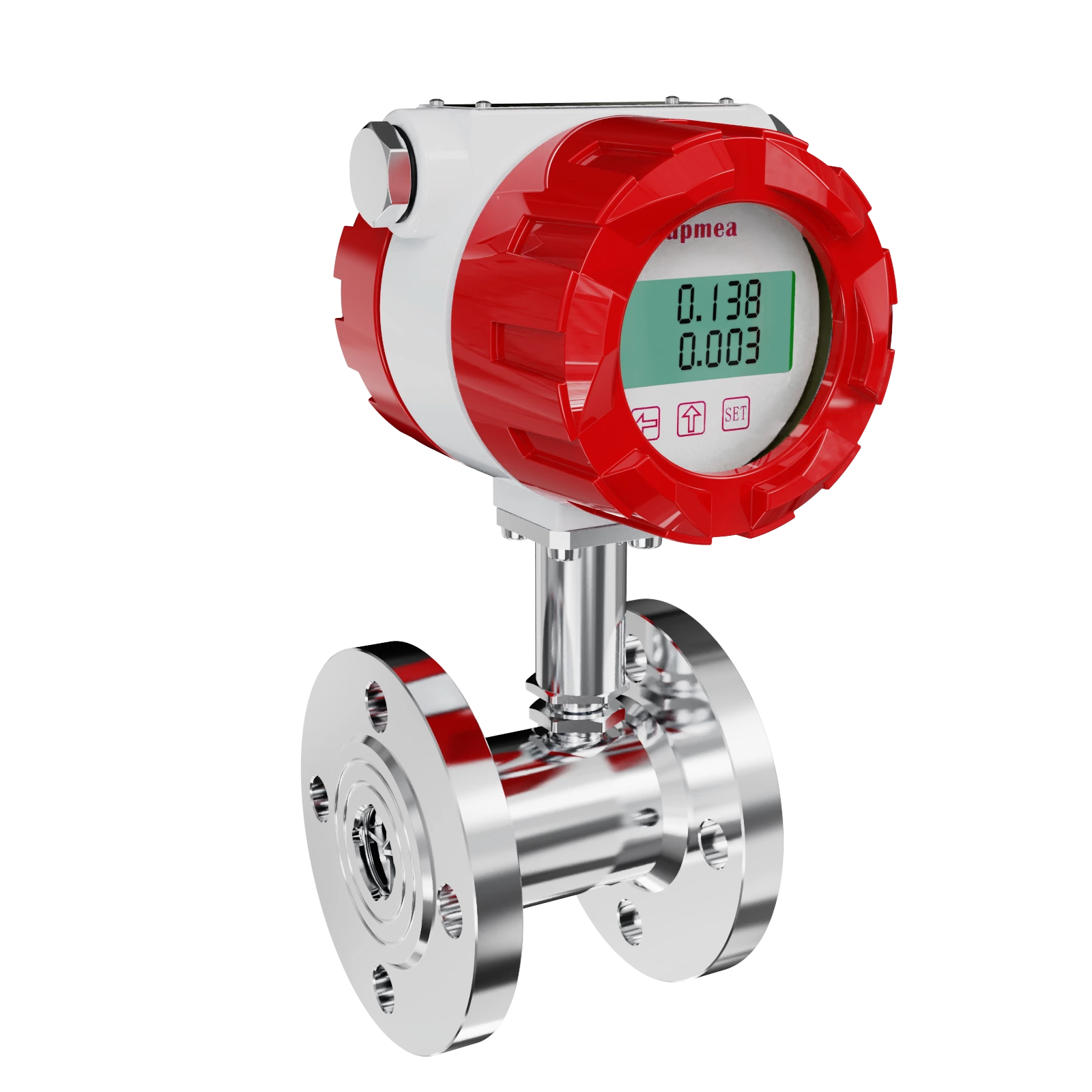

Turbine Flow Meters: Precision Measurement for Clean Energy and Critical Transfers
High-accuracy liquid and gas measurement for LNG, SAF, and hydrocarbon applications
As global energy systems transition toward cleaner fuels and tighter resource accountability, turbine flow meters continue to serve as critical instruments for custody transfer and process control applications.
From liquefied natural gas (LNG) terminals to sustainable aviation fuel (SAF) blending facilities and petrochemical plants, these meters deliver the precision required for trade transactions, regulatory compliance, and operational efficiency.
Operating Principle
Turbine flow meters measure volumetric flow rate by detecting the rotational velocity of a turbine rotor suspended in the fluid stream. The rotational speed is directly proportional to flow velocity, with electronic pickups converting mechanical motion into standardized output signals.
Key Performance Characteristics
- Typical accuracy: ±0.5% of reading for liquids, ±1% for gases
- Repeatability: ±0.1% under calibrated conditions
- Optimal for: Clean, low-viscosity fluids (≤50 cSt)
Technical Advantages
Custody Transfer Accuracy
Certified to API MPMS Chapter 5 and OIML R117 standards for fiscal metering, with long-term stability that minimizes recalibration requirements in hydrocarbon measurement applications.
Dynamic Response Capability
Response times under 100 milliseconds enable real-time flow control in fuel loading systems, batch processes, and other applications requiring rapid measurement feedback.
Robust Construction
Stainless steel (316L) or Hastelloy components withstand pressures to 10,000 psi (690 bar) and temperatures from -200°C to +400°C in demanding hydrocarbon service.
Cost Efficiency
Lower initial cost and minimal maintenance requirements compared to alternative technologies like Coriolis meters, with typical service intervals of 3-5 years in clean fluid applications.
Industry Applications
LNG and Hydrocarbon Custody Transfer
With Europe diversifying gas imports and Asia's LNG demand growing, turbine meters ensure measurement accuracy in billion-dollar energy transactions.
- Cryogenic designs for LNG service (-162°C)
- Dual-pulse outputs for redundant verification
- Compliant with API, ISO, and OIML standards
Keywords: turbine flow meter LNG, custody transfer flow meter hydrocarbon
Aviation Fueling Systems
Supporting the aviation industry's transition to sustainable fuels, turbine meters handle both conventional jet fuels and SAF blends with viscosity compensation.
Advanced models feature automatic viscosity correction algorithms to maintain ±0.35% accuracy across varying SAF compositions during refueling operations.
Chemical Process Optimization
In pharmaceutical and specialty chemical production, turbine meters provide ±0.25% repeatability for precise batching of solvents and reactants, reducing material waste and improving batch consistency.
Selection Guidelines
| Parameter | Recommendation |
|---|---|
| Fluid Viscosity | Optimal for 0-20 cSt; usable to 50 cSt with reduced accuracy |
| Particulate Content | 100 micron filtration required; avoid fibrous materials |
| Installation | 10D upstream / 5D downstream straight runs minimum |
| Calibration | NIST-traceable for custody transfer; annual verification |
Maintenance Best Practices
Filtration Systems
Install duplex filter systems with 100 micron stainless steel mesh elements, allowing for inline maintenance without process interruption. Regular differential pressure monitoring indicates filter condition.
Flow Condition Management
Maintain minimum 1 bar overpressure to prevent cavitation. Use flow conditioners when quick-closing valves are present. For pulsating flows, consider accumulator installation.
Calibration Protocol
For custody transfer applications, perform annual recalibration using master meters or provers. Process control applications may extend to 2-3 year intervals with intermediate verification checks.
Technology Advancements
Modern turbine flow meters incorporate innovative features to address evolving industry requirements:
- Digital signal processing for enhanced diagnostics and reduced drift
- Hastelloy C-276 construction for corrosive biofuels and chemicals
- WirelessHART and Modbus TCP/IP outputs for Industry 4.0 integration
