DP Flow Meters: Proven Technology for Modern Industrial Needs
Reliable differential pressure flow measurement for extreme conditions and cost-sensitive applications
Differential pressure (DP) flow measurement, based on Bernoulli's principle, remains a cornerstone technology in process industries. Modernized with advanced primary elements and smart instrumentation, DP systems continue to deliver reliable performance in demanding applications.
From legacy facility retrofits to extreme-condition processes, today's DP flow meters combine proven physics with contemporary enhancements for accurate, cost-effective flow monitoring.
Measurement Principle

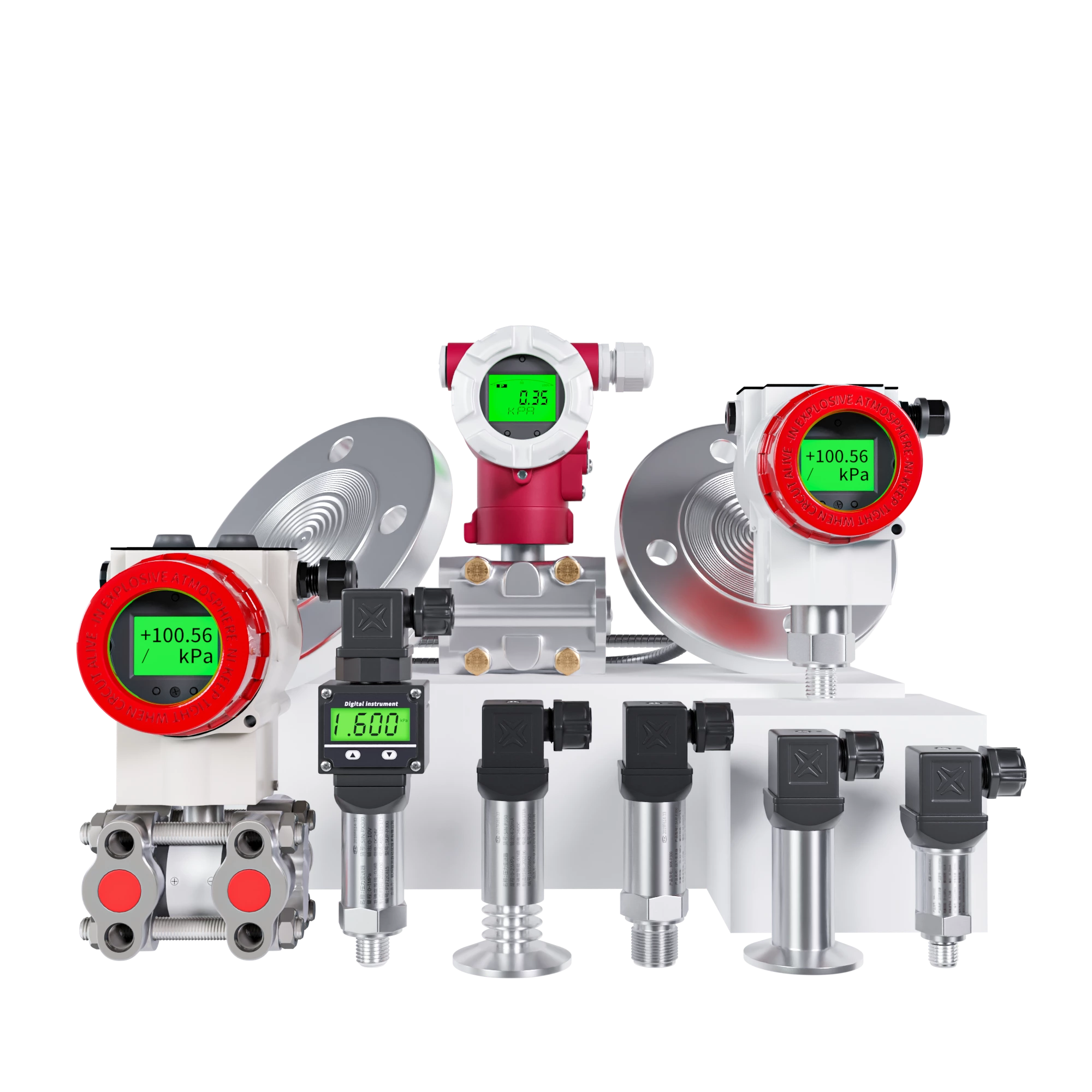

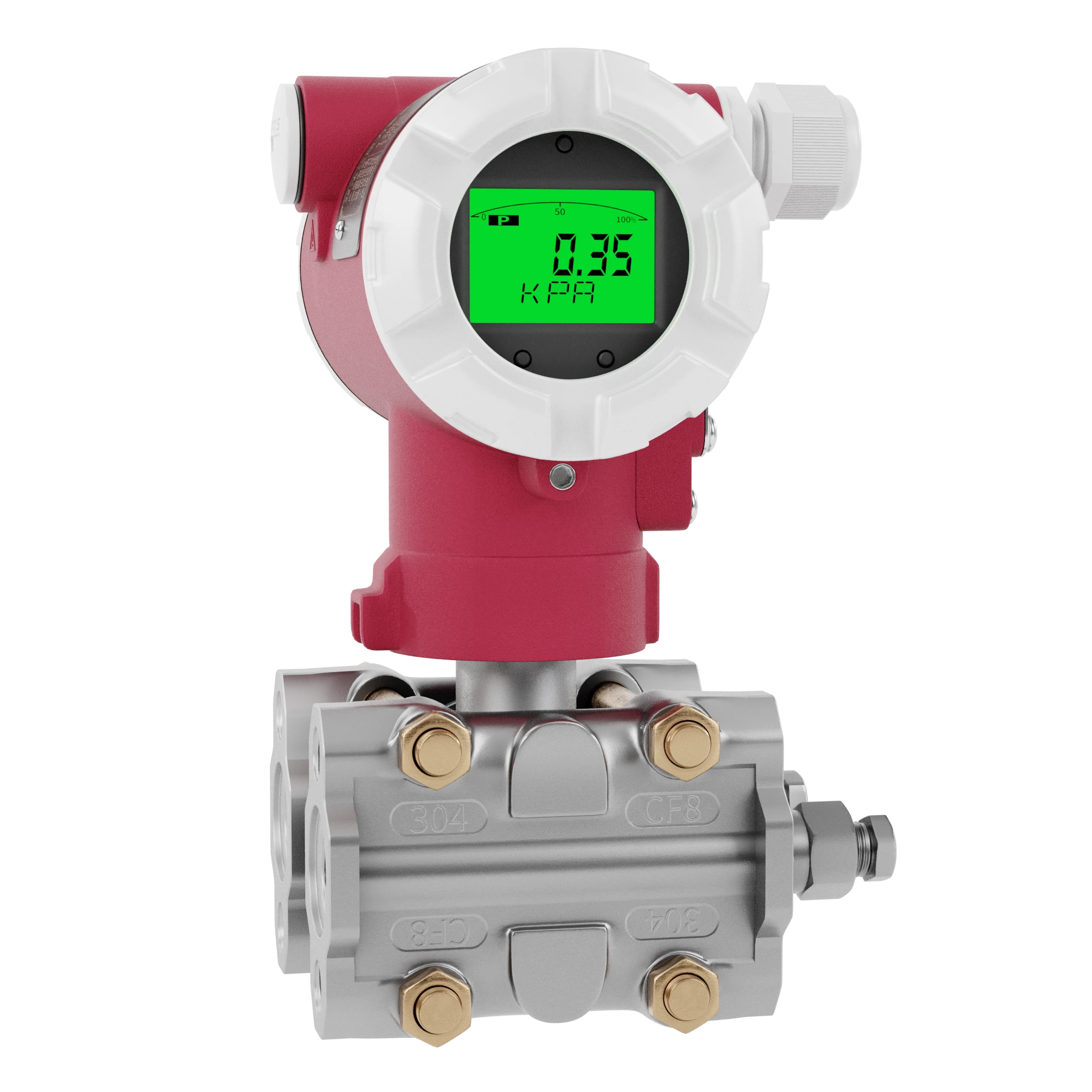

A restriction in the pipeline (primary element) creates a pressure differential proportional to the square of the flow rate. Paired with a high-accuracy DP transmitter, this established method provides standardized measurement traceable to ISO 5167 and other international standards.
Key Characteristics
- Typical accuracy: ±0.5% to ±2% of full scale
- Turn down ratio: 4:1 to 10:1 depending on element
- Pressure rating: Up to ANSI 2500 (420 bar)
Technical Advantages
Standardized Reliability
Internationally recognized measurement method (ISO 5167, ASME MFC-3M) ensures consistent performance across global installations with extensive historical data for validation.
Extreme Condition Capability
Specialized materials (Hastelloy, ceramic liners) and designs withstand temperatures to 800°C (1472°F), pressures to 420 bar (6000 psi), and highly abrasive flows in mining, power generation, and chemical processing.
Primary Element Flexibility
Multiple restriction options balance accuracy, pressure loss, and durability needs - from traditional orifice plates to modern V-cones and Venturi tubes.
Cost-Effective Solution
Lower total cost of ownership compared to many alternatives, particularly for large pipe sizes or applications where ±1-2% accuracy is acceptable.
Industrial Applications
Legacy Facility Modernization
Upgrading traditional orifice plates to advanced primary elements (V-cones, wedge meters) improves accuracy by 30-50% while reducing maintenance in aging refineries and power plants.
- Pressure loss reduction up to 75% versus orifice plates
- Minimal straight-run requirements for space-constrained retrofits
- Compatible with existing DP transmitter installations
Keywords: retrofit flow measurement solution, orifice plate alternatives
High-Temperature & Abrasive Service
Specialized Venturis and hardened nozzles provide reliable measurement in:
- Catalytic cracking units (650°C+/1200°F+)
- Superheated steam lines
- Slurry flows in mining and mineral processing
Keywords: high temperature DP flow meter
Utility & Ventilation Systems
Traditional DP systems offer economical measurement for cooling water, compressed air, and HVAC applications where ±1-2% accuracy meets requirements at 30-50% lower cost than alternatives.
Primary Element Selection Guide
| Type | Pressure Loss | Accuracy | Erosion Resistance | Straight Run | Cost |
|---|---|---|---|---|---|
| Orifice Plate | High | ±1-2% | Low | 20D/10D | Low |
| V-Cone | Low | ±0.5% | High | 0-3D/0-1D | Medium |
| Venturi | Low | ±0.5-1% | Medium | 5D/2D | Medium-High |
| Wedge | Medium | ±1% | High | 5D/2D | Medium |
Modern System Enhancements
Today's DP flow measurement systems incorporate advanced features:
- Smart DP transmitters with ±0.04% accuracy and advanced diagnostics
- Remote seal systems for extreme temperature applications
- WirelessHART and Modbus integration for IIoT connectivity
