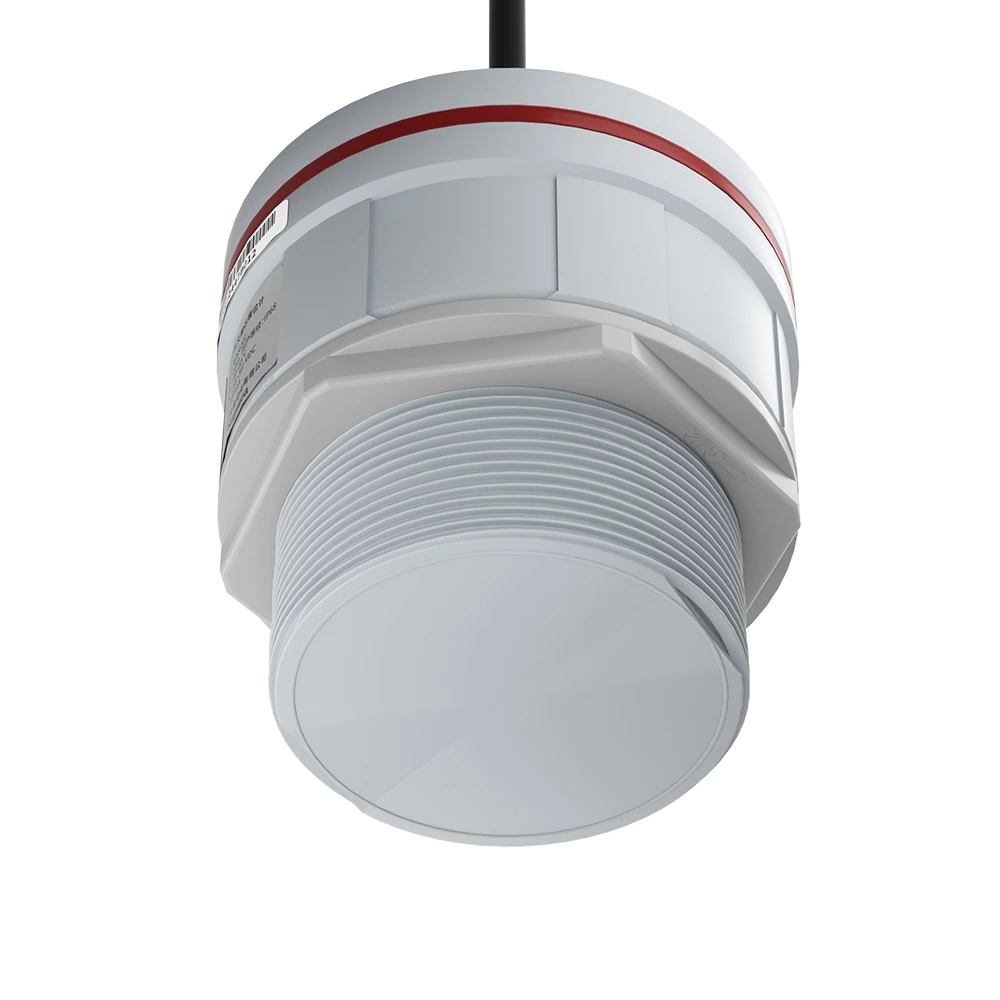

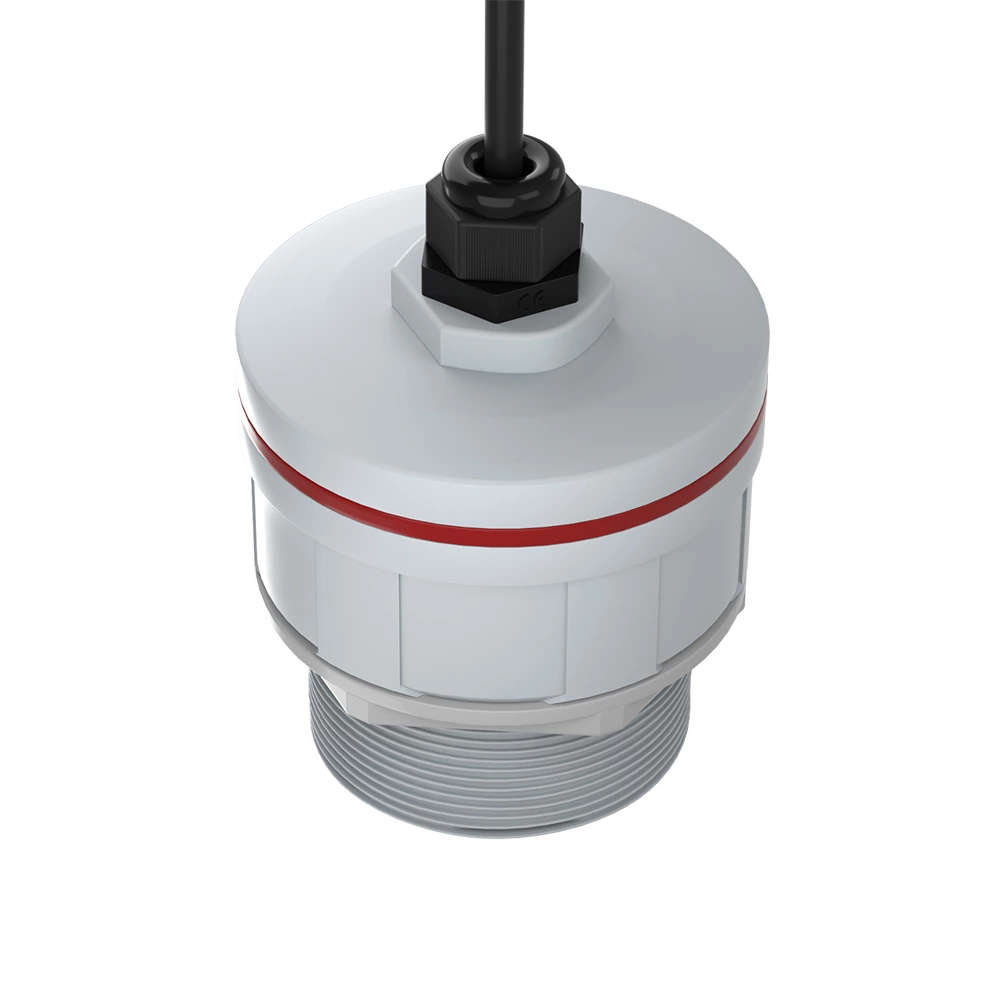

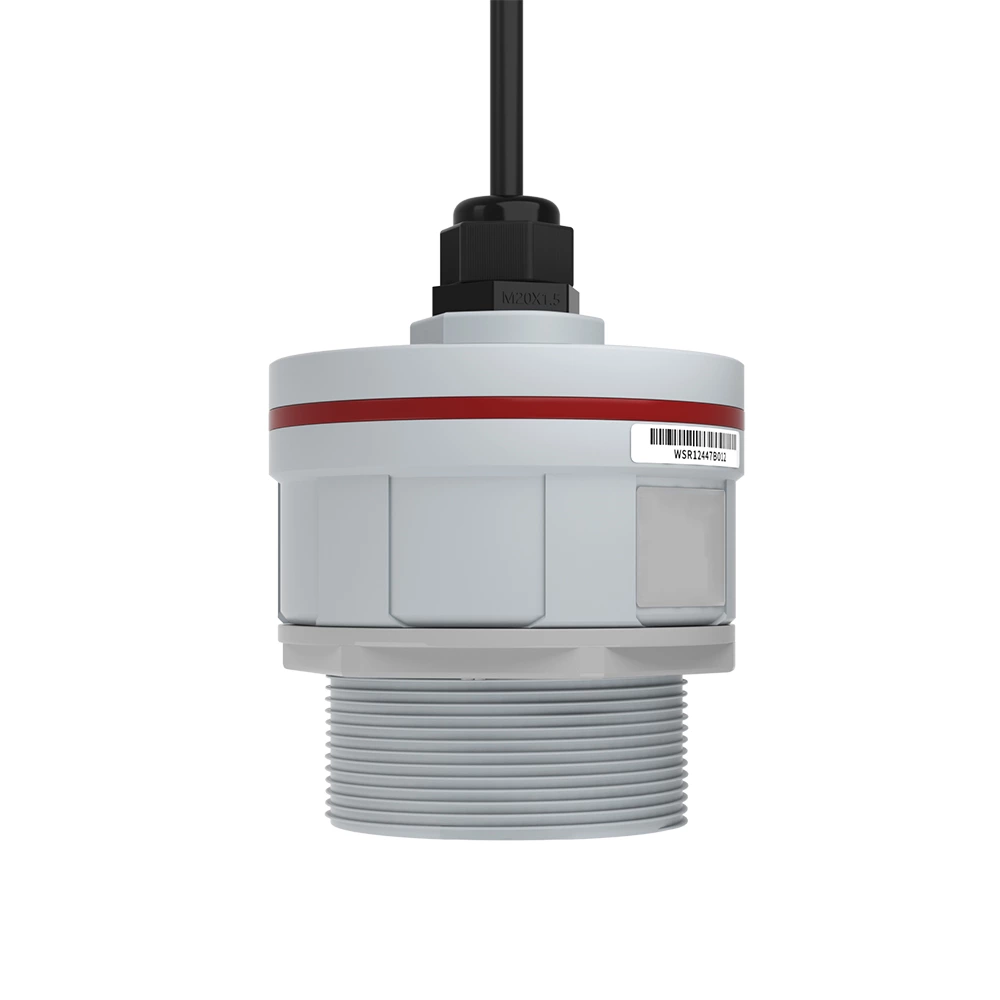

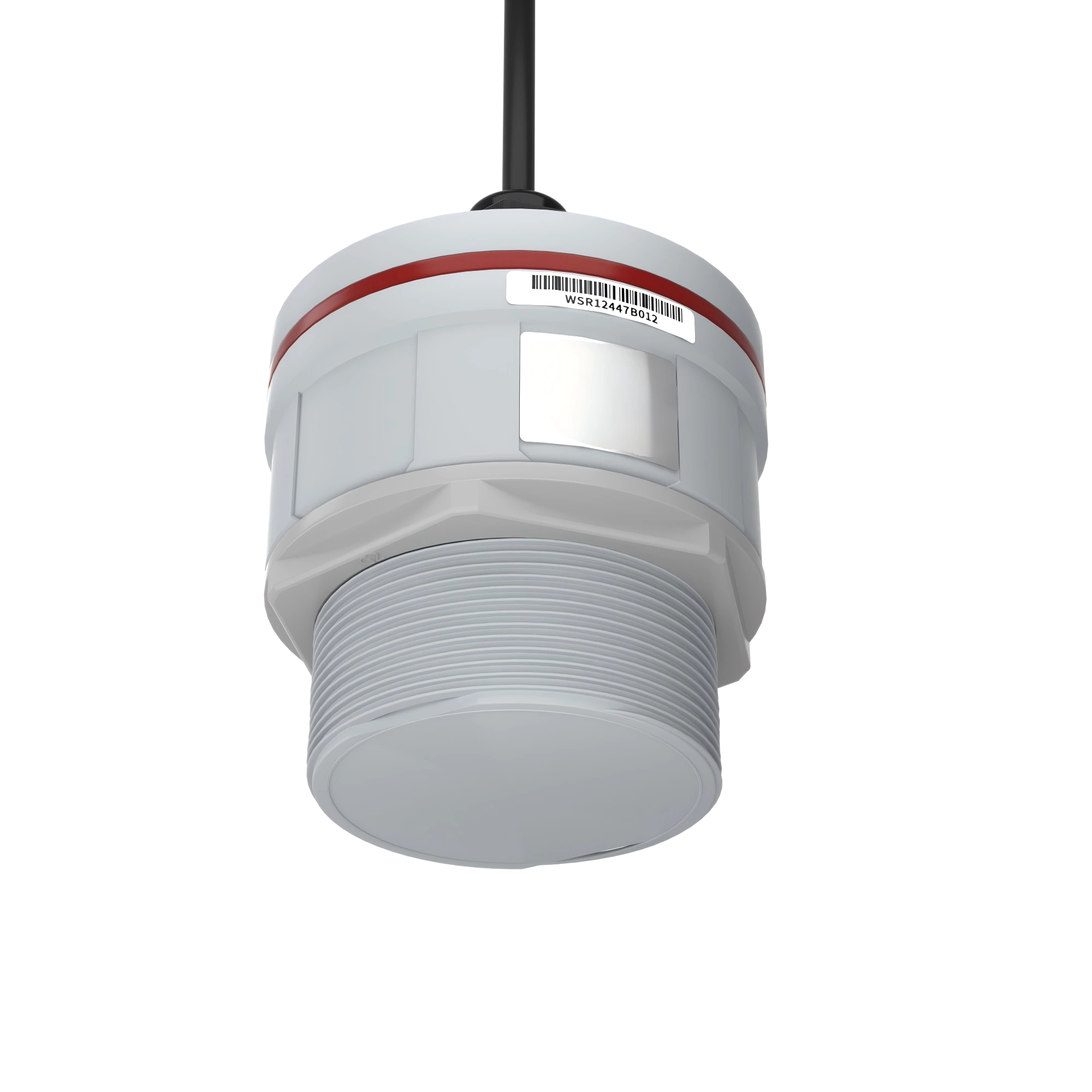

WSR201 60G Radar level meter

The radar level meter has a long detection distance and low beam energy, and can be installed in various metal and non-metal containers or pipelines. It is suitable for occasions where dust, water mist, inert gas and steam exist. The radar level meter has no harm to the human body and the environment, and has the advantages of not being affected by the specific gravity of the medium, not being affected by the change of the dielectric constant, and not requiring on-site calibration.

Characteristics

Measure range: 5m / 10m / 15m

Blocking distance: ≤0.15m

Beam angle: 6°

Accuracy : ±5mm(5m/10m) ; ±0.1%FS(15m)

Introduction

With high-frequency microwave radar technology, the 60G radar level transmitter is designed for real-time monitoring and precise measurement of hydrological information. Compared to traditional hydrological monitoring methods, radar technology offers benefits such as high measurement accuracy, strong real-time performance, and broad applicability. It features low beam energy, ensuring safety to humans or the environment. Additionally, this product, requiring no on-site calibration, is also unaffected by changes in density, and dielectric constant of the medium to be measured. All make it ideal for hydrological monitoring in natural waters such as rivers, reservoirs, lakes, irrigation channels, and waterways.

Features

  • 60GHz PCR technology for higher resolution, better accuracy, and more stable performance.

  • Detection up to 15m with a minimum blocking distance of 0.15m.

  • The narrow beam angle and concentrated energy offer strong anti-interference capability, high measurement accuracy, and excellent reliability.

  • Effective working in harsh environments; unaffected by light, rain, snow, dust, or water mist.

  • Multiple output circuit interfaces are available.

  • Low radar transmission power ensures safety for humans and the environment.

  • Bluetooth commissioning via phone makes on-site maintenance quick and easy.

 Product  Radar level meter
 Model WSR201
 Measure range 5m / 10m / 15m
Modulation waveform PCR
Transmission frequency 57GHz~64GHz
Blocking distance ≤0.15m
Beam angle
Accuracy ±5mm(5m/10m) ; ±0.1%FS(15m)
Resolution 1mm
Refresh rate ≥500ms
Ingress protection IP68
Transmission output (4~20) mA
Wireless communication Bluetooth
Communication output RS485,Modbus-RTU
Power supply 2-wire:(18~36) VDC  ;  4-wire:(9~36) VDC
Supply current ≤25mA, 24VDC
Power consumption 2-wire:≤1W  ; 4-wire:≤1.9W
Dielectric constant ≥3
Process pressure (-0.1~0.3) MPa
Process temperature (-40~85)℃

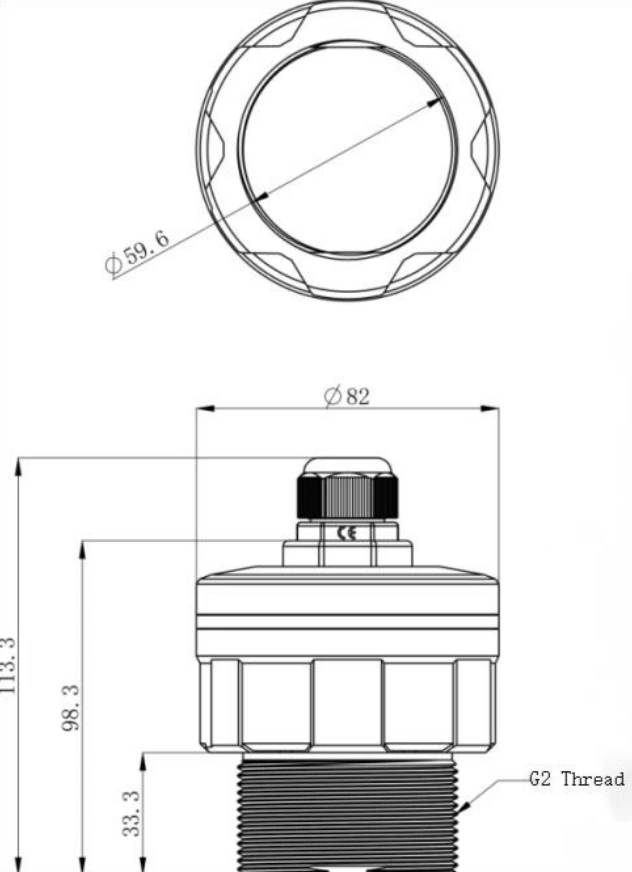

  • Dimension

Radar level measurementunit:mm
