SUP-pH6002 Glass-Body pH Electrode for Laboratory and Industrial Usage

The SUP-pH6002 glass-body pH electrode is a precision sensor designed to measure the acidity or alkalinity (pH) of liquids, featuring a durable glass outer tube that houses a sensitive glass membrane to detect hydrogen ion concentrations accurately.

This glass surface pH electrode is widely utilized across diverse industries, including wastewater treatment, mining and smelting, papermaking, paper pulp, textiles, the petrochemical industry, semiconductor electronic processes, and downstream biotechnology engineering, making it a versatile solution for monitoring process fluids.

Characteristics

· Measurement Range: Measures pH from 0 to 14 with accuracy

· Zero Potential Point: Zero point at Eo=7pH, ensuring precise baseline readings

· Durable Design: Glass outer tube makes it resistant to harsh chemicals and temperatures

· Temperature Compensation: Compensation for enhanced accuracy across varying temperatures

· Flexible Wiring: A standard 5-meter wire is included with optional lengths for versatility

  • Introduction

The SUP-PH6002 glass-body pH electrode is a precision sensor designed to measure the acidity or alkalinity (pH) of liquids, ideal for various industrial applications. Encased in a durable glass outer tube, it features a sensitive glass membrane that accurately detects hydrogen ion concentrations, ensuring reliable performance.

The SUP-PH6002 is widely used across industries, including wastewater treatment for effluent monitoring, mining and smelting for process control, papermaking and paper pulp for quality assurance, textiles for dye optimization, petrochemicals for safety, semiconductor processes for clean production, and biotechnology engineering for research support. Its robust design withstands harsh chemicals and temperatures, making it a versatile solution.

It comes with a standard 5-meter wire (optional lengths available) and meets international standards, offering a cost-effective, durable option for accurate pH measurement in demanding environments.

  • Specification

  Product    Glass pH sensor
  Model   SUP-PH6002
  Measurement range   0 ~ 14 pH
  Zero potential point   Eo=7pH
  Electrode size   φ12x120, 225, or other sizes
  Thread  PG13.5, international standard
  Electrode outer tube material   glass
  Wire   5 m(standard),optional
  Temperature compensation resistance   Pt100, Pt1000, 2.252K, 10K, 22K, etc.

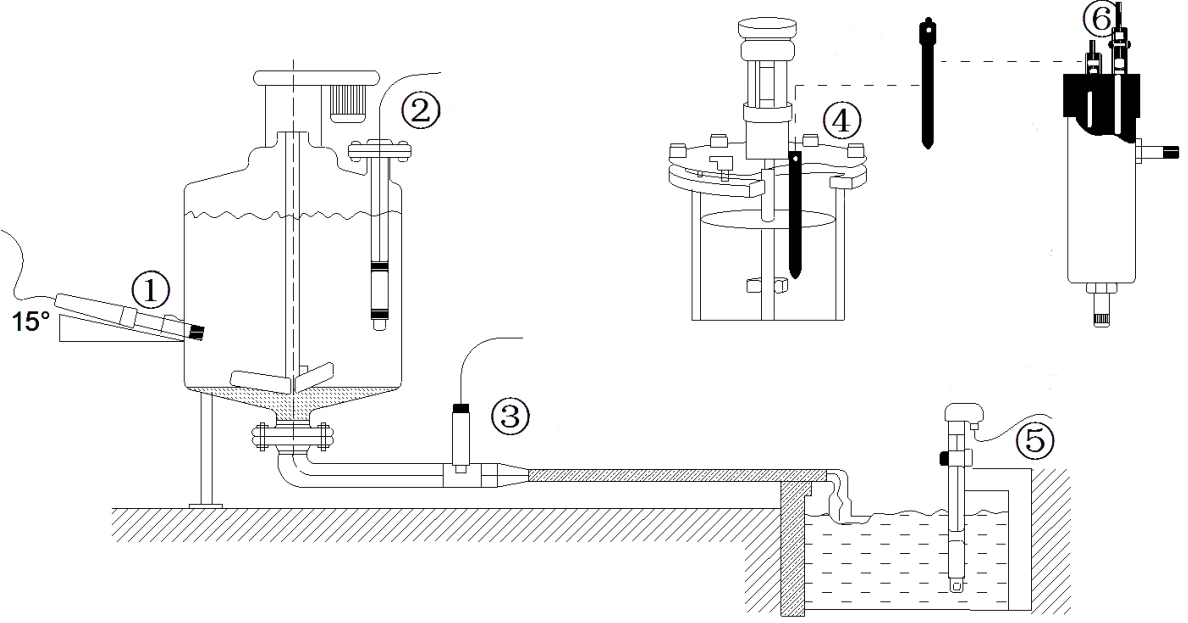

  • Installation

SUP-pH6002 Glass-Body pH Electrode for Laboratory and Industrial Usage

  • Calibration

The SUP-PH6002 glass-body pH electrode utilizes a precise three-point calibration method to ensure accurate pH measurements for industrial use. The process starts with a pH 4.00 pH calibration solution as the initial reference, followed by pH 6.86 and pH 9.18 buffer solutions to determine the electrode's slope with high reliability. These standard buffers cover the 0-14 pH range, aligning with international norms.

Calibration points are adjustable via the meter's interface, offering flexibility to suit specific needs. This method, supported by Pt100 or Pt1000 temperature compensation, corrects for environmental variations. It is vital for industries like wastewater treatment, mining, papermaking, textiles, petrochemicals, semiconductors, and biotechnology, where precise pH control ensures compliance and stability.

ph and orp solutions
