Choose the Right Thread Type for Industrial Instruments
A Practical Engineer's Guide to Leak-Free Connections in Global Instrumentation Systems
In industrial instrumentation, selecting the right thread type is critical to ensuring leak-proof, pressure-resistant, and standard-compliant installations. Whether you're connecting pressure transmitters, valves, or flow sensors, choosing between metric (ISO), BSP (British Standard Pipe), or NPT (American National Pipe Threads) can impact system performance and global compatibility.
1. Understanding the Basics: Thread Geometry That Matters
Nominal Diameter
Major outer or inner thread diameter, in mm or inches.
Pitch
Distance between thread crests — fine threads resist vibration, coarse ones are easier to assemble.
Flank Angle
55° for BSP, 60° for metric and NPT — key to stress distribution and sealing.

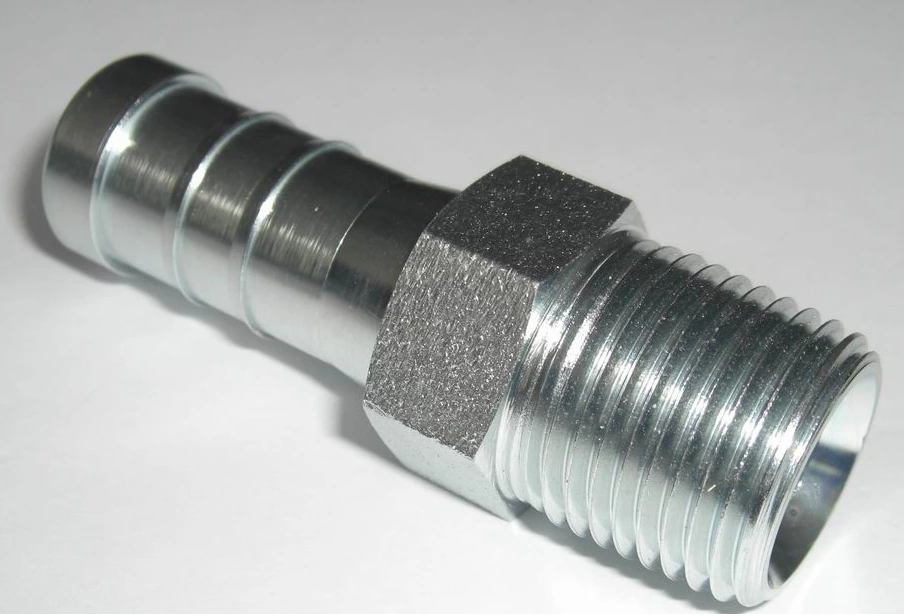

Taper vs. Parallel
Tapered threads (e.g., NPT, BSPT) self-seal; parallel threads (e.g., G, M) need O-rings or sealant.
2. Thread Types Compared
Metric Threads (ISO)
Format: M20×1.5
Application: Non-pressure fittings, sensor housings, electrical conduit.
Regions: Widely used in China, EU, and non-English-speaking countries.
Precise, cost-effective, easy to machine.
Requires additional sealing elements.
British Standard Pipe (BSP)
Types: G (parallel), R/Rc (tapered)
Application: G1/4″ for pressure transmitters, R1/2″ in steam lines.
Regions: UK, EU, Commonwealth countries.
BSPT offers reliable seal in gas/steam lines.
G threads not suitable for high-vibration systems without locking/sealants.
NPT Threads (ASME B1.20.1)
Format: 1/2″ NPT
Application: Oil & gas, chemical plants, API/ASME systems.
Regions: North America, Latin America, Middle East.
Self-sealing, ideal for high-pressure systems.
Incompatible with BSP/ISO without adapters.
3. How to Choose – Practical Selection Guide
| Use Case | Recommended Thread | Why |
|---|---|---|
| Low-pressure air (≤10 bar) | G + O-ring | Easy assembly and rework |
| High-pressure gas (≥50 bar) | NPT or BSPT | Metal-to-metal seal, no gaskets needed |
| Corrosive fluids | ISO (M) + PTFE | Compatible with chemically inert fittings |
| Vibration-prone machinery | ISO fine thread/NPT | Resists loosening over time |
4. Avoid These Common Mistakes
- Don't mix thread standards – use certified adapters (e.g., G1/4″ to NPT 1/4″).
- Check taper vs. parallel before installation.
- Use correct sealant: Teflon tape for G threads, thread paste for NPT.
5. Future-Proofing Your Thread Choices
Composite threads
PEEK-coated metal threads for corrosive media
Smart threads
Sensor-integrated designs in IIoT systems
Digital standards
ISO/TS 19650 promotes cross-industry compatibility
Final Tip: Match Thread Type to Application and Region
Don't compromise on thread compatibility. For seamless international operations, choose thread types that meet local standards, media conditions, and mechanical demands. Always refer to manufacturer datasheets and standards like ASME B1.20.1, ISO 228, or GB/T 196.
